SINGER W711 User Manual
Page 3
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
FEATURES AND PARTS
(Front View)

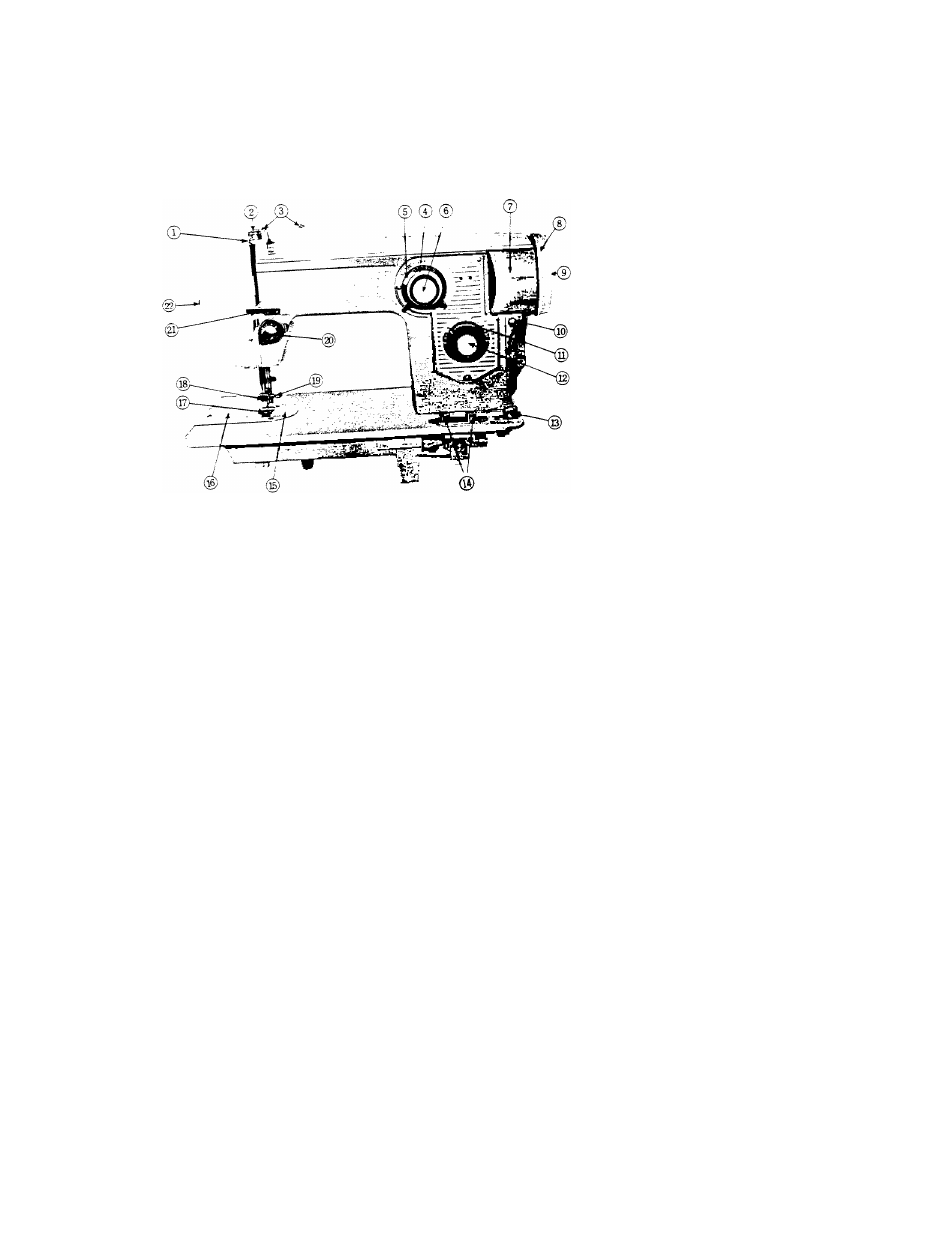

Fig. 1
1. Thread Take-up Lever
2.
Pressure Release
(Darning)
3. Arm Thread Guides
4. Zigzag Stitch Width Dial
5. Zigzag Stitch Width Lock
6
Stitch Width Control Knob
7 Bobbin Winder Cover
8
. Hand Wheel
9. Clutch
10. Cover Release Button
11. Stitch Length Control
12. Push Button Reverse
13. Bobbin Winding Tension
14. Drop Feed Buttons
15.
Needle Plate
16.
Cover
Plate
17. Presser Foot
]_
0
^ Presser Foot Thumb Screw
19. Needle Clamp
20.
Tension Regulator
21. Thread Bar and Guide
22. Sew Lite Switch
