SINGER W910 - Manual (Page 13)

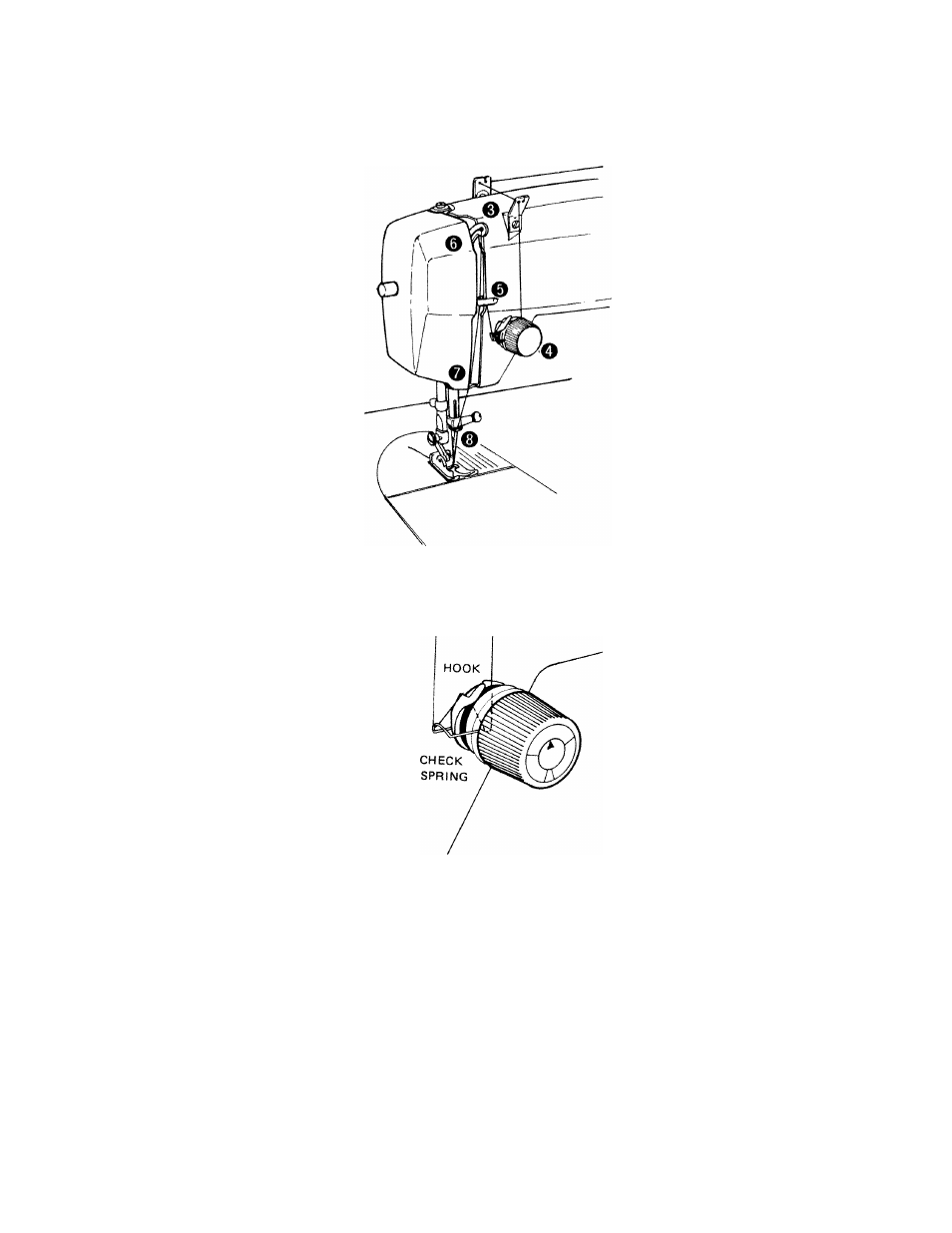

UPPER THREADING
1. Turn the hand wheel toward
you to raise the take-up lever
to its highest position.
2. Place a spool of thread on the
spool pin.
3. Lead the thread through the
top thread guides.
4. Down and between the tension
discs, from right to left.
5. Draw the thread up through the
check-spring and with a slight
tug into the hook.
6 . Up behind the front thread
guard and through the eye of
take-up lever from right to left.
7. Lead thread down through the
thread guide at the bottom of
the threading slot after drawing
thread behind the front thread
guard then, through the needle
bar thread guide.
8 . Thread the needle FROM
FRONT TO BACK, drawing it
through about 3 or 4 inches.
Hold the end of the upper
thread loosely and turn the hand
wheel toward you until the
needle goes all the way down
end comes back up. A thread
loop will form over the upper
thread which then can be pulled
out straight. Place both thread
ends under presser foot and
draw toward the back of the
machine, leaving both threads
three or four inches long.
In case of twin needle sewing, place
two spools of thread, matching or
contrasting in color, one on each
spool
pin, lead both threads
through top thread guides, bring
threads down and pass one thread
between the back discs and the
other between the front discs, then
treat both thread as one until
threading each thread through each
needle eye of twin needle.
