TROUBLE CHART
Probable Cause
Thread or lint in race way
Correction
1,- With take-up lever in highest position,
tilt head back on hinges and remove
bobbin case.
\

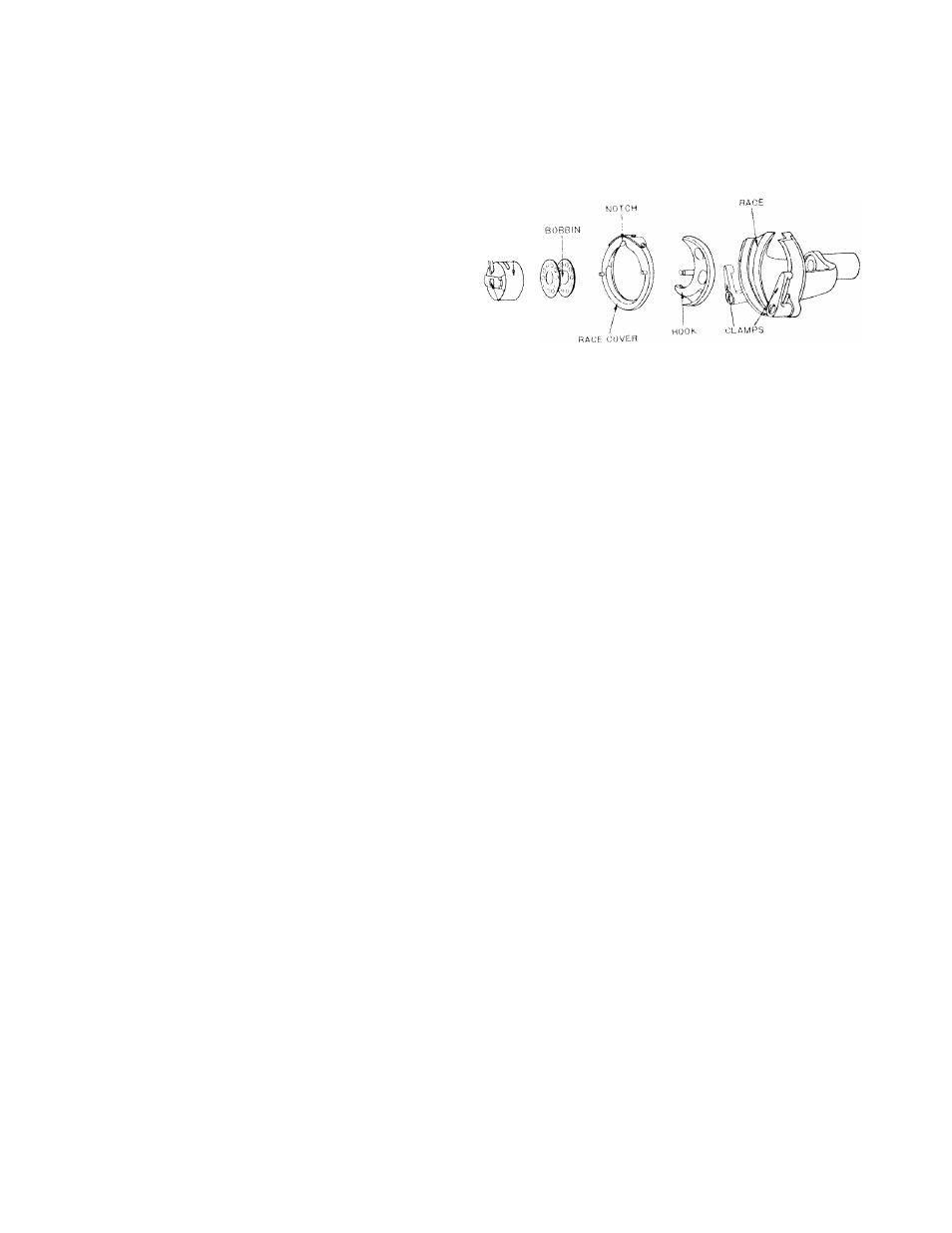

L A r C H
2. - Turn clamps downward and remove race
cover.
3. “ Remove hook.
4. ^ Clean thread and lint from all parts, in
cluding race.
5. - Run a drop of oil along rim of hook.
6. ^ Replace hook, then race cover. Snap
clamps into place.
7. ^ Grasp threaded bobbin case by latch
and replace, fitting tongue into notch of
race cover.
