To Oil the Machine
Use "TYPE B" or "TYPE D" OIL, sold by Singer Sewing Machine
Company. For description of these oils, see Inside front cover
of this book.
The machine should be oiled at the places designated by un­
lettered arrows In Figs. 2 to 6, and when In continuous use it
should be oiled at least twice a day.

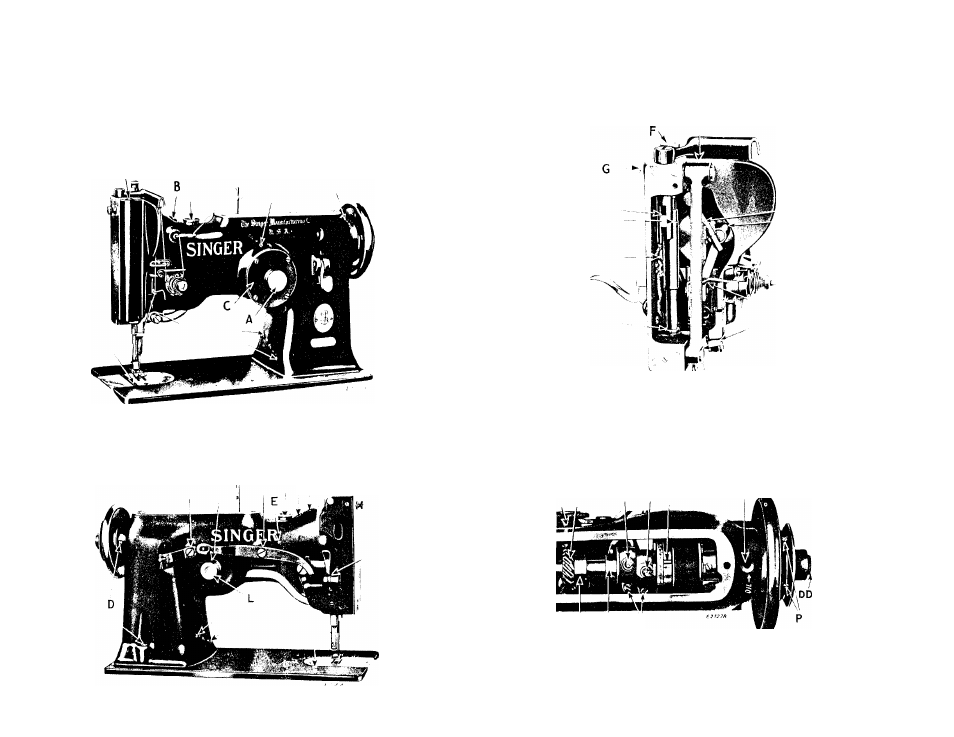

Fig. 2. Front View of Machine, Showing Oiling Points
Slip the belt off the machine pulley, turn the machine back
on Its hinges and apply oil to the points shown In Fig. 6, then
bring the machine forward Into place.
H i^a
5
Remove the face plate and apply oil to the places Indicated
In Fig. 4, then replace the face plate.
О ' ■*'
V t r f / / . n o
Fig. 4. Face Plate Removed, Showing Oiling Points
Turn back the cap at the top of the machine, and apply oil to
the places shown In Fig. 5.
Fig. 3. Oiling Points and Adjustments at Rear of Machine
M N О
Fig. 5. Oiling Points and Adjustments at Top of Machine
