о
13

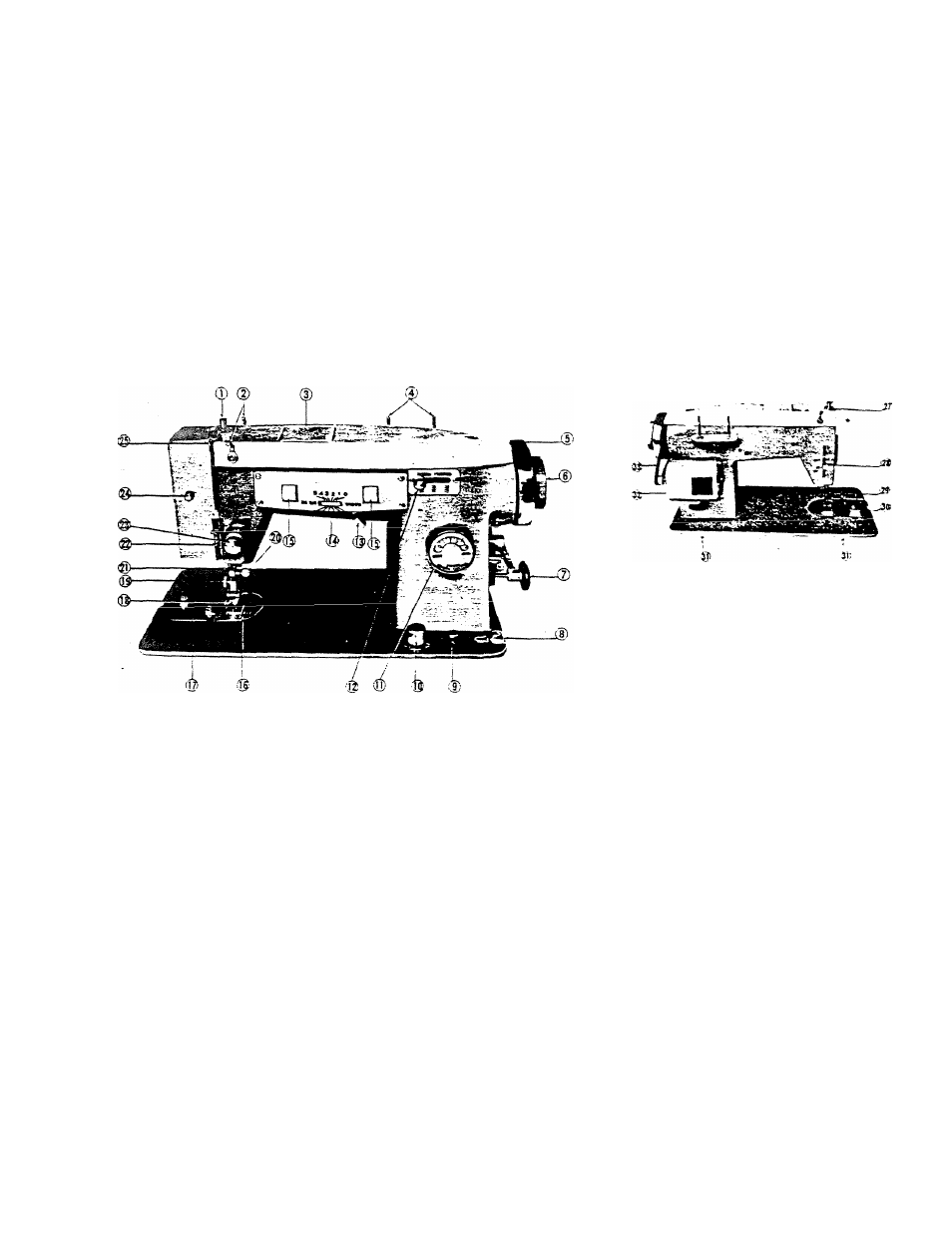

Know Your Machine - - Its Functional Controls and Components
>
1 Presser Bar
2 Thread Guides
3 Cam Chamber
4 Spool Pins
5 Wheel
6 Wheel Clutch
7 Bobbin Winder
8 Bobbin Wind Tension
9 Reverse Sewing Button
10 Feed Teeth Knob
11 Stitch Length Dial
12 Needle Path Selector
13 ZZ Stitch Width Lever
14 ZZ Stitch Width Panel
15 ZZ Width Control Rollers
16 Needle Plate
17 Hinged lift Plate
18 Presser Foot
19 Foot Holding Screw
20 Needle Clamp and Screw
21 Thread Guide to Needle
22 Rectangular Thread Guide
23 Tension Regulator
24 Light Switch
25 Take-Up Lever
26 Pressure Bar
27 Bar Release Ring
28 Presser Foot Lifter
29 Thread Cutter
30 Feed Teeth
31 Cabinet or Portable
Hinge Pin Holes
32 115 Volt Motor-AC or DC
33 Driving Belt
