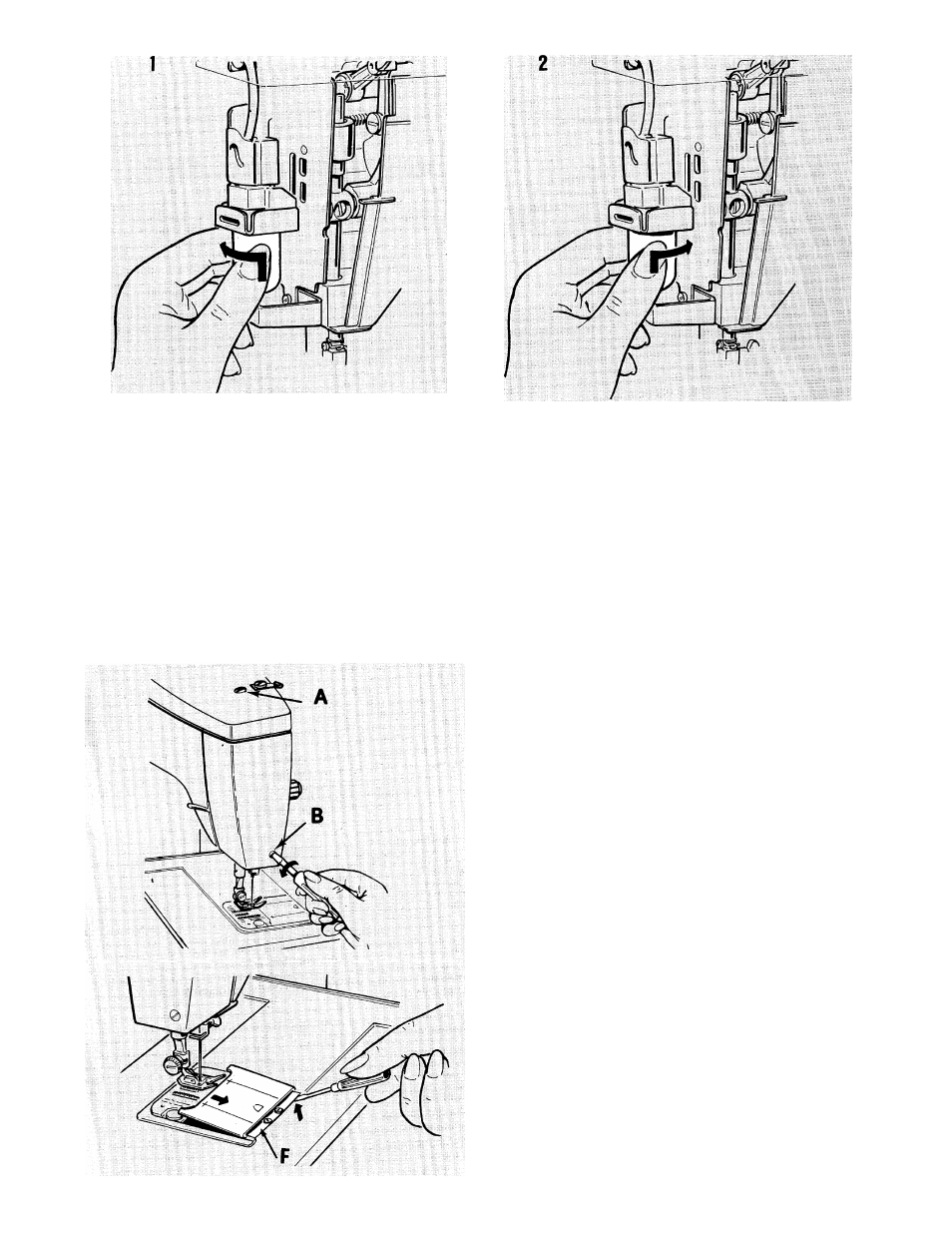

CHANGING THE LIGHT BULB
CAUTION: Before changing light bulb make sure
you have disconnected power line plug from
socket outlet
1. Removing Bulb
• Remove face plate.
• Do not attempt to unscrew the buio.
• Press it up into the socket and at the same
time turn bulb over in direction shown to un
lock the bulb pin and guide out of socket.
CAUTION: This machine is designed to use a 15
watt maximum bayonet base bulb only.
2. Replacing Bulb.
• Press new bulb into socket, with bulb pins
entering slot of socket.
• Turn it over in direction shown to lock bulb in
position.
• Replace face plate.
REMOVING FACE PLATE
Loosen screw A (do not remove it). Loosen face
plate screw B then remove face plate by carefully
pulling it toward you to clear top cover joint .
Replace face plate by sliding it upward to engage
joint under the edge of arm top cover. Tighten
screws A and B.
REPLACING SLIDE PLATE
Place slide plate in slide way with the front
edge close to, but not covering, the retaining
spring F. With a small screwdriver, lift each
end of the spring into each of the side grooves
on the under slide plate. Draw the slide plate
gently toward you to fully engage the spring.
Close slide plate.
71
