STARTING AND USING YOUR NEW AIR CONDITIONER
First make sure the ‘FAN CONTROL* Is set on 'OFF* and then plug the air conditioner In. The power cord receptacle must
match the type shown in the Electrical Requirements sheet.
VENTCONTROL
The ‘VENT CONTROL” on your
new Kenmore Air Conditioner
operates two different functions,
When the arrow points toward
"CLOSE,” the air conditioner is
working its regular operation of
moving and cooling room air. when
the arrow is turned toward the word
■OPEN,*
the air conditioner Is
removing stale air from the room. Air
exhaust canbe increased by moving
the air louvers to a more closed
position To use these functions with
the
least cooling, set 'TEMP.
CONTROL'to ____________________
■TEMP, CONTROL*
The 'TEMP. CONTROL* sets the
degree of room coolness. The
higher the number the cooler the
temperature. Numbers * 1 ' through
"4" will help conserve energy . For
maximum cooling turn the indicator
to the highest number.
FILTER MONITOR (on some
models)
To Check Filter Monitor:
1. SetfancontrolinCONSTANTFAN
*HI* position,
2. If filter needs cleaning, a RED
INDICATOR will appear in the filter
monitor window. A clean filter will
help reduce operating costs and
increase cooling efficiency .

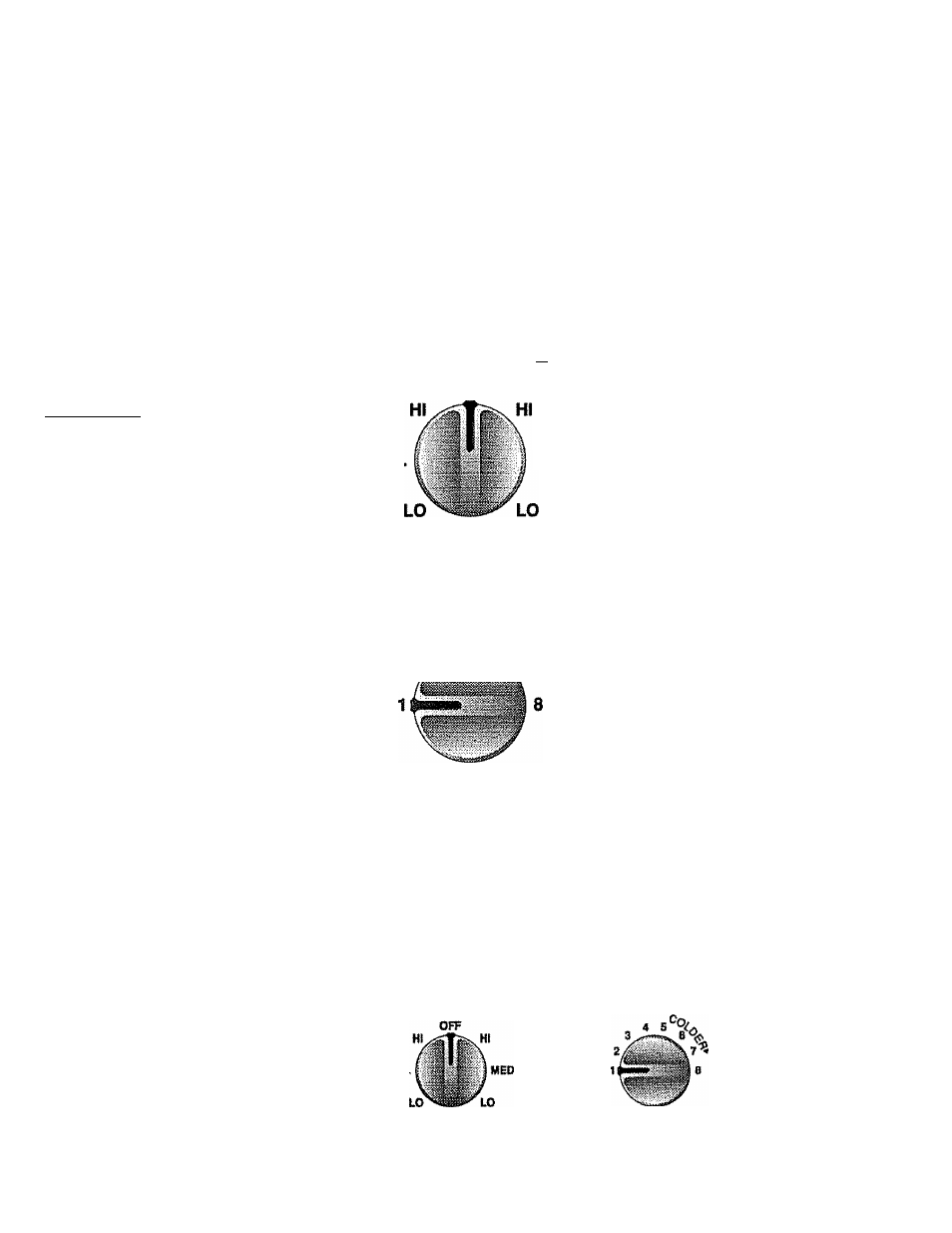

FAN CONTROL
This one knob (A) turns air
conditioner off. (B) adjusts fan
VENT CONTROL
OPEN CLOSE
Kenmore
FILTER
MONITOR
m
OFF
MED
CONSTANT
FAN
MED.
POWER
SAVER FAN
BEFORE RESTARTING. WAIT THREE MINIFTES
_ 4
%
2/ .
TEMP. CONTROL
speeds. (C) sets POWER SAVER
FAN (on some models) or
CONSTANT FAN.
OFF - The entire air conditioner is
off.
POWER SAVER FAN FEATURE(On
some models) is indicated by gold
lettering on the “HI.“ “MED" and *LO"
speeds
The air conditioner
(compressor fan) will not run unless
the “TEMP. CONTROL“ is set colder
than
room temperature. (See
temperature instructions). When
control is set colder than the room
temperature, the air conditioner will
begin to circulate the air in the room.
Cooling will begin in about 3 minutes.
The air conditioner turns off when
the room gets cool. “Hr is for fast
cool, “MED" for normal, and “LO* for
quiet cool. The “POWER SAVER
FAN* settings can save energy. The
fan win turn on only when the fan is
cooling
CONSTANTFAN......................................
Hi - Low and on some models Med.
speed.
The air conditioner fan runs all the
time, circulating room air. Cooling
starts only if the air is warm and stops
if it gets cool (See temperature
instructions). This setting gives the
most even room temperatures. *HI*
is for fast cool. “MED* for normal cool
- “LO* for quiet cool
Side Air Dial plate Controls
Follow the directions above for
control use.
Korimoro
CONSTAMT
FAN
MED
POWER
SAVER FAN
BO>omiRE9Tiunma
wjunmciKianiii
tlMP. CONTROL
VENT CONTROL
CLOSED
OPEN
