IMPORTANT INSTALLATION INSTRUCTIONS
M ANl JAl VEBIiCAL..LQlJ ADJUSTMENT
Complete this adjustment
before installing front panel
Verlical Louver
1. Adjust the vertical louvers to the straight
position by using the handle ,
2, The control panel and knobs are packed
separately. To install them, refer to installing
"Front to Unit" in this manual.
Front Installation

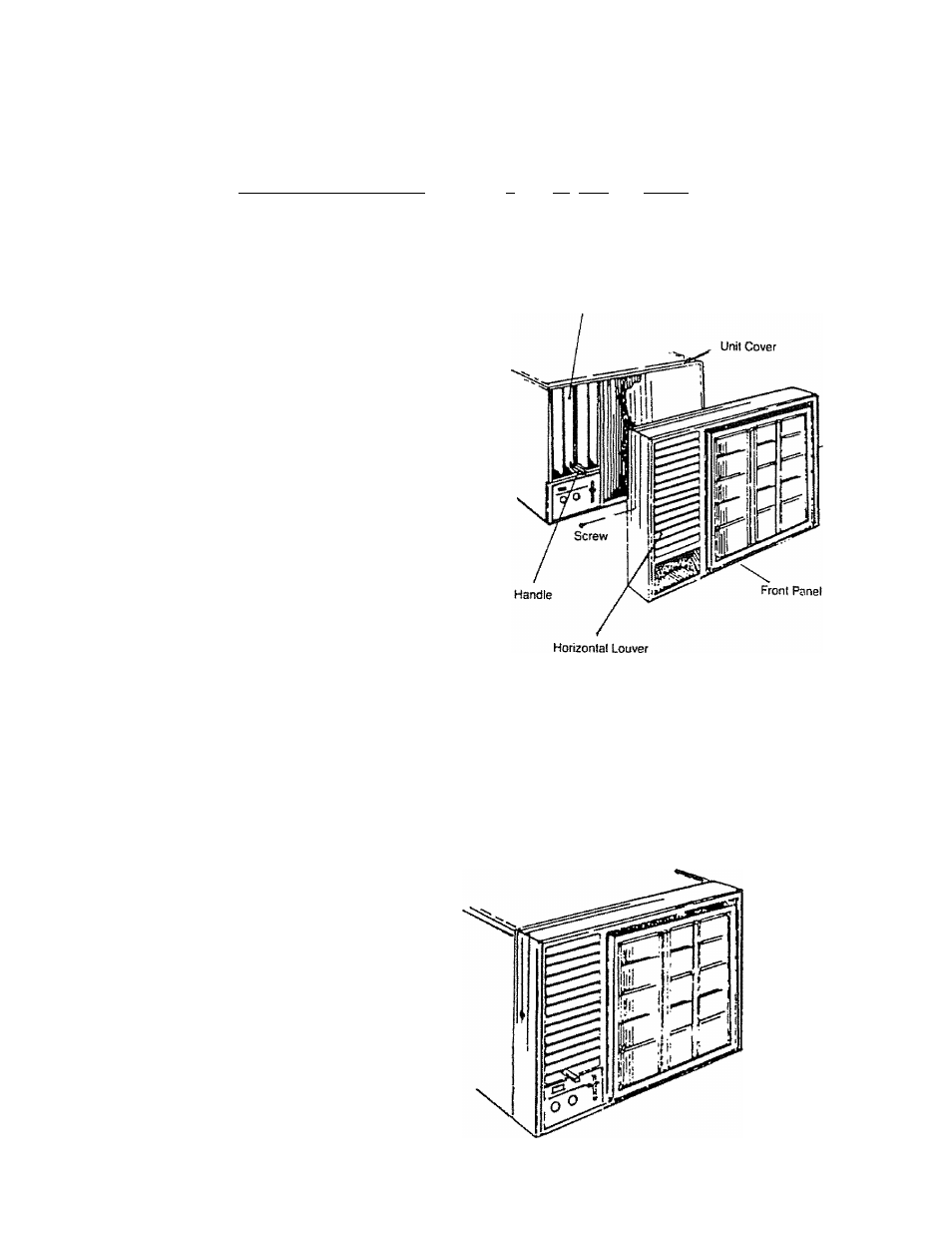

Install the front panel with filter as follows:
1. Adjust the horizontal louvers to the straight
position. Hold the front straight until the vertical
louver handle lines up between the bottom
horizontal louver and the discharge opening.
2. Press the front straight onto the cabinet until the
holes in the flangeof the plastlcfront lineup with the
screw holes in the metal cabinet. Fasten thefront in
place with the two screws provided.
Screw
