basic operation

WARNiNG: APPLYING THE WORKPIECE TO THE
RIGHT SIDE COULD CAUSSE IT TO FLY UP
(KICKBACK) WHICH COULD BE HAZARDOUS.

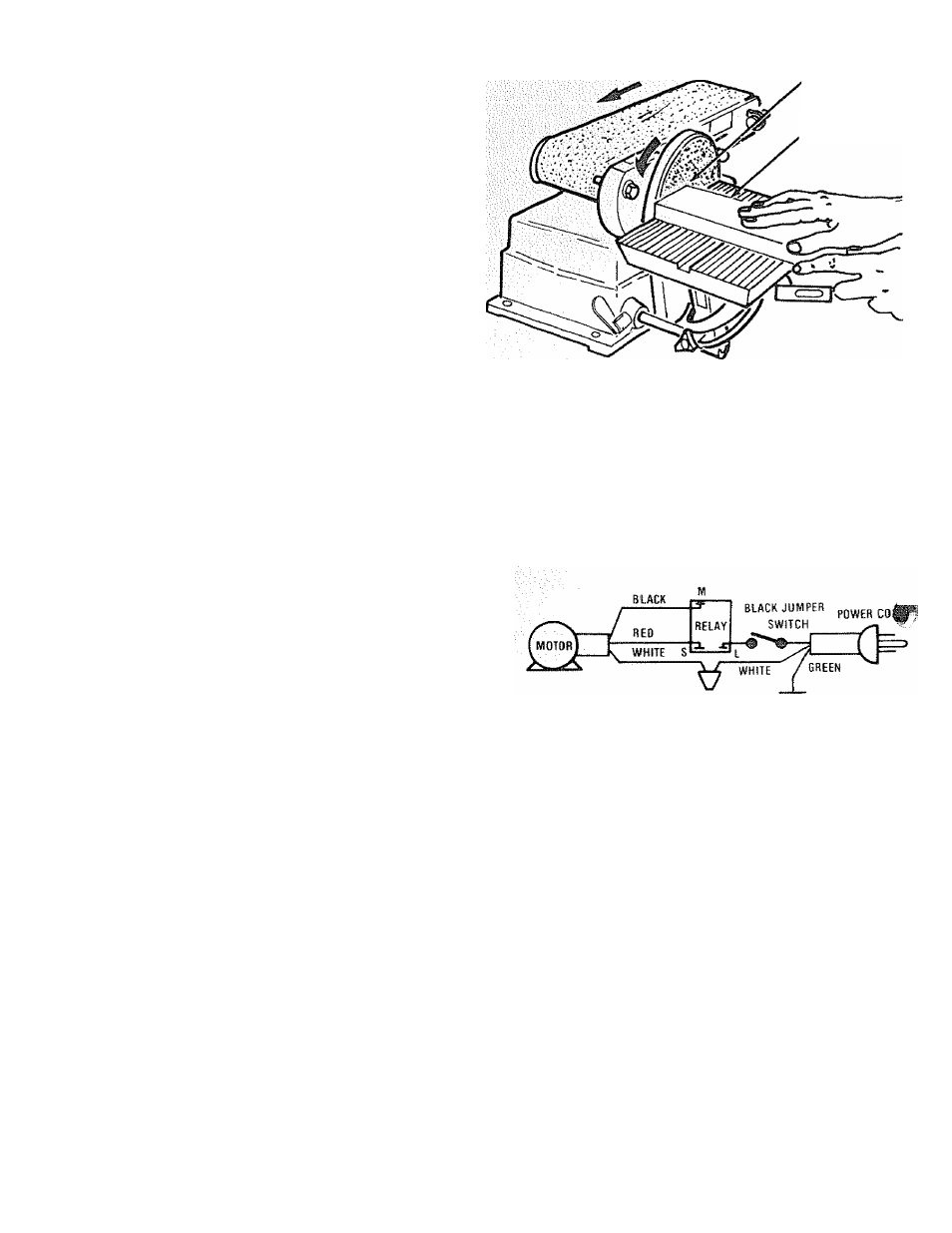

Always position the workpiece to the left of center on
sanding disc with disc rotating counter-clockwise as
shown.

.....

The table may be tilted for beveled work. s

CENTER

WORKPIECE .

(LEFT OF CENTEi

maintenance

WARNING: FOR YOUR OWN SAFETY, TURN
SWITCH“OFF” AND REMOVE PLUG FROM POW'ER
SOURCE OUTLET BEFORE ADJUSTING, MAIN
TAINING, OR LUBRICATING YOUR BELT AND DISC
SANDER.

If power cord is worn or cut, or damaged in any way,

have it replaced immediately.

Frequently blow out or vacuum out any dust that may

accumulate inside the motor,

A coat of automobile-type wax applied to the worktable

will make it a little easier to feed the work while finishing.

Do not apply wax to the abrasive belt table because

the bbit couW pick up the wax and deposit it on the
pulleys, causing the belt to slip.

WIRING DIAGRAM

LUBRICATION

The BALL BEARiNGS in this machine are packed

with grease at the factory. They require no further
lubrication.
