assembly
5.

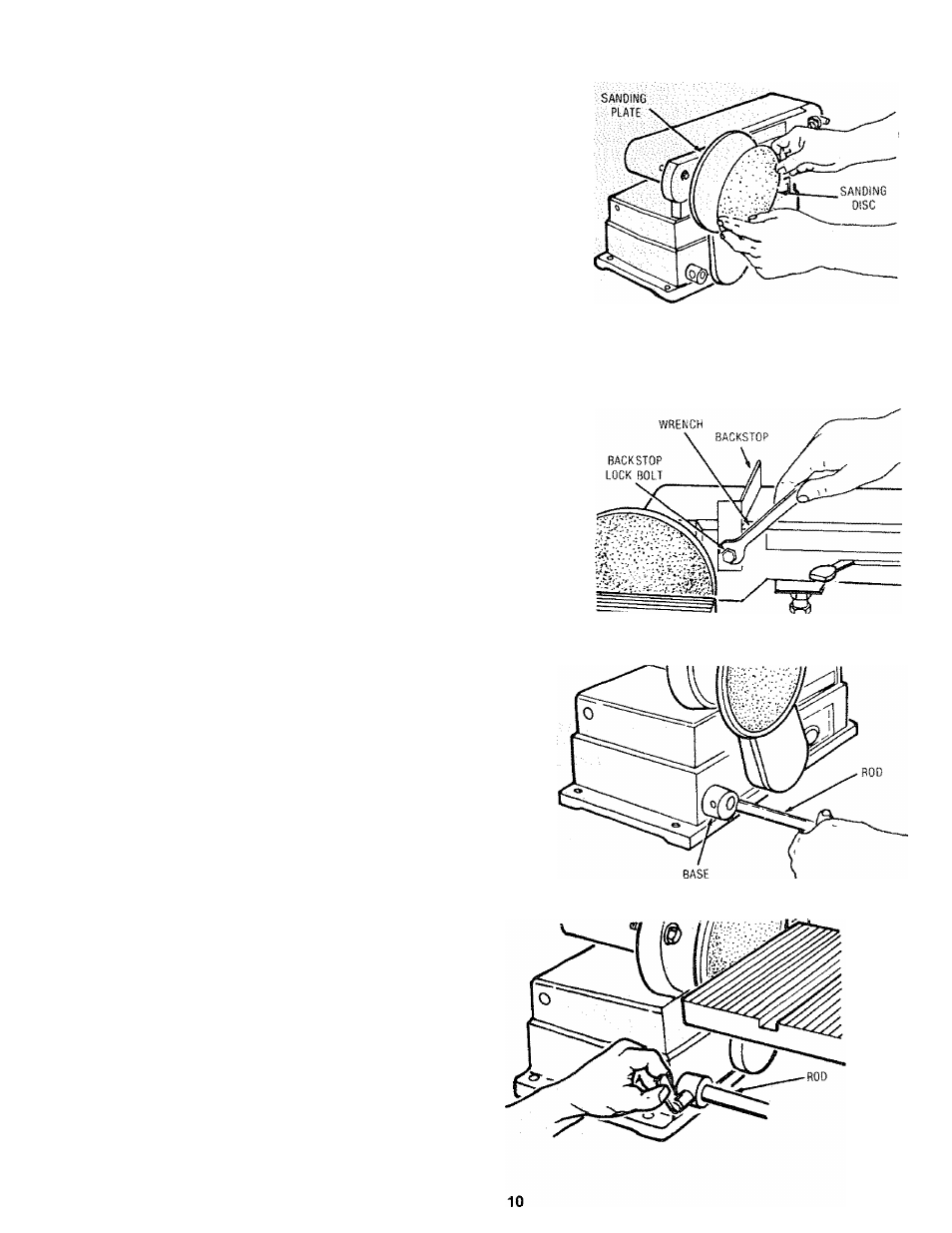

Locate sanding disc and peel backing from
disc. Align perimeter of disc with plate and
press disc firmly into position all the way
around.
INSTALLING BACKSTOP
1. Locate backstop, hex bolt V
a
-2Q
x
V
z
inch lock-
washer, and a V
a
inch flat washer,
2.
Hold backstop into position and fasten with
bolt and washer as shown. Do not overtight
en.
INSTALLING TABLE ASSEMBLY
1. Locate table support rod, set screw and
toggle bolt among loose parts.
^ ^ ^
2. Insert rod in base as shown, leaving 5 inches
of rod extending outside base. Rotate rod so flat
surface on rod faces toward on-off switch.
3. Install toggle bolt in base and tighten.
