Sears 917.25148 - Manual (Page 43)

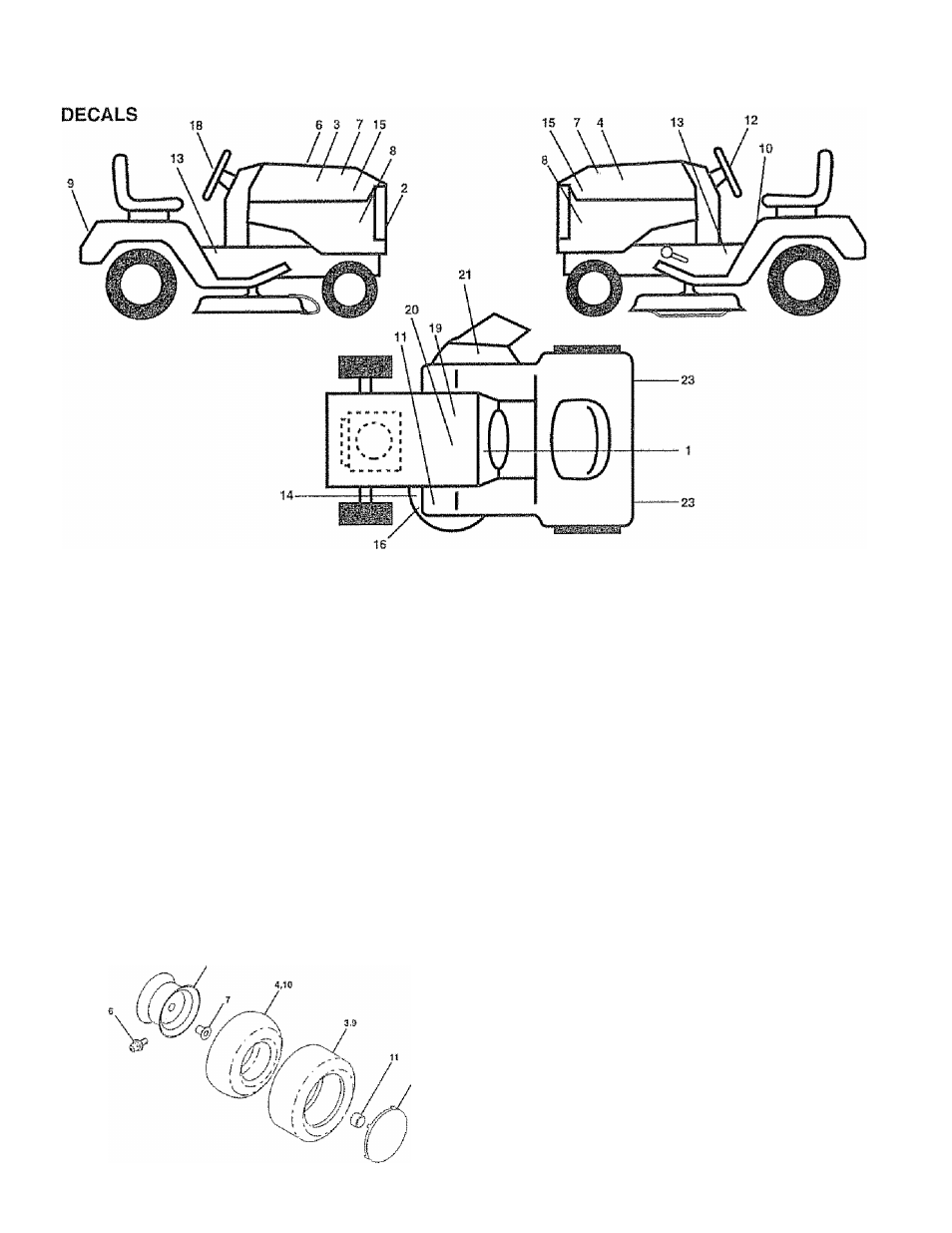

REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.251480
KEY PART
l/tïV
гчС Y PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 138955 Decal, Operating Instruction 15 151441 Decal Hood insert
2 151448 Decal, Grille Garden Trac. IPG 16 146047 Decal, V-Belt Drive Sch Tract
3 146705 Decal, Hood, Craftsman, RH 18 146710 Decal, Insert Strg
4 146706 Decal, Hood, Craftsman, LH 19 138047 Decal, Battery
6 133644 Decal, Maintenance 20 149516 Decal, Battery Dngr/Psn Srs Eng
7 138048 Decal, Side Panel 21 151302 Decal, Deck Mower EZ3 Polo
8 142243 Decal, Side Pane! 23 106202X Reflector, Taiilight
9 146709 Decal, Fender, Craftsman
. .
145245 Pad, Ftrest Rbr Sq
10 137537 Decal, Caution
. .
145247 Fastener, Pop-ln Footrest
11 4900J Decaf, Clutch/Brake 138311 Decal, Handle Lit Height Adjust
12 150333 Decal, Cap CNSMR Help Line SRS (Lift Handle)
13 151452 Decal, Chassis 151392 Manual, Owner’s (Eng)
14 139346 Decal, V'Belt Schematic - - 151393 Manual, Owner’s (Span)
WHEELS & TIRES
s,e
KEY PART
NO. NO.
1 59192
2 65139
3 106230X
4 8134H
5 106228X427
6 278H
6856M
7 9040H
8 106277X427
9 105588X
10 7154J
11 104757X
13 136327
144334
DESCRIPTION
Cap, Vaive, Tire
Stem, Valve
Tire, Front
Tube, Front (Service Item Only)
Rim Assembly, Front
Fitting, Grease (Front Wheel Only)
Fittiny, Gr0HS0
Bearing, Flange (Front Wheel Only)
Him Assembly, R e a r
Tire, Rear
Tube, Rear (Service Item Only)
Cap, Axle (Front Wheel Only)
Cover, Axle (Rear Wheel Only)
Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
