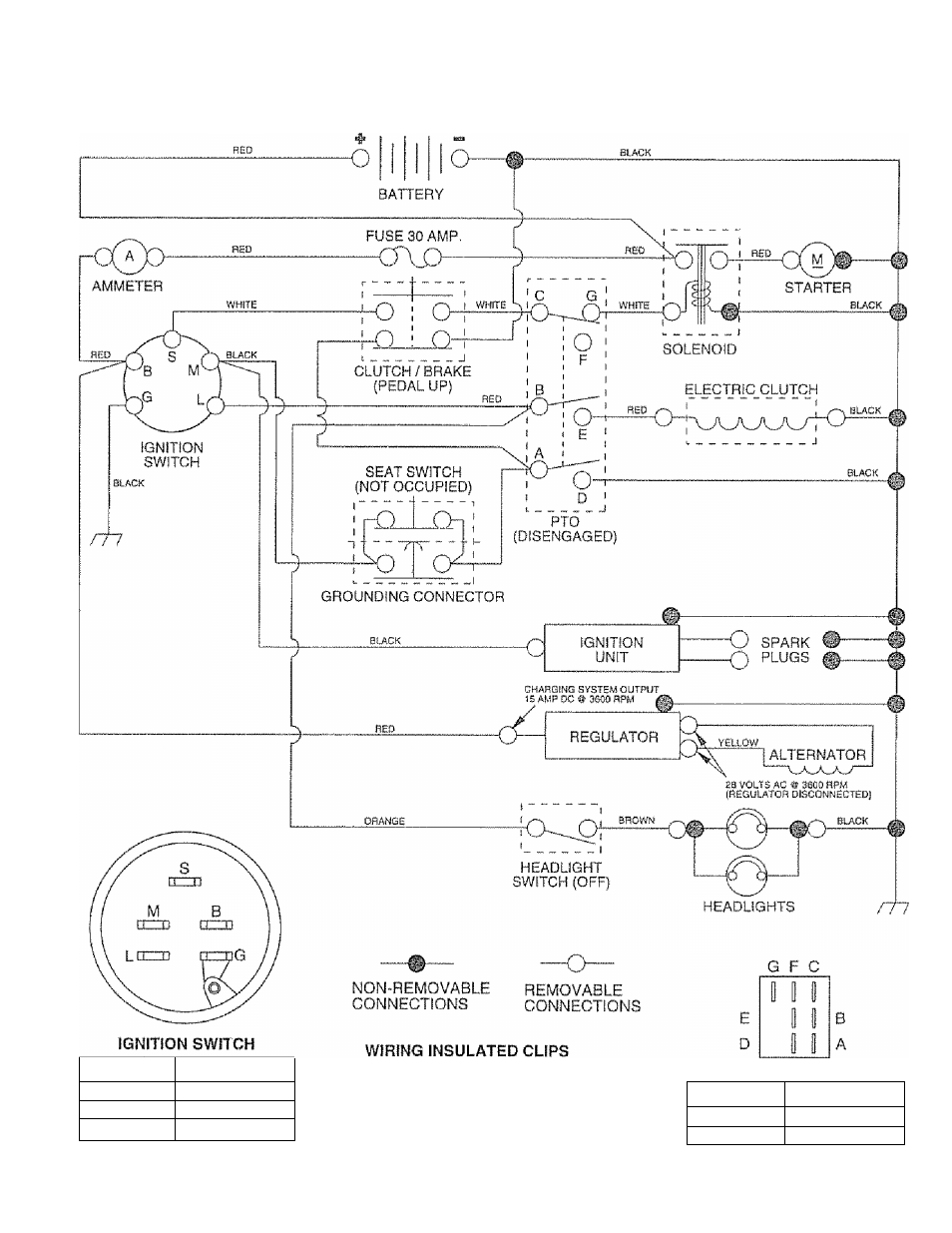

TRACTOR - MODEL NUMBER 917.251480

SCHEMATIC

POSITION

CIRCUIT

OFF

M + Q

ON

B + L

START

B S L

NOTE:

IF WIRING INSULATED

CUPS WERE REMOVED FOR
SERVICING OF UNIT. THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING

PTO SWITCH

POSITION

CIRCUIT

OFF

C + G

ON

C + F, B + E, A + D
