REPAIR PARTS

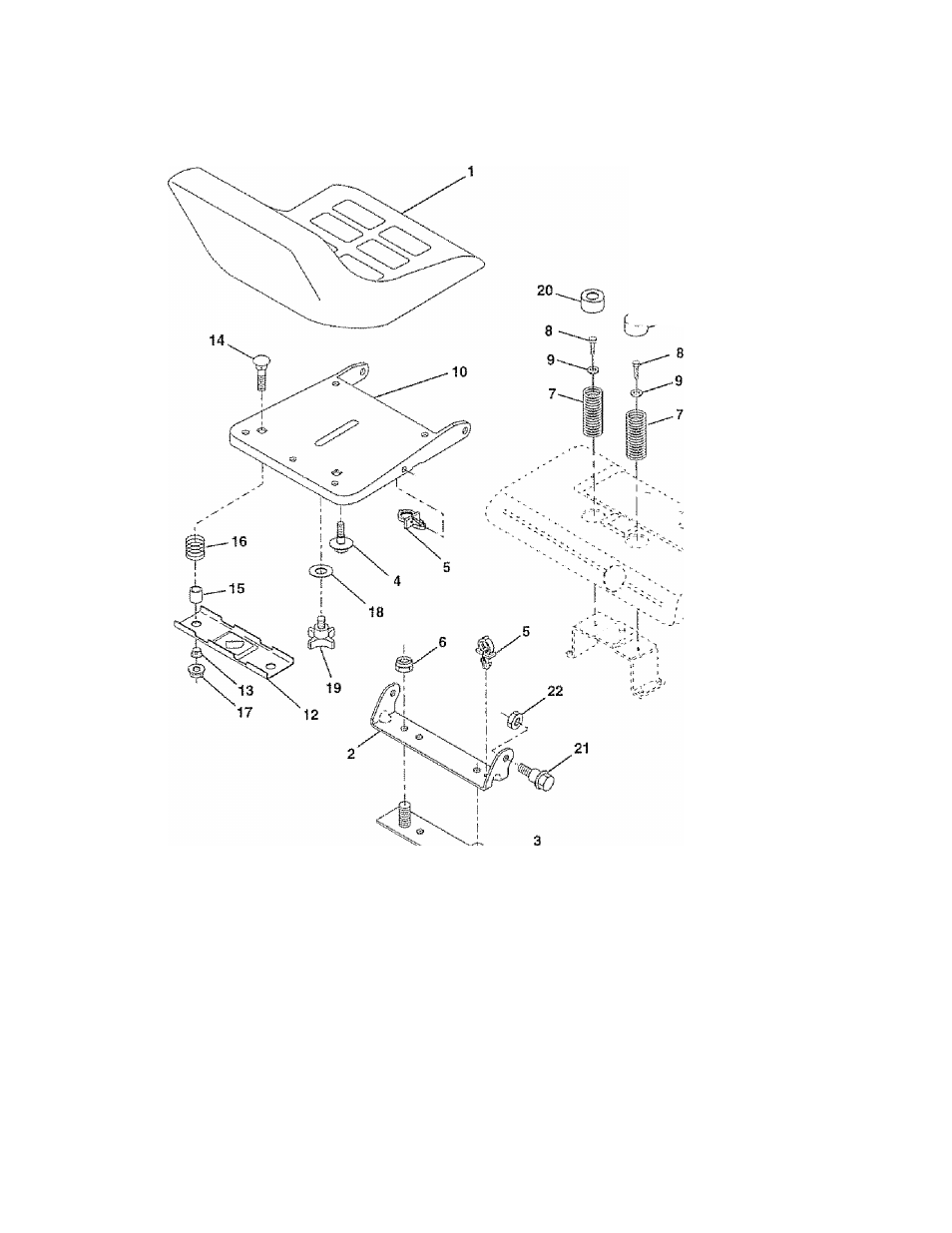

SEAT ASSEMBLY
TRACTOR - - yODEL NUMBER 917.251480
S
i
^20
X/
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
140124
Seat
13
121248X
Bushing, Snap
2
140551
Bracket, Pivot Seat
14
72050411
Bolt, Carriage 1/4-20 X 1-3/8
3
140675
Strap, Fender
15
121249X
Spacer, Spilt
4
127018X
Bo!t, Shoulder 5/16-18 x .62
16
123740X
Spring, Cprsn
5
145006
Clip, Push In Hinged
17
123976X
Nut, Lock 1/4 Lge Fig Gr 5
6
73680600
Nut, Crowniock 3/8-16 Unc
18
19171912
Washer 17/32 X 1 -3/16 x 12 Ga.
124181X
Spring, Seat Cprsn
19
120068X
Knob, Seat 1/2-13 Unc
8
17490508
Screw, Thdrol 5/16-18X1/2
20
124238X
Cap, Spring Seat
9
19131614
Washer 1 3 / 3 2 X 1 X 1 4 G a .
2 1
139888
Bolt, Shoulder 5/16-18
10
140552
Pan, Seat
22
73680500
Nut, Crowniock 5/16-18 Unc
12
121246X
Bracket, Mounting Switch
NOTE: All component dimensions given in U.S. inchi
