SECTION 5. CARE FOR THE MACHINE

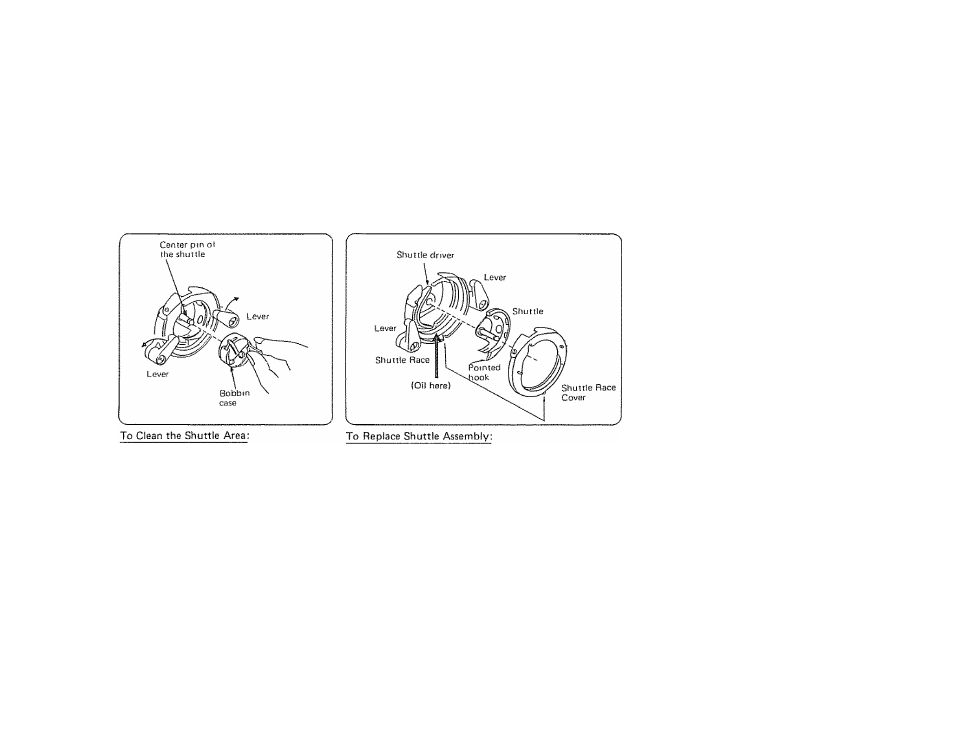

e Clean the Shuttle Race
This area must be kept free ot dust, lint and occasional tangled thread. Clean the shuttle race area
about every three months.
1
.
2.
3.
4.
Raise the needle bar to its highest
point and remove the bobbin case.
Push shuttle race levers aside. Lift
shuttle race cover and take shuttle out.
Clean the shuttle race with
brush.
lint
Put a drop ot oil on the center pin ot
the shuttle and shuttle race. Do not
over-oil.
4.
Position shuttle race as illustrated so that shuttle
driver IS forming half moon on the left side ot the
machine.
Hold shuttle by center pin and position shuttle so as
to form a half moon on the right side. Pointed hook
will be on the bottom.
Place shuttle race cover into place over shuttle
assembly.
Snap the levers back into the original position.
