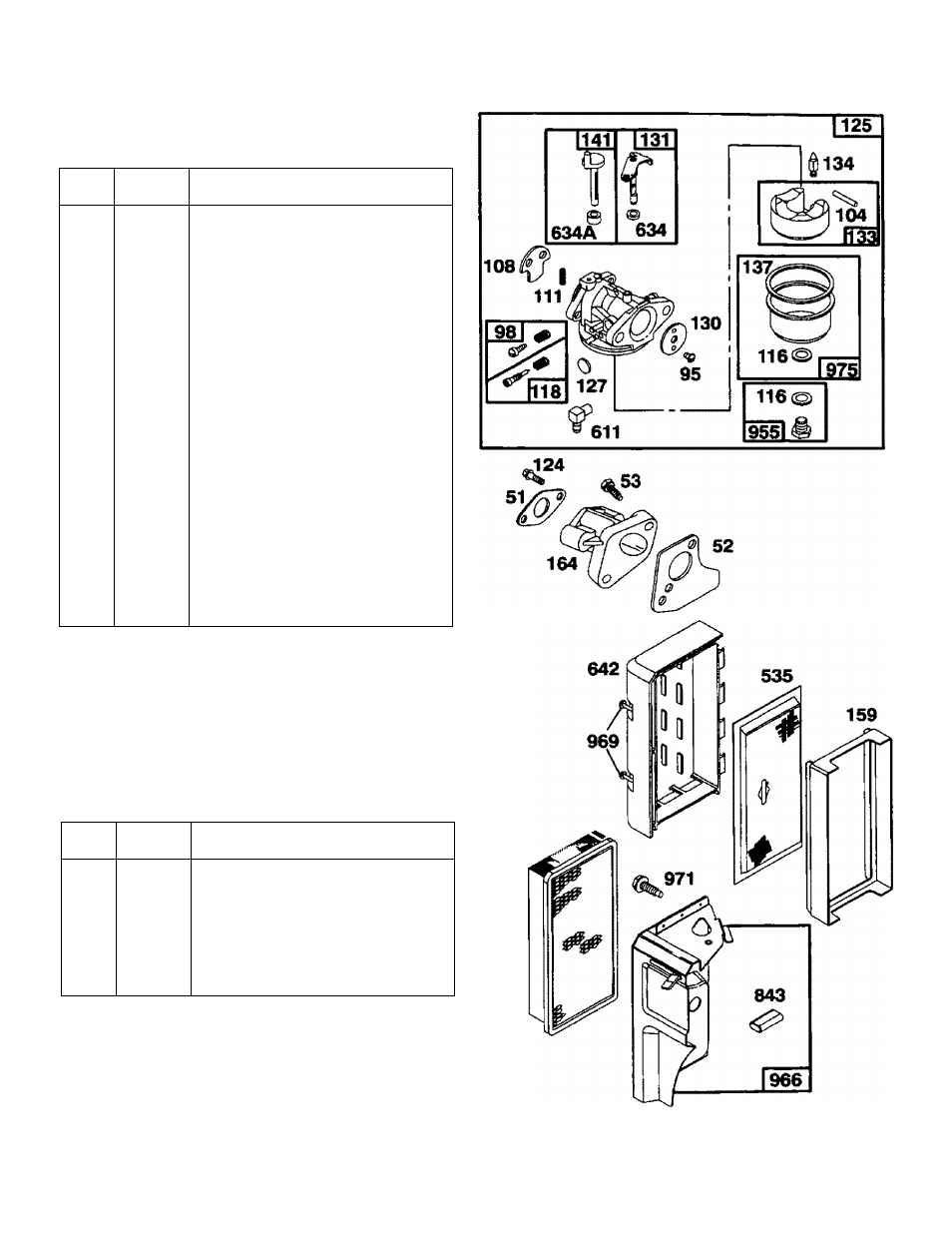

BRIGGS AND STRATTON 5 H.P. ENGINE MODEL NO. 133402-0011-01
Repair Parts
RiF.
NO.
PART
NO.
DESCRIPTION
51
*272295
Gasket-Carburetor Mtg.
52
*272585
Gasket- Intake Port
53
94706
Screw-Adapter Mtg.
95
94098
Screw-Round Head
98
398185
Screw-Idle Adjusting
104
*
Pin-Hinge (Sold in Kit Only).
108
224783
Valve-Choke
111
262820
Spring-Lever
116
Gasket-Sealing
(Sold in Kit Only).
118
•493765
Valve and Spring-Needle
124
94681
Screw-Hex. Washer Head
125
495652
Carburetor Assembly
127
•
Plug-Welch
130
223470
Valve-Throttle
131
493556
Shaft and Lever-Throttle
133
398187
Float Assembly-Carburetor
134
•398188
Valve-Inlet (Includes Seat)
137
•
Gasket-Bowl (Sold in Kit Only).
141
495651
Shaft-Choke
164
281247
Manifold-Intake
611
494451
Elbow-Fuel Pipe
634
Seal-Shaft (Sold in Kit Only).
634A
Seal-Choke Shaft (Sold in Kit Only).
955
497434
Screw-Fuel Bowl
975
493640
Bowl Assembly-Carburetor
REF.
NO.
PART
NO.
DESCRIPTION
159
280871
Support-Filter
445
494511
Filter-Air Cleaner
535
495246
Element-Air Cleaner
642
281188
Cover-Air Cleaner
843
280149
Sleeve-Lever
966
494902
Base-Air Cleaner
969
94120
Screw-Hex.Head
971
94727
Screw-Hex. Head
445
* Included in Gasket Set—Part No. 495661.
• Included in Carburetor Overhaul Kit—Part No. 493762.
♦ Included in Carburetor Gasket Set—Part No. 490937.
Assemblies include all parts shown in frames.
