unpacking and pre-assembly

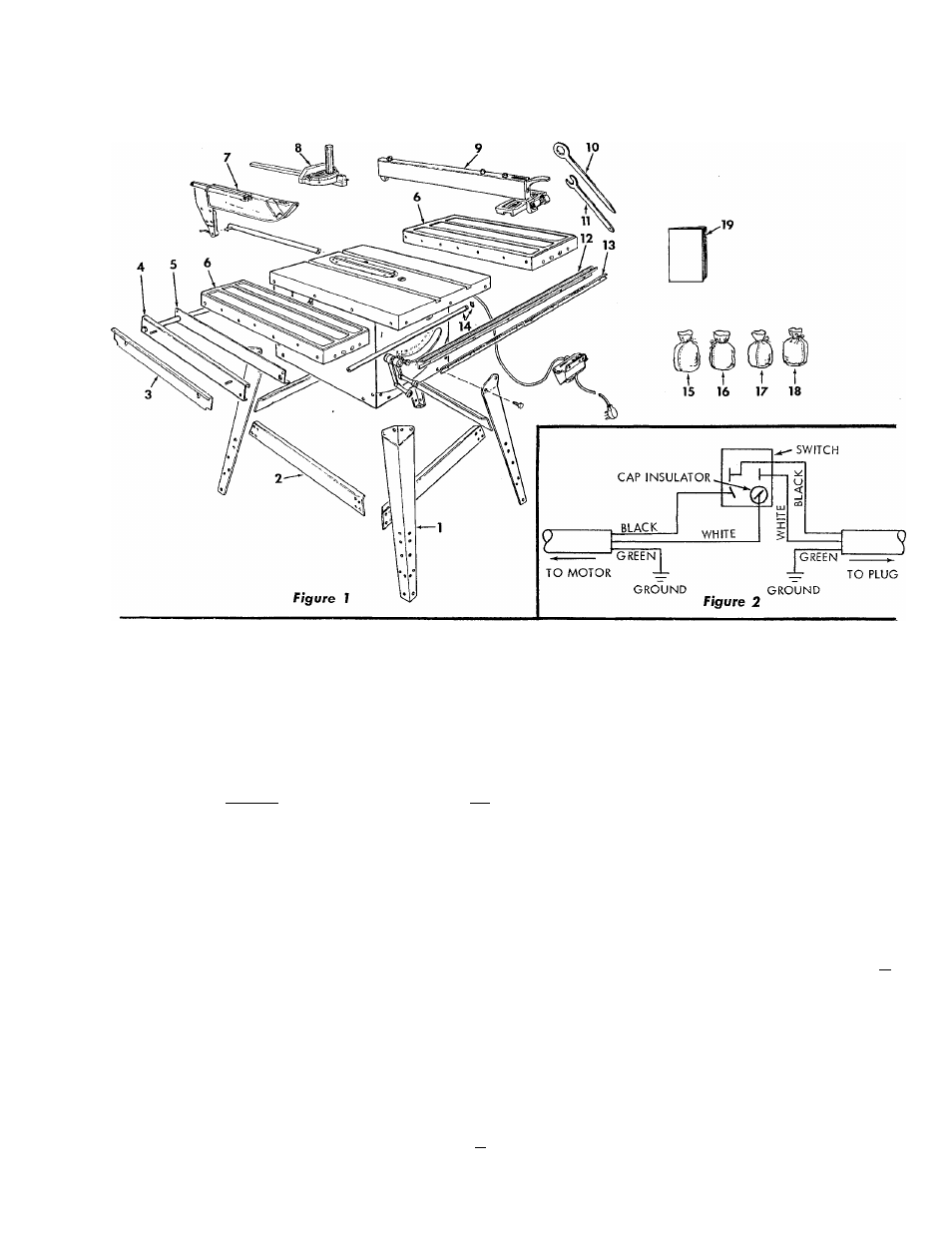

UNPACKING AND CHECKING CONTENTS
This Craftsman Motorized Floor Saw is shipped complete
in one carton. In order to prevent damage during shipment
and facilitate packaging, certain items are removed at the
factory and must be assembled when received by the pur­
chaser. These "loose" parts are listed below and should be
accounted for before discarding any packing material.
Key No.
(Fig. 1)
Key No.
(Fig. 1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Item Name_________________________________________ Oty.
Leg Base .................................................................................................. 4
Stiffener, Leg........................................................................................... 4
Fence, Auxiliary ...................................................................................... 1
Extension Assembly, Table Sliding .............................................. 1
Support, Table Extension.................................................................. 1
Extension, Table ................................................................................... 2
Guard Assembly, Saw......................................................................... 1
Gauge Assembly, Miter .................................................................... 1
Fence Assembly, Rip .......................................................................... 1
Wrench, Arbor....................................................................................... 1
Wrench, Shaft........................................................................................ 1
Bar Assembly, Fence .......................................................................... 1
Rack, Table ............................................................................................. 2
Rod Assembly, Extension ................................................................. 2
Package Assembly, Loose Parts
(Saw).................................. 1
Package Assembly, Loose Parts (Auxiliary Fence).................... 1
Package Assembly, Loose Parts
(Leg)................................... 1
Package Assembly, Loose Parts (Extension)............................. 1
Owners Manual .................................................................................... 1
List of Loose Parts, Basic Saw (Package 15, figure 1)
Spacer, Fence Guide Bar ................................................................... 7
Screw, Mach., Rd.-Hd. Slotted, 1/4-20x2" .............................. 7
Nut, Hex., 1/4-20 ................................................................................. 7
Washer, Lock, 1/4 ................................................................................. '
Wrench, Hex., 1/16" ............................................................................ 1
Wrench, Hex., 3/32" ........................................................................... 1
Item Name Qty.
Wrench, Hex., 1/8" .............................................................................. 1
Wrench, Hex., 5/32"............................................................................ 1
Wrench, Hex., 3/16" ........................................................................... 1
Key, Switch.............................................................................................. 2
List of Loose Parts, Auxiliary Fence (Package 16, figure 1)
Clamp, Table Extension .................................................................... 2
Screw, Mach., Hex.-Hd., 5/16-18x3/4" ........................................ 4
Nut, Hex., 5/16-18............................................................................... 2
Washer, Lock, 5/16.............................................................................. 4
Nut, Wing. 5/16-18 ............................................................................ 4
List of Loose Parts, Leg Assembly (Package 17, figure 1)
Screw, Mach., Hex.-Hd., 5/16-18 x 5/8"................................... 16
Nut, Hex., 5/16-18............................................................................. 16
Screw, Mach., Hex.-Hd., 1/4-20x1/2" .............................. 16
Nut, Hex., 1/4-20 .............................................................................. 16
Nut, Hex., 1/2-13 ................................................................................. 8
Foot, Leveling......................................................................................... 4
List of Loose Parts, Extension (Package 18, figure 1)
Screw, Mach., Hex.-Hd.,
5/16-18 x 1-1/4" ............................ 8
Nut, Hex., 5/16-18............................................................................... 8
Washer, Lock, 5/16"............................................................................ 8
Support, Extension Rod
............................................ 2
POWER SUPPLY AND MOTOR DATA
MOTOR SPECIFICATIONS
The AC motor used in this sow is a single voltage capacitor
Start capacitor run, non-reversible type, with the following
specifications:
Voltage....................................................... 240
Amperes.......................................... ............
