ASSEMBLY
GAUGE WHEEL
iWOUNTiNG
BRACKET
3/S-1B
LOCKNUT
3/8" WASHER
GAUGE WHEEL
SHOULDER
BOLT '
FIG. 5

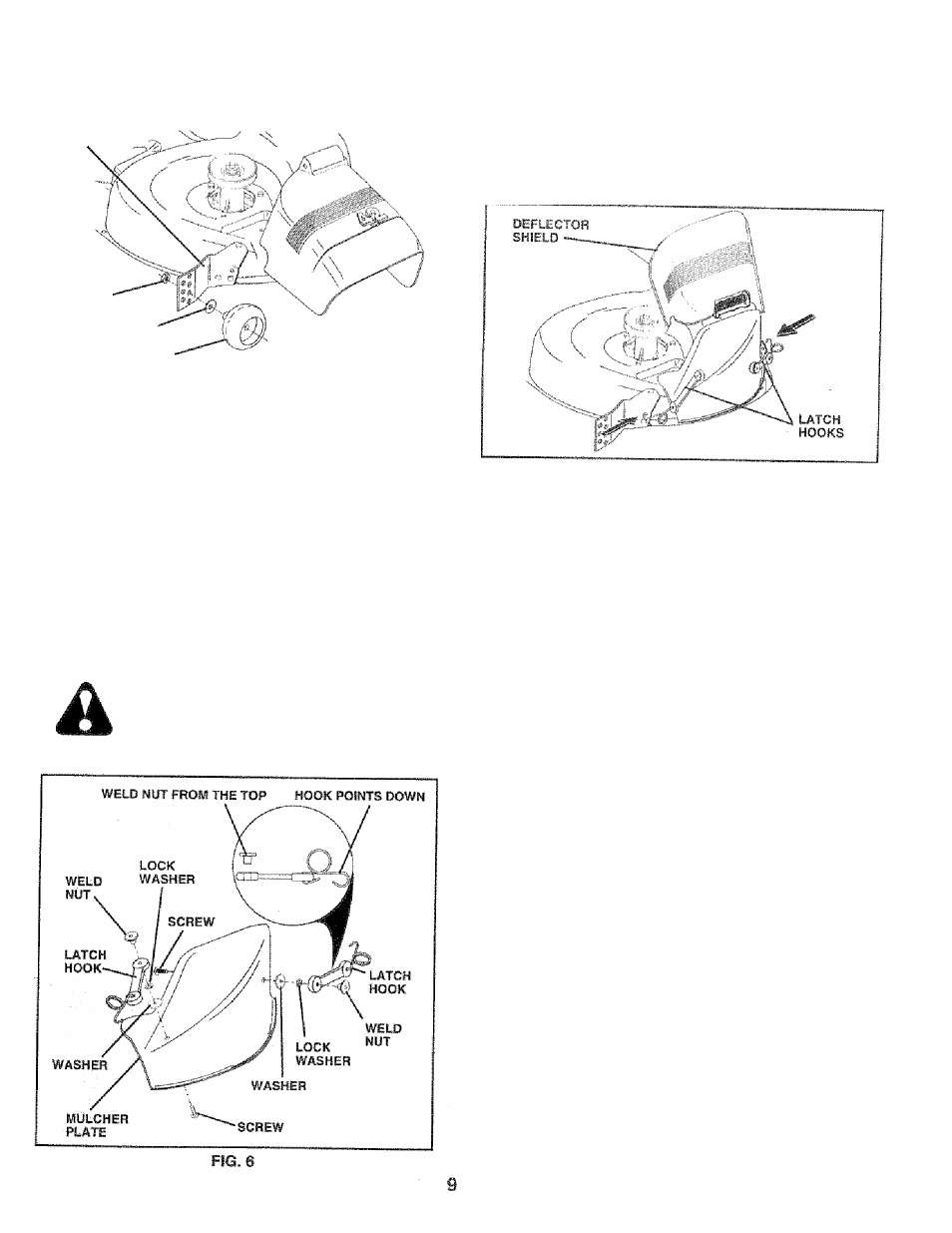

INSTALL MULCHER PLATE
(See Figs. 6 & 7)
« Install two latch hooks to mulcher plate using screw,
washer, lock washer, and weld nut as shown.
NOTE: Pre-asssmble weld nut to latch hook by inserting
weld nut from the top with hook pointing down,
" Tighten hardware securely.
® Raise and hold deflector shield in upright position.
* Place front of mulcher plate over front of mower deck
opening and slide into place, as shown.
» Hook front latch into hole on front of mower deck.
« Hook rear latch into hole on back of mower deck.
CAUTION: Do not remove discharge
guard from mower. Raise and hofd
guard when attaching mulcher plate
and allow It to rest on plate while in
operation.
TO CONVERT TO BAGGING OR
DISCHARGING
Simply remove mulcher plate and store in a safe place.
Your mower is now ready for discharging or installation of
optional grass catcher accessory.
FIG. 7
^CHECKLIST
BEFO RE YO U O PERATE AND ENJO Y YO UR NEW
TRACTO R, W E W (SH TO ASSURE THAT YO U RECEIVE
THE BEST PERFO RM ANCE AND SA TISFACTIO N FRO M
THIS Q UALITY PRO DUCT.
PLEASE REVIEW THE FO LLO W ING CHECKLIST:
/
/
/
All assembly instructions have been completed.
No remaining loose parts in carton.
Battery is properly prepared and charged. (Minimum
1 hour at 6 amps).
Seat is adjusted comfortably and tightened securely.
Ail tires are properly inflated. (For shipping purposes,
the tires were overinfiated at the factory).
Be sure mower deck is properly leveled side-to-side/
front-tomear for best cutting resuits. (Tires must be
properly Inflated for leveling).
Check mower and drive belts. Be sure they are routed
properly around pulleys and inside all belt keepers.
Check wiring. See that all connections are still secure
and wires are property clamped.
Before driving tractor, be sure freewheel control is in
drive position.
W HILE LEARNING HO W TO USE YO UR TRACTO R PA Y
EXTRA ATTENTIO N TO THE FO LLO W ING IM PO RTANT
ITEM S:
Engine oil is at proper level. '
Fuel tank is filled with fresh, clean, regular unleaded
gasoline.
Become familiar with all controls - their location and
function. Operate them before you start the engine.
Be sure brake system is in safe operating condition.
It is important to purge the transmission before operat­
ing your tractor for the first time. Follow proper starting
and transmission purging Instructions (See ‘TO START
ENGINE” and “PURGE TRANSMISSION” in the Op­
eration section of this manual).
/
/
/
/
/
/
/
/
/
