SERVICE AND ADJUSTMENTS
TO LEVEL MOWER HOUSING
Adjust the mower while tractor is parked on levei ground or
driveway. Make sure tires are properly inflated (See
“PRODUCT SPECIFICATIONS” on page 3 of this manual).
If tires are over or underinftated, you will not properly adjust
your mower,

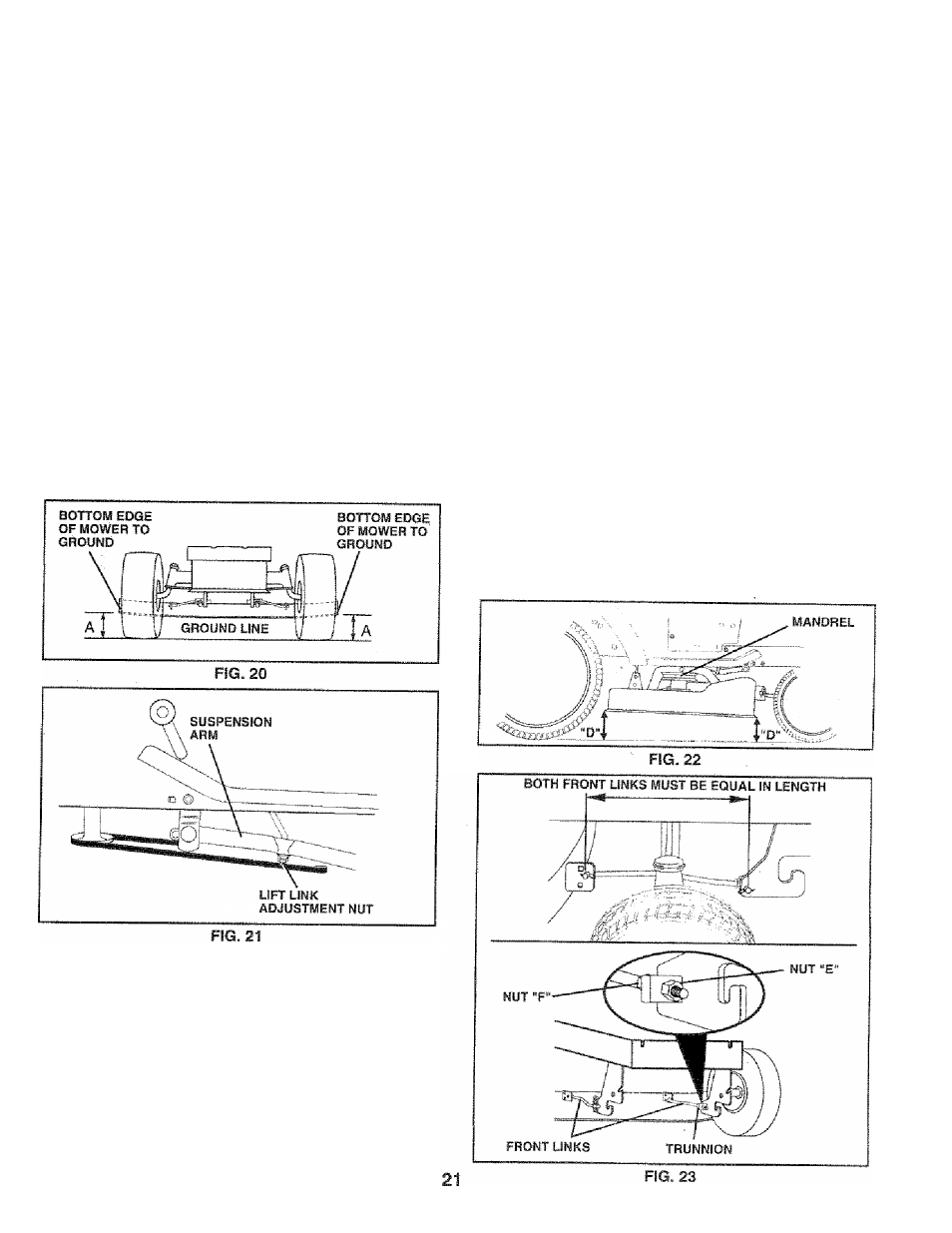

SIDE-TO-SIDE ADJUSTMENT (See Figs. 20 and 21)
» Raise mower to its highest position. ’
® At the midpoint of both sides of mowe p measure heig ht
from bottorh edge of mower to ground. Distance “A” on
both sides of mower shoiiid be the same or within 1/4"
of each other.
• if adjustment is necessary, make adjustment on one
side of mower only.
^ To raise one side of mower, tighten lift link adjustment
nut on that side.
■> To lower one side of mower, loosen ¡iff link adjustment
nut on that side.
NOTE: Each full turn of adjustment nut wifi change mower
height about 1/8".
» Recheck measurements after adjusting.
FR0NT*T0-BACK adjustment (See Fiqs 22 and 235
^PORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE IF
ADJUSTMENT IS
NECESSAR A BE SURE TO ADJUST BOTH FRONT LINKS
EQUALLY SO MOWER WILL STAY LEVEL SiDE-TO-
SIDE.
To obtain the best cutting results, the mower housing
should be adjusted so that the front is approximately 1/8" to
1/2" iower than the rear when the mower is in its highest
position.
Check adjustment on right side of tractor. Measure dis­
tance “D” directly in front and behind the mandrel at bottom
edge of mower housing as shown.
* Before making any necessary adjustments, check that
both front links are eguaNn length. Both links should be
approximately 10-3/8".
® !f links are not equal in length, adjust one link to same
length as other link.
• To lower front of mower loosen nut “E" on both front
links an equal number of turns.
* When distance “D” Is 1/8=) to 1/2" lower at front than
rear, tighten nuts “F” against trunnion on both front
links.
• To raise front of mower, loosen nut “F” from trunnion on
both front links. Tighten nut “E*" on both front links an
equal number of turns.
» When distance “D” is 1/8" to 1/2" lower at front than
rear, tighten nut “F” against trunnion on both front links.
® Recheck side-to-side adjustment.
