REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.258552

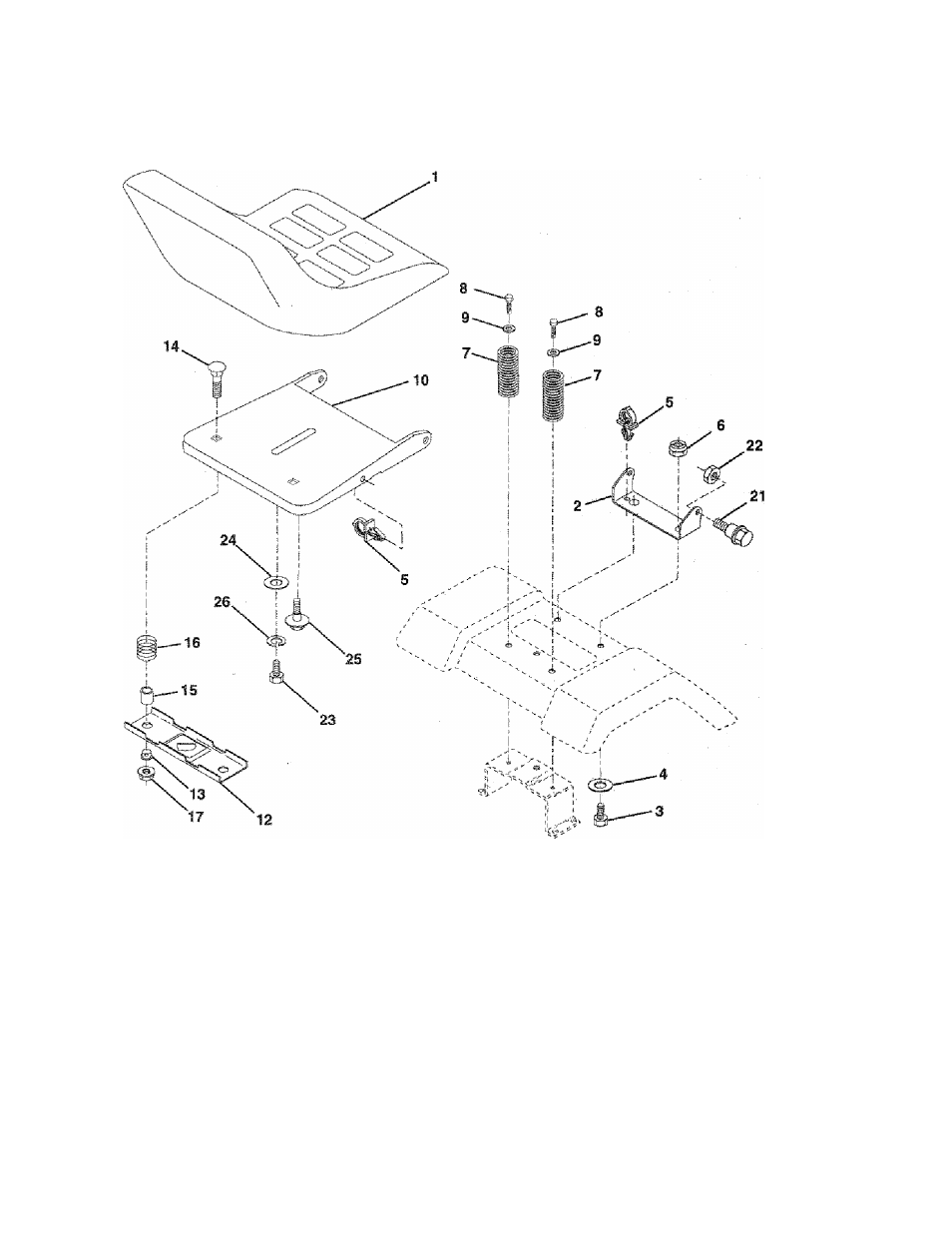

SEAT ASSEMBLY
'
'
KEY PART
NO. NO.
1
140123
2
140551
3 STD523710
4
19131610
5
145006
6
STD541437
7
124181X
8
17490616
9
19131614
10 155925
12
121246X
13
121248X
14 72050411
DESCRIPTION
Seat
Bracket, Pivot, Seat
Bolt
Washer 13/32 x 1 x 10 Gauge
Cfip, Push-In Hinged
Nut
Spring, Seat
Screw, Thd, Ron. 3/8-16x1
Washer 13/32 x 1 x 14 Gauge
Pan, Seat Emboss QCK Conn.
Bracket, Switch Mounting
Bushing, Snap
Boit, Carriage 1/4-20 x 1-3/8
KEY PART
NO. NO.
15 134300
16
121250X
17
123976X
¡¿ml
I Ov/ 22 STD541431 23 74760814 24 19171912 l O T n i A Y i w I 26 STD551150 DESCRIPTION Spacer, Spilt .28 x .88 s Bolt, Shoulder 5/16-18 UNC Washer 17/32 x 1-3/16x12 Bolt,Shoulder 5/16-18x.62 Washer, Lock NOTE; All component dimensions given in U.S. inches 1 inch = 25,4 mm 38
Spring
Locknut, Range 1/4 Grade
Nut
Bolt, Hex Head, Fin*
1/2-13 X 7/8 Grade 5
