SERVICE AND ADJUSTMENTS

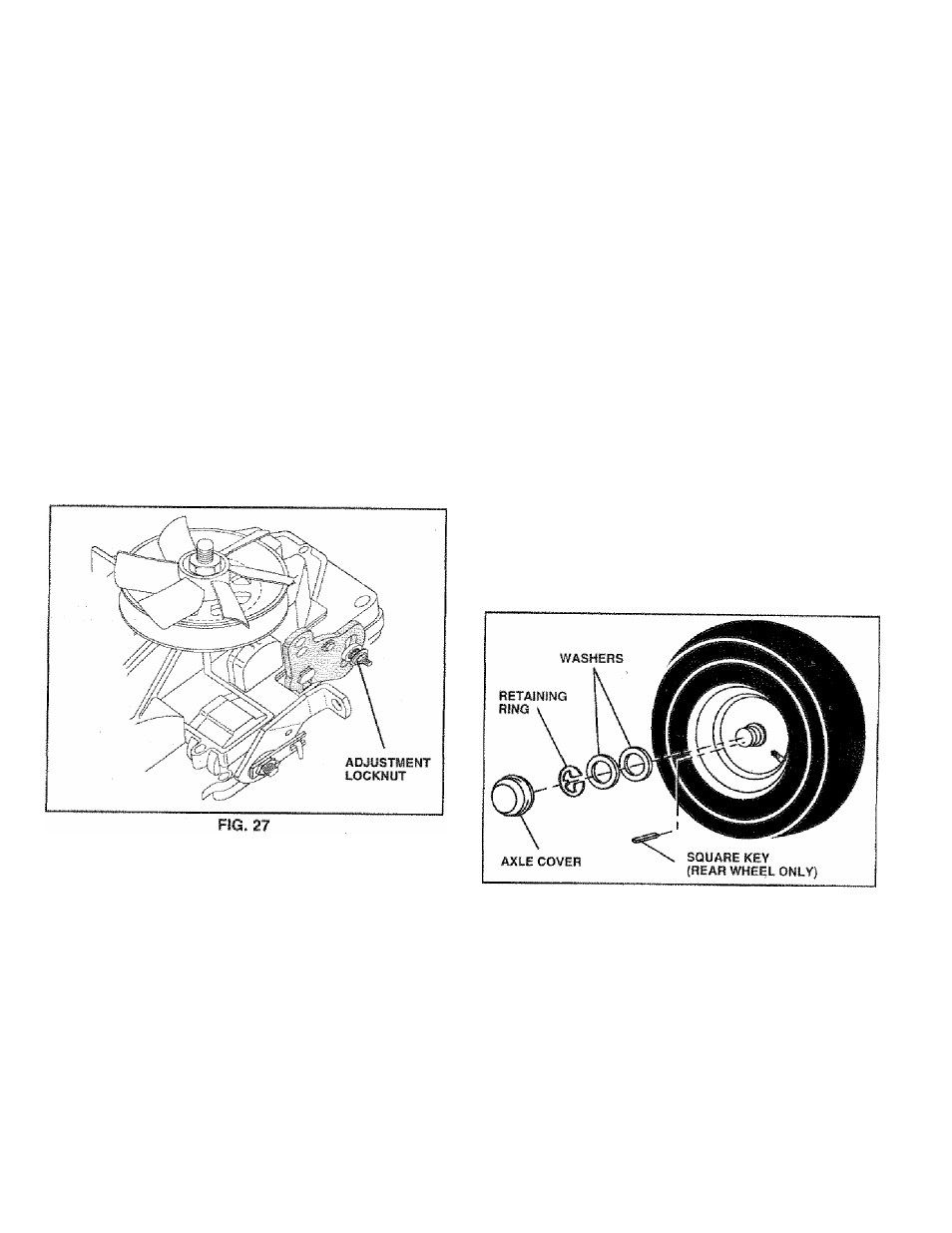

то ADJUST MOTION CONTROL LEVER
(See Rg. 27)
The motion control fever has been preset at the factory and
adjustment should not be necessary.
If tor any reason the motion control lever will not hold Its
position while at a selected speed, it may be adjusted at the
friction pack located on the right side of transmission.
•
Park tractor on level surface. Stop tractor by turning
ignition key to “OFF” position, and engage parking
brake.
* Adjust motion control lever by tightening adjustment
locknut one haif (1/2) turn.
NOTE: If for any reason the effort to move the motion
control lever becomes too excessive, reverse the above
adjustment procedure by loosening locknut 1/4 to 1/2 turn.
Road test tractor after adjustment and repeat procedure if
necessary.
TRANSMISSION RE MOV АШЕР LA СЕМЕ NT
Should your transmission require removal for service or
replacement, it should be purged after reinstallation and
before operating the tractor. See “PURGE TRANSMIS­
SION” in the Operation section of this manual.
TO ADJUST STEERING WHEEL ALIGNMENT
if steering wheel crossbars are not horizontai (left to right)
when wheels are positioned straightforward, remove steer­
ing wheel and reassemble per instructions iPf the Assembly
section of this manual,
FRONT WHEEL TOE-IN/CAMBER
The front wheel toe-in and camber are not adjustable on
your tractor. If damage has occurred to affect the front
wheel toe-in or camber, contact your nearest authorized
service center/department.
TO REMOVE WHEEL FOR REPAIRS
(See Fig. 28)
® Block up axfe securely.
■» Remove axle cover, retaining ring and washers to allow
wheel removaJ (rear wheel contains a square key - Do
not lose).
* Repair tire and reassemble.
. ® On rear wheels only: align grooves in rear wheel hub
and axle, insert square key.
* Replace washers and snap retaining ring securely In
axle groove.
* Replace axfe cover.
NOTE: To seal tire punctures and prevent fiat tires due to
slow leaks, tire sealant may be purchased from your local
parts dealer. Tire sealant also prevents tire dry rot and
corrosion.
FIG. 28
23
