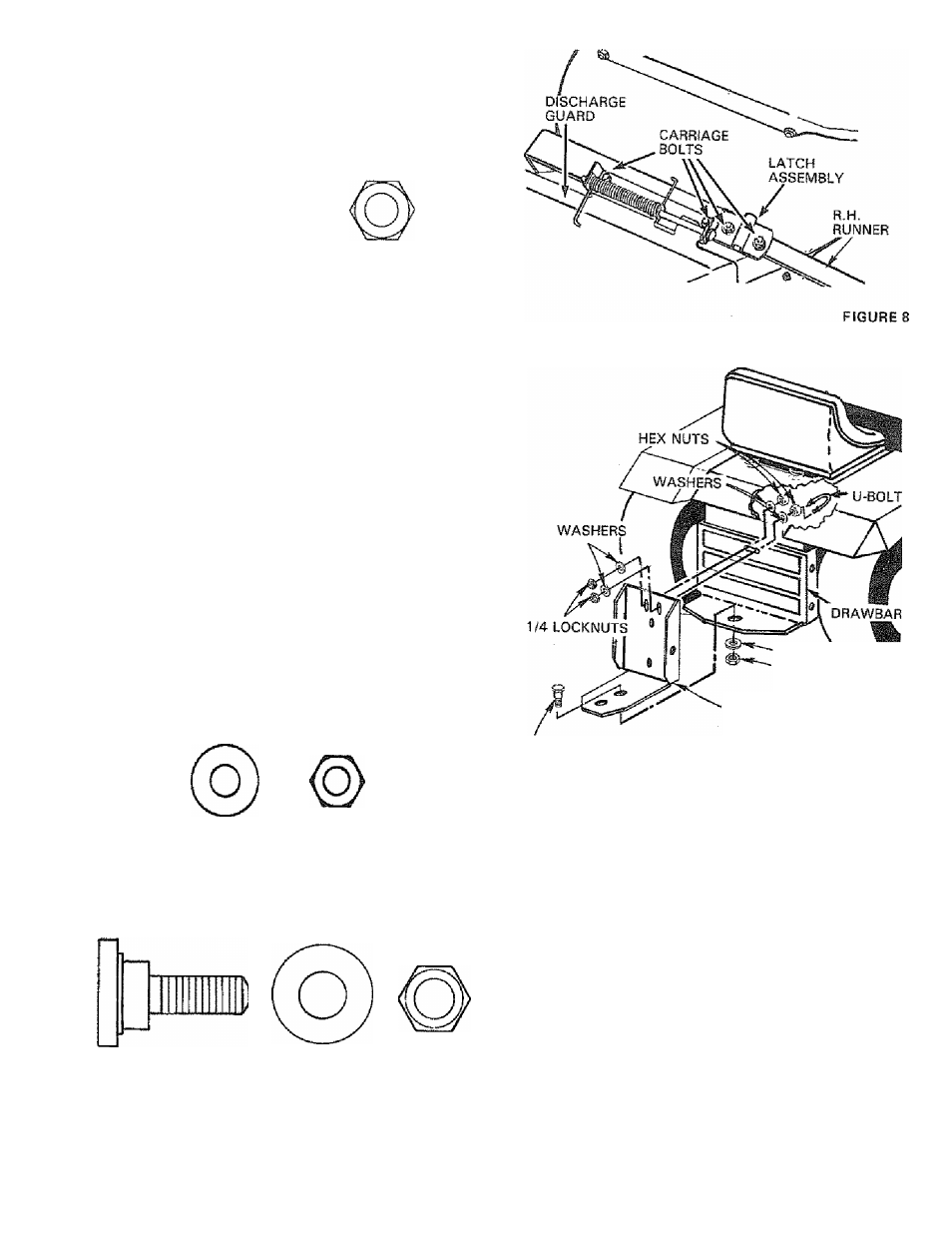

16. A ttach discharge guard to latch assem bly and
m ow er housing (Fig. 81 using tw o 5/76 carnage
bolts and tw o 5/16 locknuts (show n full size
below ). B olt heads to underside of m ow er housing.
Tighten securely. H ardw are furnished w ith grass
catcher. N O TE : Tighten hardw are assem bled in
steps 13 and 15.
(tall.
17, R eattach m ow er to tractor. R efer to "M ow er in­
stallation" in your tractor ow ners m anual.
ASSEMBLY-GRASS CATCHER
A ll hardw are for grass catcher assem bly is found in bag
labeled "M ounting B racket H ardw are".
1. Locate u-boit in parts bag. Place tw o 1/4 hex nuts
and tw o w ashers (show n fult size below ) on u-bolt.
N O TE: B ack nuts dow n the full length of u-bolt. U -
bolt and hardw are furnished w ith grass catcher.
© @
2. Insert u-bolt through slot In draw bar by reaching
from underneath betw een draw bar and transaxle
(Fig. 9).
3. P lace the rear m ounting bracket (P ig. 9) on u-boit
and secure w ith tw o w ashers and tw o 1/4 locknuts
(show n full size below ). Tighten finger tight. R ear
m ounting bracket and hardw are furnished w ith
i Ca KzO a La I a
WASHER
3/8 LOCKNUT
REAR
MOUNTING
BRACKET
SHOULDER
BOLT
FIGURE 9
4. S ecure the rear m ounting bracket to the draw bar
(Fig. 9} using: one shoulder bolt, one w asher and
one 3/8 locknut (show n full size below ). Tighten
securely. N O TE : Tighten hardw are assem bled in
step 3. H ardw are furnished w ith grass catcher.
- 7 .
