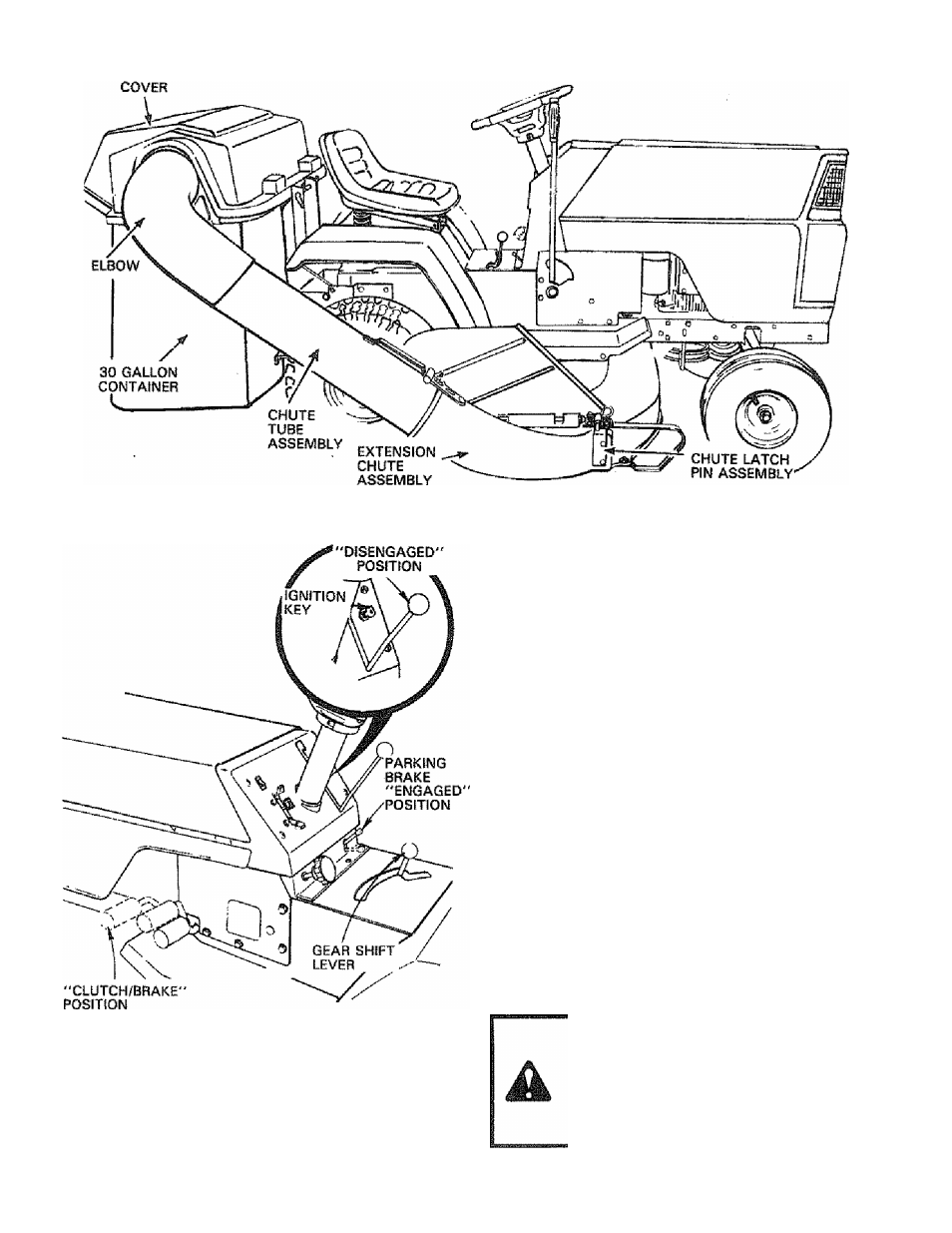

PARTS IDENTIFICATION
FIGURi 1
FIGURE 2
MOWER BLADE
CLUTCH LEVER
To assem ble your grass catcher you w ill need:
(1} 9/16" w rench
(2) 1/2" w renches
(2) 7/16" w renches
(V 7/8" w rench
(1) screw driver
ill 3/8" w rench
N O TE: R IG H T H A N D iR .H .) A N D LE FT H A N D
D ETE R M IN ED FR O M O P E R A TO R 'S PO S ITIO N W H ILE
S EA TED O N TH E TR A C TO R .
ASSEMBLY-MOWER
A
READ THE "RULES FOR SAFE OPERA­
TION" CARFEULLY BEFORE OPERATING
YOUR GRASS CATCHER.
DO NOT OPERATE MOWER WITH GRASS
CATCHER
ASSEMBLY PARTIALLY
INSTALLED.
A ll hardw are for m ow er assem bly found in bag labeled
"M ow er D eck H ardw are”.
1. Turn ignition key (Fig. 2} to "O FF" position.
REMOVE KEY TO PREVENT UNAUTHOR-
iZEP USE
MAKE ABSOLUTELY SURE THE BLADES
AND ALL MOVING PARTS HAVE COM­
PLETELY STOPPED.
2f Push dutch-brake pedal com pletely into "B R A K E "
■ position (Fig. 2).
-4-
