RiPAIR PARTS
12 H.P. 38" RIDING LAWN TRACTOR-IVIODEL NUMBER 917.255741

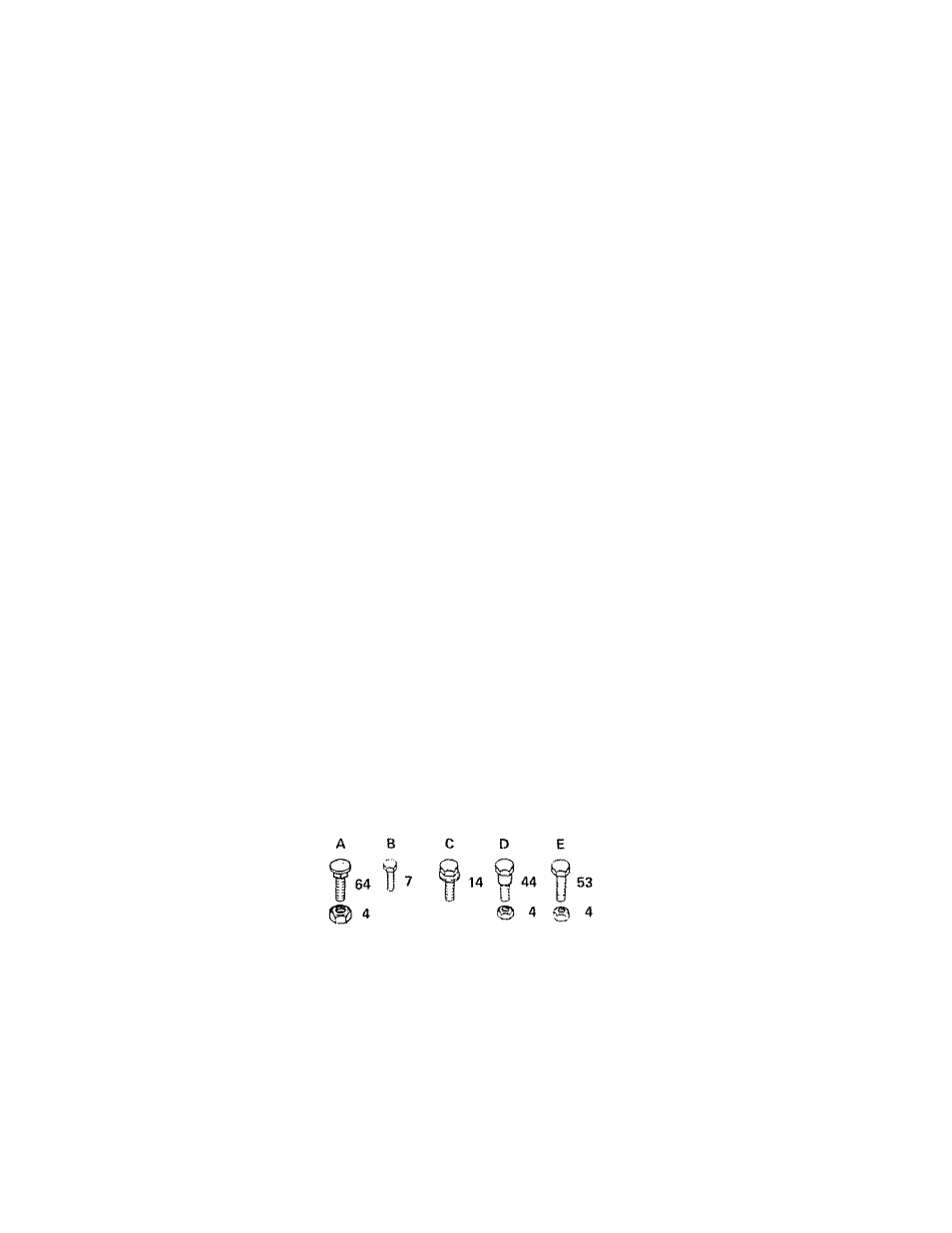

LIFT ADJUSTMENT
KEY PART DESCRIPTION KEY PART DESCRIPTION
NO NO NO NO
1 106448X Lever. Clutch, Mower 34 105754X Shaft, Lift
2 106932X Knob 35 105768X Lever, Assembly
3 106451X Bolt, Shoulder 36 105723X Plunger
4 73680600 Nut, Lock. 3/8 ■ 16 38 106019X Grip, Handle
5 106452X Bracket, Switch, Interlock 39 4939M Retainer, Spring
6 19171713 Washer 17/32 x 1 - 1/16 x 13 Ga 40 105856X Link, Lift
7 17021008 Screw, Hex, Tapping, No 10 - 24 x 41 106204X Trunnion, Lift
1/2 42 105855X Link, Lift, Adjustable
8 106447X Support, Lever. Clutch 43 105B62X Arm, Suspension, R H-
9 105965X Cap, Fuel 44 105848X Bolt, Shoulder, 3/8 - 16
10 105738X Tank, Fuel 45 105863X Arm, Suspension, L.H,
11 101335K Line, Fuel 46 106308X Trunnion, Lift, Lower
12 9151R Grommet 47 STD541250 *Nut, Hex, 1/2-13
13 6999R Clamp, Hose 48 9135R Retainer, Spring
14 17490612 Screw, Hex Washer Thd Rolling 49 19171416 Washer 17/32 x 7/8 x 16 Ga
3/8 ■ 16 X 3/4 50 4921H Retainer, Spring
15 10690IX Clamp, Tank, Fuel 51 105864X Bracket, Suspension
20 106920X Panel, Dash, L H 52 106444X Bracket, Bellcrank
21 105505X Cover, Access 53 STD523707 "Bolt, Hex 3/8- 16x3/4
22 10692IX Panel, Dash, R H 54 10644IX Bellcrank Assembly
23 19292016 Washer 29/32 X 1 - 1/4 x 16Ga. 55 76020412 Pin, Cotter, 1/8 X 3/4
24 12000029 Klip Ring 57 106446X Rod, Clutch, Primary
25 100734K Knob 59 5320R Clip
26 STD541237 *Nut, Hex Jam 3/8 - 16
61 105764X Rod Assembly • Lever, Lift
27 105686X Rod, Adjust, Lift
62 105767X Pin - Groove
28 76020308 Pin, Cotter 3/32 X 1/2 63 106810X Spring - Extension
29 2876H Spring 64 72140606 Bolt, Carriage 3/8 - 16 x 3/4
30 19131016 Washer 13/32 x 5/8x 16Ga, 66 108236X Bracket, Switch
31 101272K Trunnion, Depth Adjustment
‘STANDARD HARDWARE-PURCHASE 1
32 19151216 Washer 15/32 x 3/4 x 16Ga
33 12000037 Klip Ring
3 3 -
