installing the New Water Heater
Temperature-Pressure Relief Valve
- WARNING
At the time of manufacture this water heater was provided
with a combination temperature-pressure relief valve certi­
fied by a nationally recognized testing laboratory that main­
tains periodic inspection of production of listed equipment
or materials, as meeting the requirements for Relief Valves
and Automatic Gas Shutoff Devices for Hot Water Supply
Systems, and the latest edition of ANSI Z2Í 22 and the code
requirements of ASME If replaced, the valve must meet the
requirements of local codes, but not less than a combination
temperature and pressure relief valve certified as rneeting
the requirements for Relief Valves and Automatic Gas
Shutoff Devices for Hot Water Supply Systems, ANSI Z2D22
by a nationally recognized testing laboratory that maintains
periodic inspection of production of listed equipment or
materials.
The valve must be marked with a maximum set pressure not
to exceed the marked hydrostatic working pressure of the
water heater (130 ibs./sq, in.) and a discharge capacity not
less than the water healer input rate as shown on the model
ratina plate. (Electric healers - watts divided by 1000 x 3415
equal BTU/Hr, rate.)
Your local jurisdictional authority, while mandating the use
of a temperature-pressure relief valve complying with ANSI
¿21.22 and ASME, may require a valve model different from
the one furnished with the water heater.
Compliance with such local requirements must be satisfied
by the installer or end user of the water heater with a locally
prescribed temperature-pressure relief valve installed in the
designated opening in the water heater in place of the facto­
ry furnished valve.
For safe operation of the water heater, the relief valve must
not be removed from it's designated opening or plugged.
The temperature-pressure relief valve must be installed
directly into the filling of the water heater designated for the
relief valve. Position Ine valve downward and provide tubing
so that any discharge will exit only within 6 inches above, or
at any distance below the structural floor. Be certain that no
contact is made with any live electrical part. The discharge
opening must not be blocked or reduced in size under any
circumstances. Excessive length, oyer 30 feet, or use of more
than four elbows can cause restriction and reduce the dis­
charge capacity of the valve.
No valve or other obstruction is to be placed between the
relief valve and the tank. Do not connect tubing directly to
discharge drain unless a 6 " air gap is provided. To prevent
bodily injury, hazard to life, or property damage, the relief
valve must be allowed to discnarge water in quantities
should circumstances demand. If the discharge pipe is not
connected to a drain or other suitable means, the water flow
may cause property damage.
-
The Discharge Pipe:
—Must not be smaller in size than the outlet pipe size of the
valve, or have any reducing couplings or other restriction.
—Must not be plugged or blocked.
—Must be of material listed for hot water distribution.
—Must be installed so as to allow complete drainage of both
the temperature-pressure relief valve, and the discharge
pipe.
—Must terminate at an adequate drain.
—Must not have any valve between the relief valve and tank.
WARNING
The temperature-pressure relief valve must be manual­
ly operated at least once a year. Caution should be
taken to ensure that (
1 ) no one is in front of or around
the outlet of the temperature-pressure relief valve dis­
charge line, and {
2 ) the water manually discharged will
not cause any bodily injury or property damage
because the water may be extremely hot.
If after manually operating the valve, it fails to complete­
ly reset and continues to release water, immediately
close the cold water inlet to the water heater, follow the
draining instructions, and replace the temperature-pres­
sure refief valve with a new one.

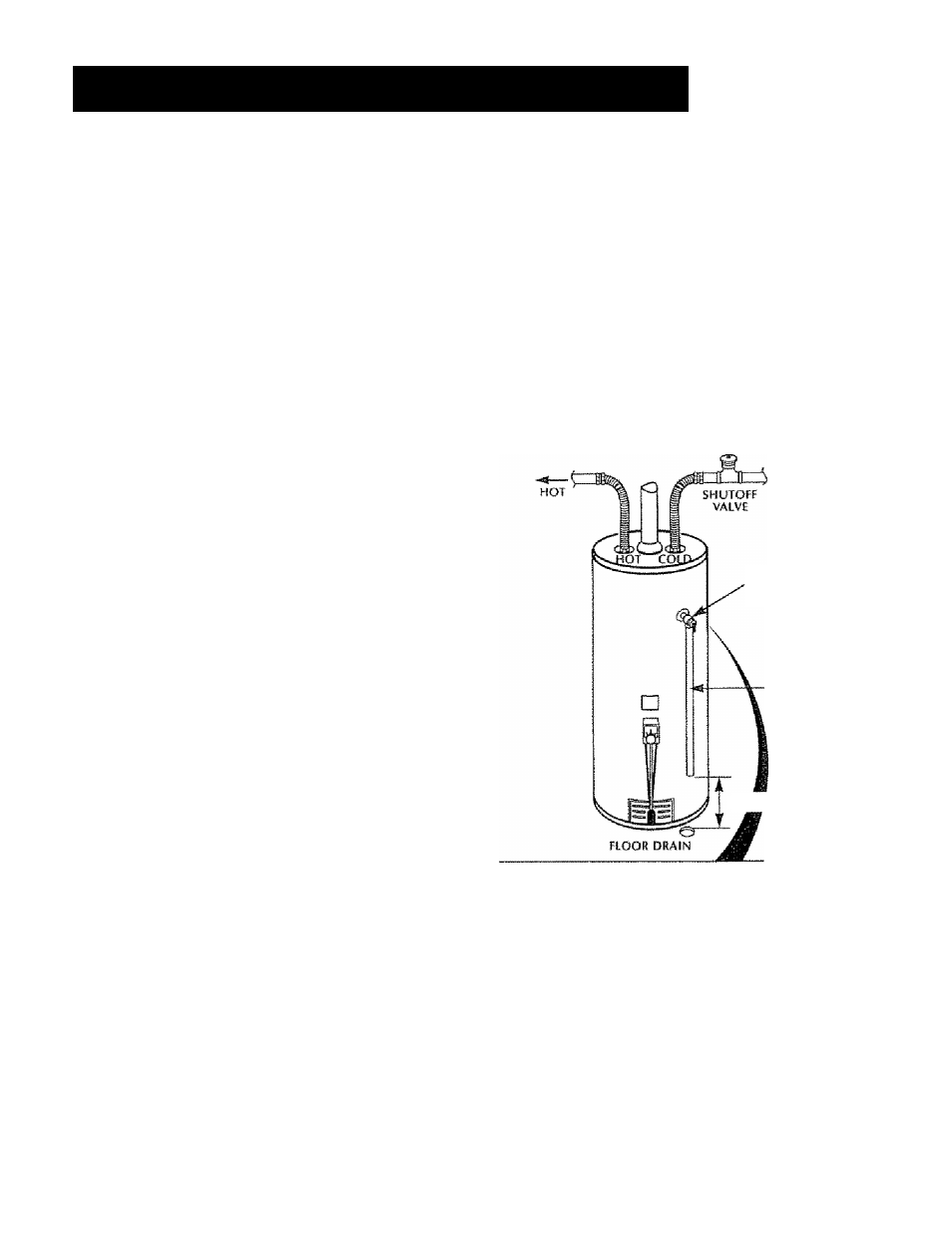

COLD
TEMPERATURE-PRESSURE
RELIEF VALVE
DISCHARGE PIPE
(Do not cap or plug)
r AIR CAP
RELIEF VALVE OPENING
AT THE TIME OF MANUFACTURE, THIS WATER HEATER WAS PROVIDED
WITH A COMBINATION TEMPERATURE-PRESSURE RELIEF VALVE LISTED
AS COMPLYING WITH THE STANDARD FOR RELIEF VALVES AND AUTO­
MATIC GAS SHUTOFF DEVICES FOR HOT WATER SUPPLY SYSTEMS,
ANSI 221 22. FOR SAFE OPERATION OF THE WATER HEATER. THE
RELIEF VALVE MUST NOT 8£ REMOVED FROM ITS DESIGNATED POINT
OF INSTALLATION OR PLUGGED -
YOUR LOCAL JURISDICTIONAL AUTHORITY, WHILE MANDATING THE USE
OF A TEMPEHATURE-PRESSURE RELIEF VALVE COMPLYING WITH ANSI
221,22 AND ASME, MAY REQUIRE A VALVE MODEL DIFFERENT FROM
THE ONE FURNISHED WITH THE WATER HEATER
COMPLIANCE WITH SUCH LOCAL REQUIREMENTS MUST BE SATISFIED
BY THE INSTALLER OR END USER OF THE WATER HEATER WITH A
LOCALLY PRESCRIBED TEMPERATÜRE-PHESSURE BELIEF VALVE
INSTALLED IN THE DESIGNATED OPENING IN THE WATER HEATER.
SEE MANUAL HEADING-'TEMPERATURE.PRESSUHE RELIEF VALVES"
FOR INSTALLATION AND MAINTENANCE OF RELIEF VALVE, DISCHARGE
PIPE AND OTHER SAFETY PRECAUTIONS
