NOTE: When properly tensioned, V-belt should deflect
about 1/2" under thumb pressure at mid-point between
pulleys.

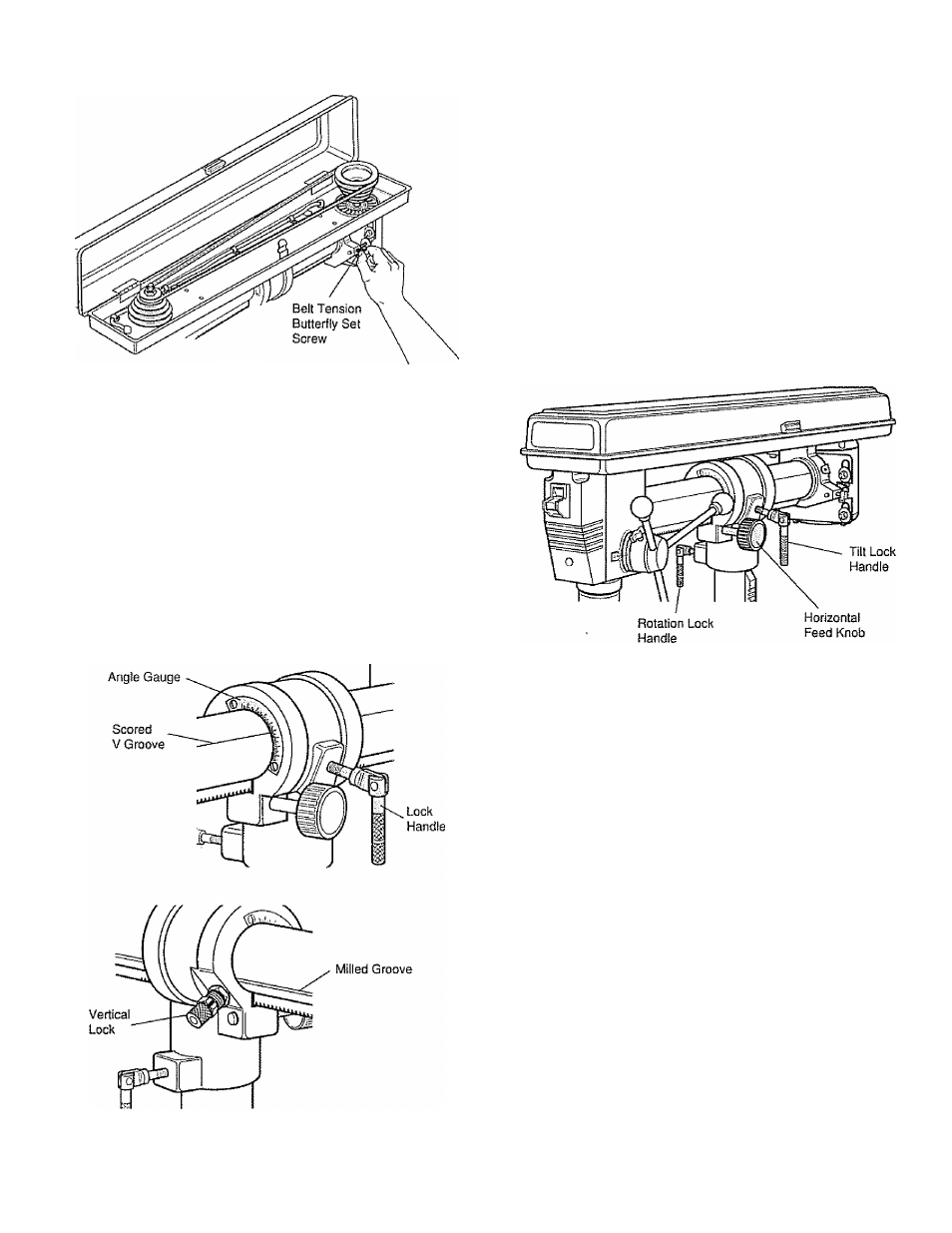

5, Tighten belt tension Butterfly Set Screw and close Pulley
Cover,
Tilting Drill Head
The Drill head can be lilted to drill up to 45 degrees clockwise
and 90 degrees counter-clockwise of vertical. To lilt Drill
head, loosen Lock Handle on right side of Column head and
pull out and turn plunger of Vertical Lock (REF 87) Use
Angle Gauge (REF 85) on Column head and full length
scored V groove on Horizontal Tube (REF 81) to set desired
angle. Lock In position using Lock Handle When returning
to vertical position, turn Vertical Lock plunger and allow It to
snap down onto Horizontal Tube, When vertical position Is
reached, plunger will pop into milted slot on Horizontal Tube,
Tighten Lock Handle to lock position.
Rotating Drill Head
The Drill head can rotate 360 degrees around the Column,
Take care when mounting Radial Drill Press to allow suffi­
cient clearance for full use of this feature. Loosen Lock
Handle on left lower area of Column Head. Rotate to desired
position and lock in place with Lock Handle.
Moving Drill Head In or Out
The Drill head can move in or out along Horizontal Tube
(REF 81) to drill large objects or move between holes without
unclamping workpiece. Loosen same Lock Handle as for tilt­
ing Drill head above Use Horizontal Feed Knob (REF 89) to
move Drill head in or out to desired position. Lock in place
with Lock Handle before drilling to prevent drill bit from talk­
ing" along the workpiece surface.
10
