OPERATION
KNOW YOUR HIGH PRESSURE WASHER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR HIGH PRESSURE WASHER.

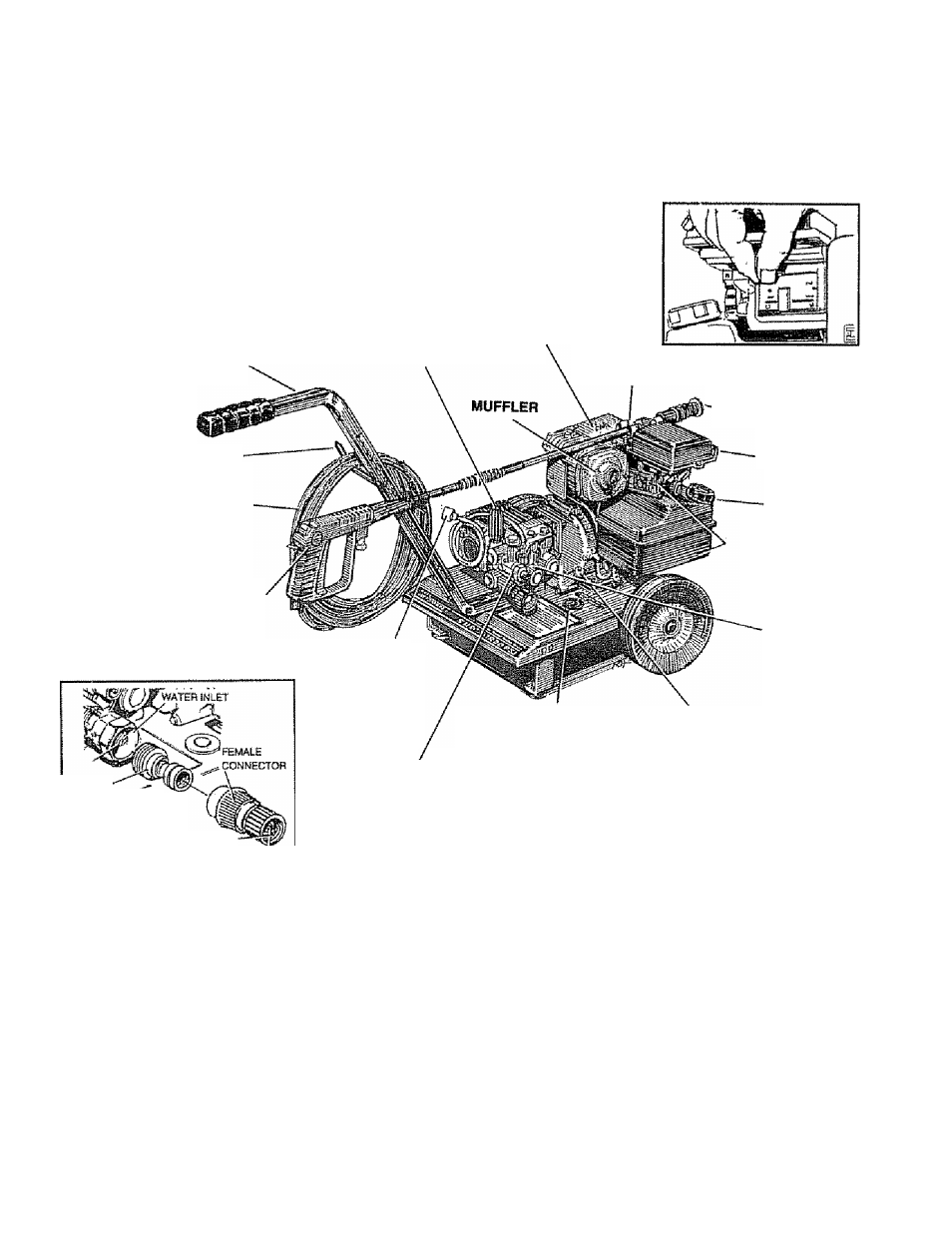

Compare the illustrations with your high pressure washer to familiarize yourself with the locations of various controls and
adjustments, Save this manual for future reference.
SPARKPLUG
GUIDE HANDLE
PRESSURE REGULATOR
CUP FOR WAND ENGINE RüN/STOP
STORAGE
CONTROL
ADJUSTABLE NOZZLE
WIRE SUPPORT
HIGH PRESSURE HOSE
GUN AND WAND ASSEMBLY
AIR CLEANER
GASOLINE CAP
CARBURETOR
PUMP
DETERGENT PICK UP TUBE
AND FILTER
MALE
,
CONNECTOR^
iNLET SCREEN '
SPARE NOZZLE
STORAGE GROMMET
OIL FILL OPENING
HIGH PRESSURE OUTLET
QUICK CONNECT
FIG. 8
PUMP — Develops high pressure.
pressure
REGULATOR — Allows you to adjust the
pressure of the outlet stream
ENGINE ON-OFF CONTROL — Sets engine in starting
mode for recoil starter; turns OFF running engine
RECOIL STARTER -- Used for starting the engine manu
ally.
AIR CLEANER - Dry type filter element limits the amount
of dirt and dust that gets in the engine.
GUN AND WAND ASSEMBLY—Controls the application
of water onto cleaning surface with trigger device. Includes
safety latch.
HIGH PRESSURE HOSE — Connect one end to water
pump and other to spray wand.
INTAKE SUPPLY FILTER — Filters inlet water supply.
DETERGENT PICKUP TUBE AND FILTER — Mixes water
and detergent in outlet water flow.
HIGH PRESSURE OUTLET — Connection for high pres
sure hose-
QUiCK-CONNECT — Easy connection for intake water
supply.
