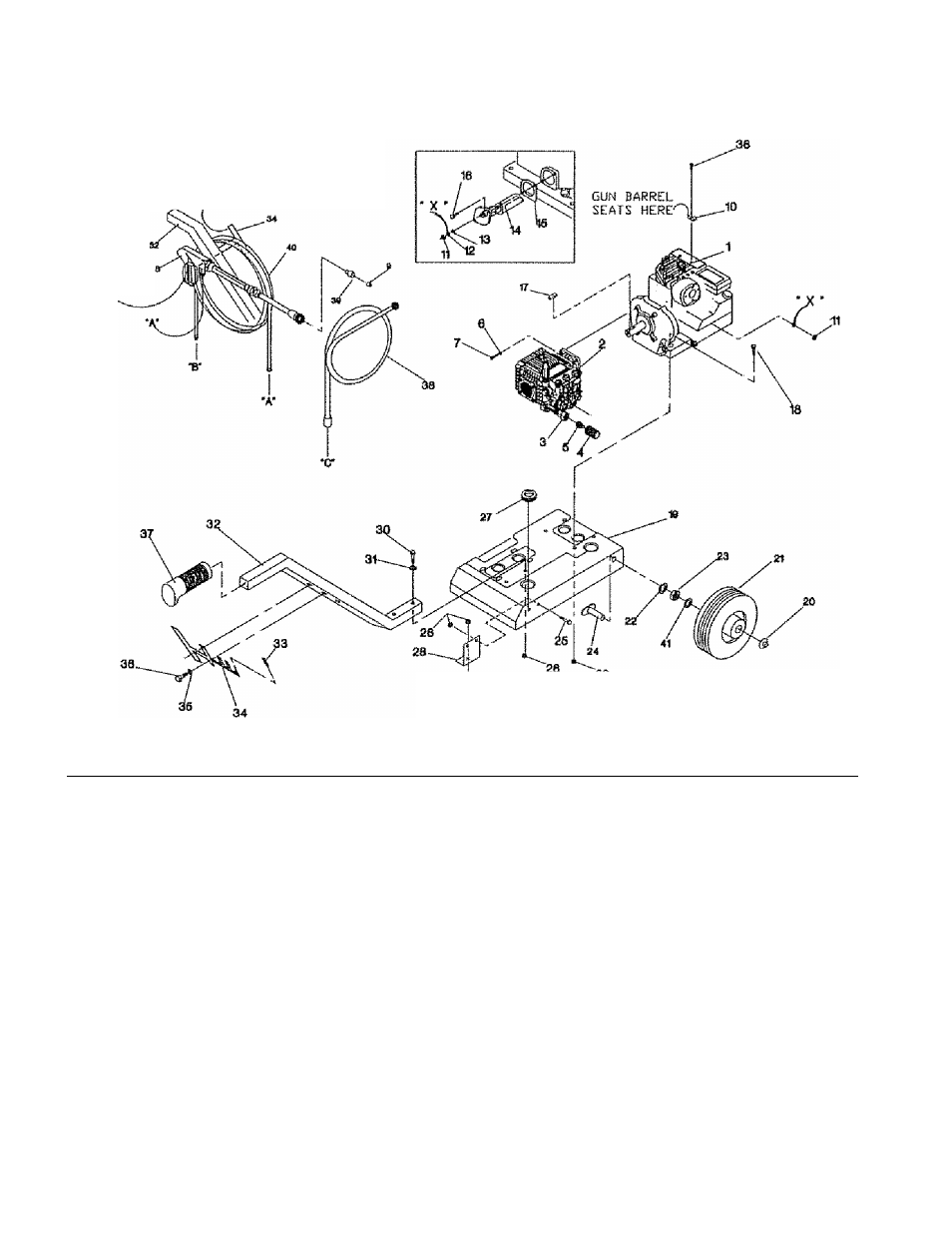

CRAFTSMAN 1800 PSI HIGH PRESSURE WASHER 580.751510 REPAIR PARTS
COILED HOSE IS AFFIXED TQ
.BRACKET IN THIS MANNER
GUM HANDLE
SEATS IN THIS
MANNER
28—0
ITEM PART NO. DESCRIPTION ITEM PAiHT NO* DESCRIPTION
1 95998 5 hp Briggs & Stralion Engine (1 req) 22 22246 5/8" Lock Washer (2 req)
2 87628 Pump (1 req.) 23
OKQQi
Jam Nut (2 req)
3 89647 Brass Water Hose Connector (1 req.) 24 93728 Wheel Axle (2 req.)
4 96016 Quick-connect, Femaie (1 req) 25 39253 M8-1.25 X 20mm Capscrew (6 req)
S 9B456 Quick-connect, Male (1 req.) 26 M8-1.25 Flange Nut (12 req.)
6 92479 5/16“ Conical Lode Washer (4 req .) 27 92235 Rubber Grommet (1 req )
7 j£,l£<5vO 5/16"-24 X 3/4” Capscrew (4 req) 28 91092 Support Leg (2 req)
6 95567 Gun And Wand Assembly (1 req) 29 07841 Shock Mount (2 req)
9 92661 Replacement Nozzle [blue] (1 req) 30 57821 M8-1.25 X 40mm Screw (2 req)
10 65852 Spring Clip (1 req) 31 50190 MB X 25 Flat Washer (2 req)
11 22471 #8-32 Nut (2 req) 32 91093 Guide Handle (1 req)
12 91842A Low Oil Shutetown Wire <1 req) 33 92067 Vinyl Cap (1 req)
13 23365 #8 Shakeproof Washer {1 req) 34 Gun And Hose Holder (1 req)
14 88977 Low Oil Shutdown (1 req) 35 96633 #10 Flat Washer (2 req)
15 91841 Low Oil Shutdown Gasket {1 req) 3$ 86292 #10 Seif-drilling Screw (3 req)
16 32713 #10-32 X 5/8“ Taptite Screw (2 req) 37 77584 Handle Grip (1 req)
17 0B314 3/16“ Sq. X1-7/8" Key {1 req) 38 89800 Replacement Chemical
18 39414 M8-1 25 X 35mm Capscrew (4 req) Injador Hose (1 req)
19 95902 Mounting Base (1 req ) 39 95587A Adjustable Nozzle (1 req)
20 75402 1/2" Dia. Push Nut {2 req)
40 91630 3/8” i.D. X 25’ Hose Assembly (1 req)
21 91094 2-1/4“ X 8“ Wheel {2 req ) 41 49808 M12 Flat Washer (2 req.)
96596 Owner’s Manual [not shown] (1 req)
J9 Drawing No. 96597
