TRACTOR - - MODEL NUMBER 917.251470

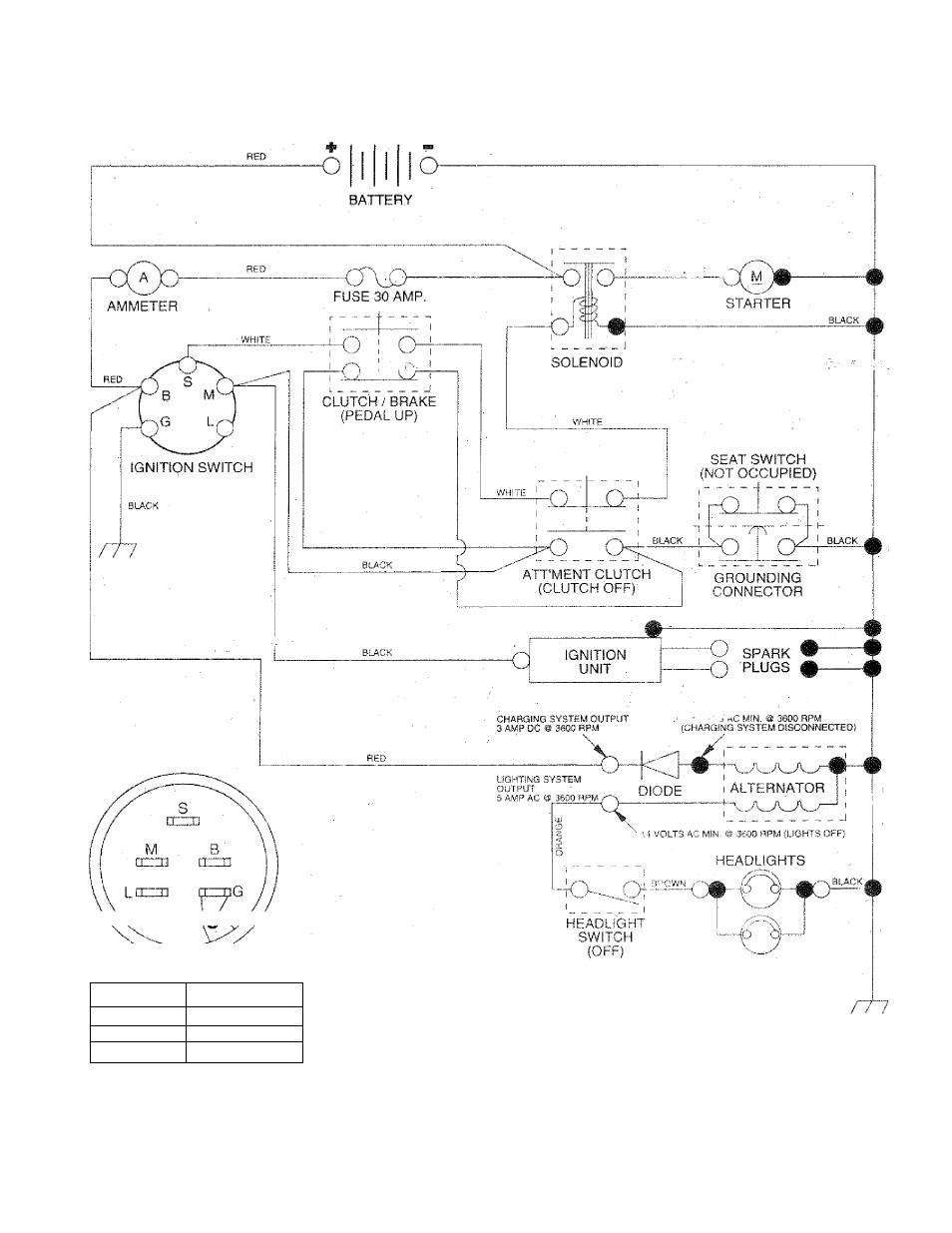

SCHEMATIC
BLACK
IGNITION SWITCH
posmoN CIRCUIT
OFF M + G
■ ON B + L
START 8 + S + L
NOTE
YOUR TRACTOR !S
equipped with a special
ALTERNATOR SYSTEM,
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED, AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
NON-REMOVABLE
CONNECTIONS REMOVABLE
CONNECTIONS
WIRING INSULATED CUPS
NOTE; IF WIRING INSULATED
CLIPS. WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
