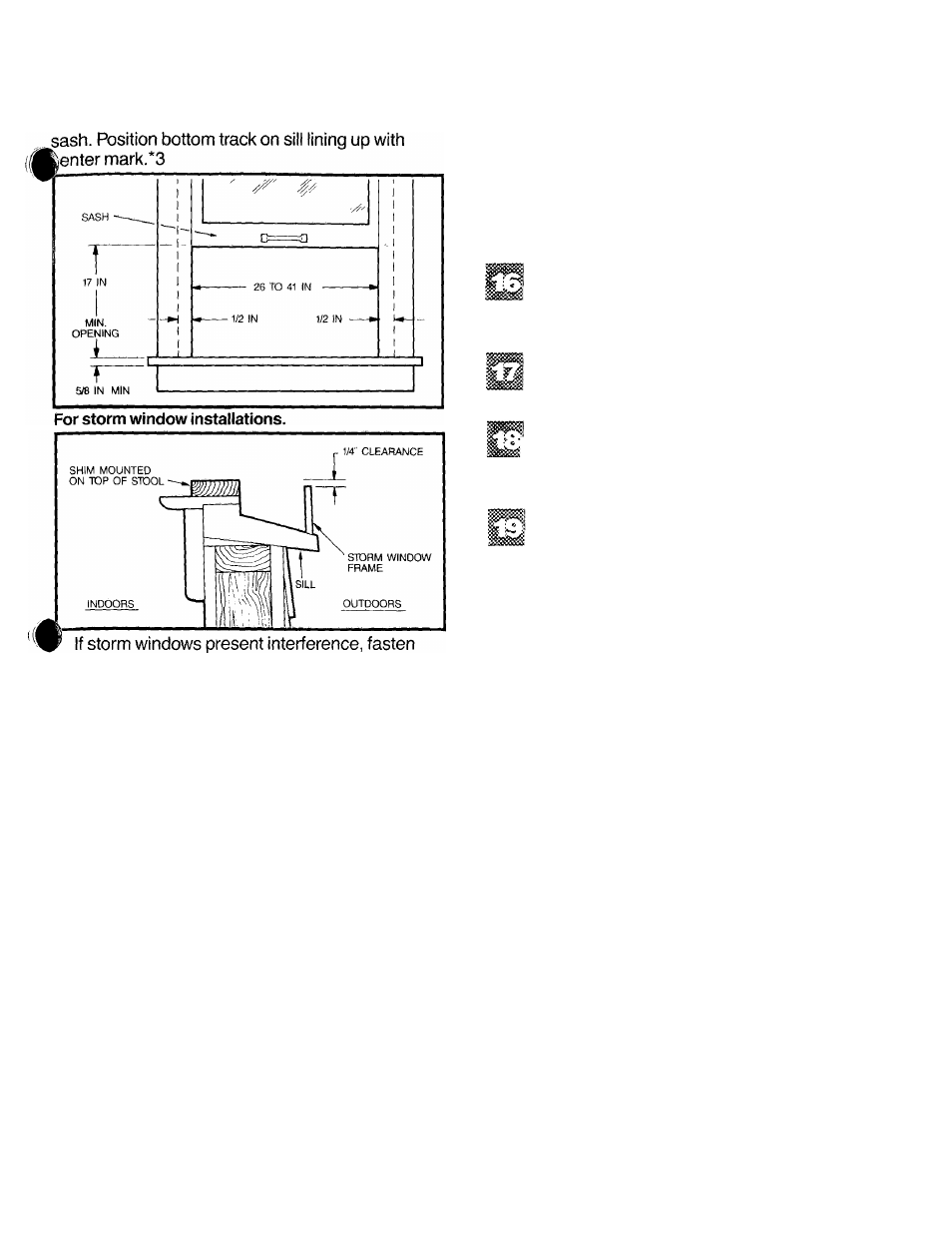

m Measure center of window on sash and sill.
Make a small pencil mark to indicate spot. Raise
a 2" wide wood strip to window’s sill. Thickness of
wood strip should equal height of storm window’s
ledge. By inserting wood strip, you will create a
level surface for unit installation.
Make pencil marks through all holes in bottom
track while track is positioned on window sill.
Remove track and drill three holes in window
sill at marked spots.
Screw track onto sill using 3 short screws.
SC
*3 If your window width exceeds our maximum recommen­
dation, then your unit will require additional support.
1
Slide wing panels from unit mounting kit into
kit’s upper guide, with drain holes on bottom of wing
panels facing outward.
i Slip lower portion of connected wing panels
into bottom track now on sill.
^ Stretch wing panels out on both sides to meet
window frame.
Lower window sash onto upper guide piece.
___ I With sash firmly down upon upper guide,
make a pencil mark on lowered window sash
through center hole on upper guide piece.
I Drill hole at mark and insert provided short
screw. DO NOT completely tighten screw.
Move accordion folds aside to reveal holes on
sides of wing panels. Use previous marking tech­
nique (Step #11) and drill holes in pencil marked
spots. Secure wing panels in sash tracks by insert­
ing long screws in drilled holes and tightening.
Remove paper backing from narrow seal strip
in unit mounting accessory kit and fasten strip to top
of casing, aligning with pre-drilled holes. Fasten top
channel to top of casing using four screws, inserted
upwards from inside casing.
msM Remove screw inserted through center hole of
upper guide in Step #19. This aliows for freedom of
movement in future steps. DO NOT RAISE SASH.’'4
*4 When cabinet is installed in window, using proper installa­
tion steps, unit is properly pitched towards he outdoors to
allow for condensation runoff. An optional Accessory External
Drain Kit is available to route excess unit condensation away
from building’s exterior. Contact an authorized Carrier Dealer,
or call 1-800-CARRIER for informa^on.
<•
