UNIT WITH FILTER
REMOVED

CONTROL BOX ACCESS PANEL,
COMPRESSOR, LOW S HIGH
PRESSURE SWITCH a SERVICE
PORT CONNECTION ACCESS

JUNCTION BOX

CONDENSER
SIDE ACCESS
PANEL

FILTER DRIER AND
CAPILLARY TUBE ACCESS

FILTER

CONDENSER MOTOR
AND BLOWER ACCESS ALSO
PROVIDES ACCESS FOR
CLEANING CONDENSER COIL

EVAPORATOR MOTOR
AND BLOWER ACCESS ALSO
PROVIDES ACCESS FOR
CLEANING EVAPORATOR

CONTROL BOX

EVAPORATOR MOTOR

CONDENSER MOTOR 8'
BLOWER ASSEMBLY

ACCESS DOORS

HIGH-PRESSURE
SWITCH

FILTER DRIER

CONTROL BOX

(OPEN)

EVAPORATOR COIL

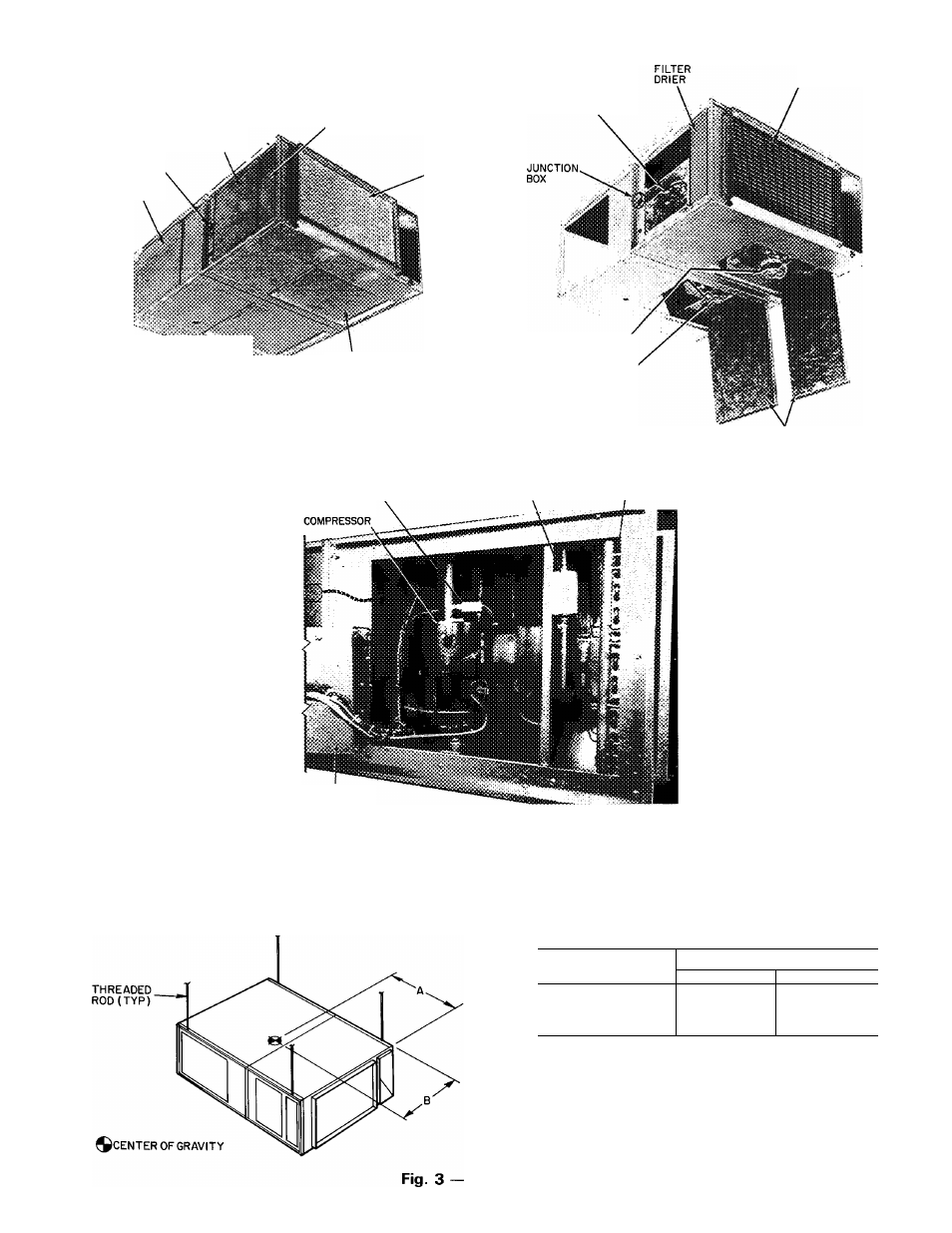

Fig. 2 — Component Locations

CENTER OF GRAVITY

UNIT 50AH

DIMENSIONS

(In.)

024

29 0

25 6

036

28 8

26 0

048

29 0

27 0

060

28 8

26 8

NOTE: Fasten threaded rods through holes in end frames as shown
Use 2 rods on each side of unit for a total of 4

CAUTION!

All panels must be in piace when rigging

Rigging Details
