50K
INSTALLATION
Carrier
220V CONTROL
CIRCUIT FOR
CONDENSER FAN
P.L, - PILOT LIGHT
O.L. - OVERLOAD
C - COMP. STARTER
F - FAN STARTER
CH - CRANKCASE HEATER
CHR - CRANKCASE HEATER
RELAY
m
FI-
^Fl-
O.L.
-U7T7
-o------FAN MOTOR
lilib
O.L.
COMP.
♦

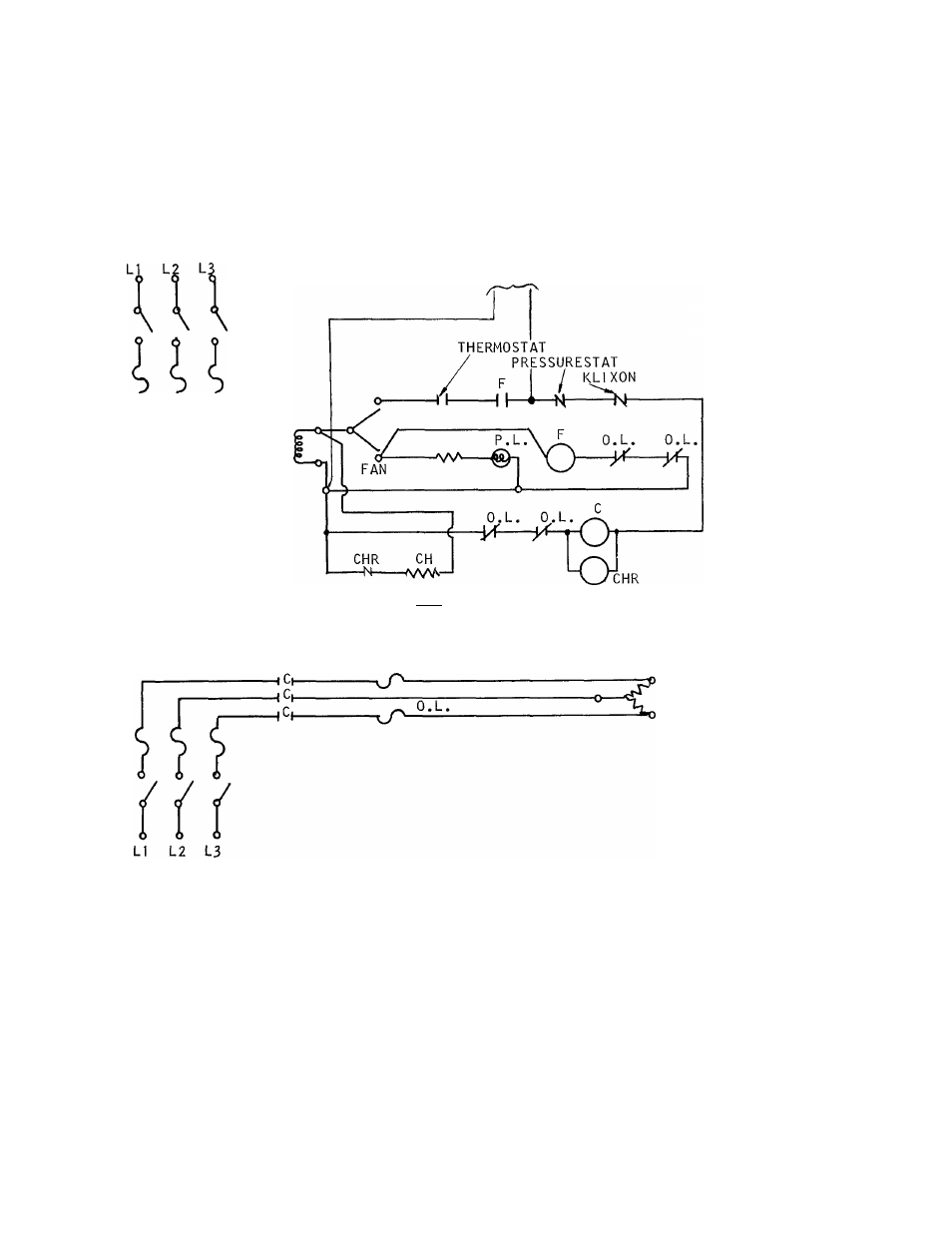

FIG. 12 - 50K12, SINGLE COMPRESSOR (440/550-3-60)
SCHEMA.TIC DIAGRAM, CONDENSERLESS
12
