INSTALLATION

50K

INTERNAL WIRING

FIELD WIRING

TO THERMOSTAT

NOT FURNISHED

BY CARRIER

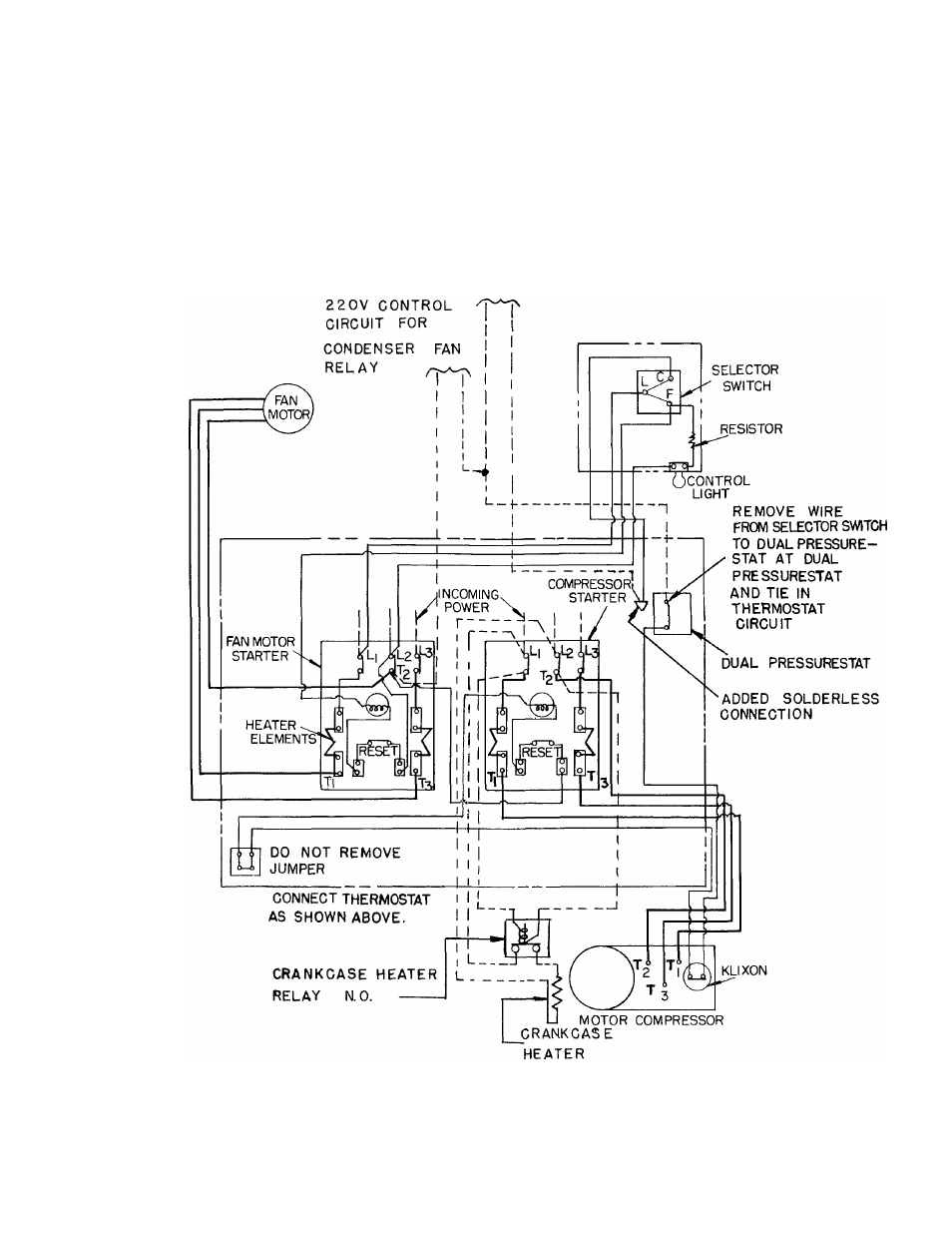

FIG. 11 - 50K12, SINGLE COMPRESSOR (208/220-3-60), CONDENSERLESS
