USER MANUAL - OPTIMA UPS 1K-3K (ENGLISH)
_________________________________________________________________________________________________________________________________
www.xmart-ups.com 1406-OPTIMA 1K-3K - 13
9. UPS CONFIGURATION
Configuration menu is activated by selecting SELECT push button at front panel during 5 seconds or longer. UPS must be connected to
input AC source but in stand-by mode (powered off).
You can navigate in configuration menu by using
  keys in front panel.

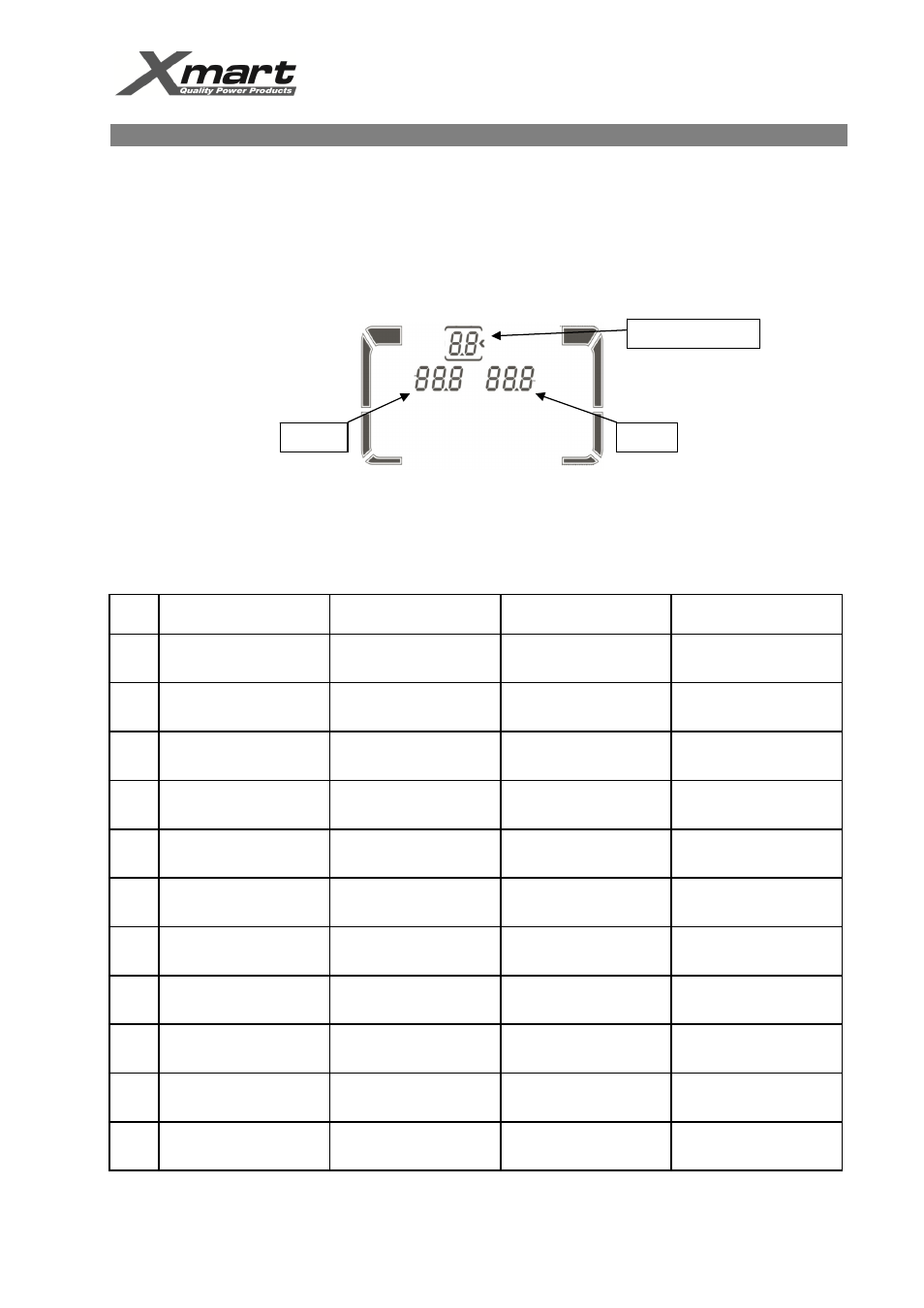

Each configuration screen is identified by 2 digits number: 01, 02, etc
On each screen 2 parameters are indicated (PAR-1 and PAR-2):
IMPORTANT NOTE::
EVERY UPSFAMILY HAS ITS OWN CONFIGURATION MENU WITH DIFFERENT FUNCTIONS AND OPTIONS
CONFIGURATION MENU BY MODEL :
MENU OPTIMA
1K / 1.5K / 2K / 3K
OPTIMA
1K-HB / 2K-HB / 3K-HB OPTIMA (F)
1KF / 2KF / 3KF
OPTIMA
1KFCN / 2KFCN / 3KFCN
0 ESC MENU
(EXIT screen)
ESC MENU
(EXIT screen)
ESC MENU
(EXIT screen)
ESC MENU
(EXIT screen)
1 Output Voltage Setting Output Voltage Setting Output Voltage Setting Output Voltage Setting
2 Frequency Conversion:
Enable / Disable Frequency Conversion:
Enable / Disable Input Range (Vac) for
Normal Mode Input Range (Vac) for
Normal Mode
3 Output Frequency Setting
(with CF Enable)
Output Frequency Setting
(with CF Enable)
ECO mode:
Enable / Disable
ECO mode:
Enable / Disable
4 ECO mode:
Enable / Disable ECO mode:
Enable / Disable Input Range (Vac) for:
ECO mode Input Range (Vac) for:
ECO mode
5 Input Range (Vac) for:
ECO mode Input Range (Vac) for:
ECO mode BYPASS mode:
Enable / Disable BYPASS mode:
Enable / Disable
6 BYPASS mode:
Enable / Disable
BYPASS mode:
Enable / Disable
Input Range (Vac) for:
BYPASS mode
Input Range (Vac) for:
BYPASS mode
7 Input Range (Vac) for:
BYPASS mode Input Range (Vac) for:
BYPASS mode N/A Maximum runtime for:
General Outlets
8 Programmable Outlets:
Enable / Disable Maximum runtime for:
General Outlets N/A Input Range (Hz) for:
BYPASS mode
9 Runtime setting for:
Programmable Outlets
N/A N/A AH value setting for
internal batteries
10 Maximum runtime for:
General Outlets N/A N/A N-G Voltage Control:
Enable / Disable
FUNCTION: 00 - 10
PAR-1 PAR-2
