USER MANUAL - OPTIMA UPS 1K-3K (ENGLISH)
_________________________________________________________________________________________________________________________________
www.xmart-ups.com 1406-OPTIMA 1K-3K - 11

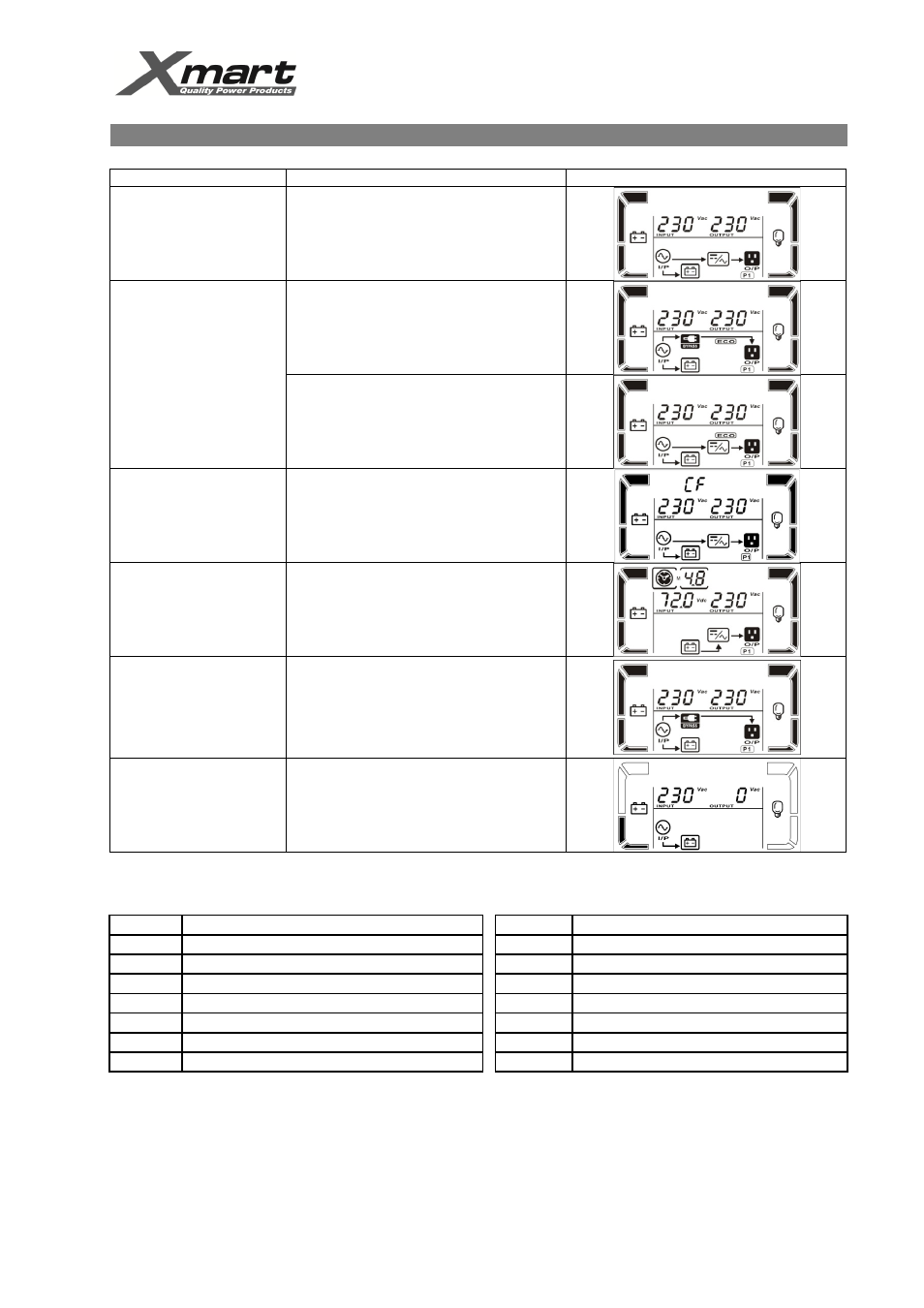

7. OPERATION MODES AND LCD
Operation Mode Description LCD
ONLINE * UPS ON
* Input AC source OK
* UPS output generated by inverter
ECO
* UPS in ON
* ECO mode activated.
* Input AC source is OK
* UPS output feed from AC input to save energy.
* UPS in ON
* ECO mode activated.
* Input AC source out of acceptable range
* UPS output generated by inverter.
FREQUENCY CONVERTER
FUNCTION CF function enabled to generate output frequency
as selected.
*** This function is available only for Full Bridge
models (Optima and Optima HB). Not available
for Optima F and Optima F-CN.
BATTERY MODE
When AC input source is out of range Ups goes
to battery mode to supply output from taking
energy from batteries.
BYPASS If UPS is overloaded by big consuming load
connected at UPS output, UPS changes to
BYPASS mode feeding outlets from input AC
source. This mode can be set also by front panel
(by selecting “ON/MUTE” + “SELECT” at same
time).
STAND-BY * UPS is OFF
* No power in UPS outlets.
* Input AC source is OK.
* Batteries are been charged
TEXT MEANING TEXT MEANING
ENA Enable (Habilitado) EP EPO (Emergency Power Off)
DIS Disable (Des-habilitado) FA Fan (Ventilador)
ESC Escape (Salir) TP Temperature (Temperatura)
HLS High Limit for Baypass (Límite Alto para Bypass) CH Charger (Cargador de Baterías)
LLS Low Limit for Baypass (Límite Bajo para Bypass) FU Frecuencia de entrada en modo BYPASS
BAT Battery (Batería) EE Error en la memoria EOPTIMAM del UPS
CF Converter (Convertidor de Frecuencia) BAH Valor en AH (Amperios-Hora) de las baterías
