3.5 130 INPUT EXPANSION SPECIFICATION
DC Supply 8.0 to 35 V Continuous.
Cranking Dropouts Able to survive 0 V for 50 mS, providing supply was at least
10 V before dropout and supply recovers to 5V
Max. Operating Current 150mA at 12V. 81mA at 24V. This maximum current
includes connection of the P549 remote annunciator, which
is powered by the P130.
Dimensions 171mm x 115mm x 49mm ( 6¾” x 4½” x 2” )
Operating Temperature Range -30°C to +70°C
IP Rating of P130 IP20
Connector 2 max cable length to
549 remote annunciator  1000m with cable of 0.5mm 2 cross section
 500m with cable of 0.2mm 2 cross section (typical 4 core
burglar alarm/telephone wire)

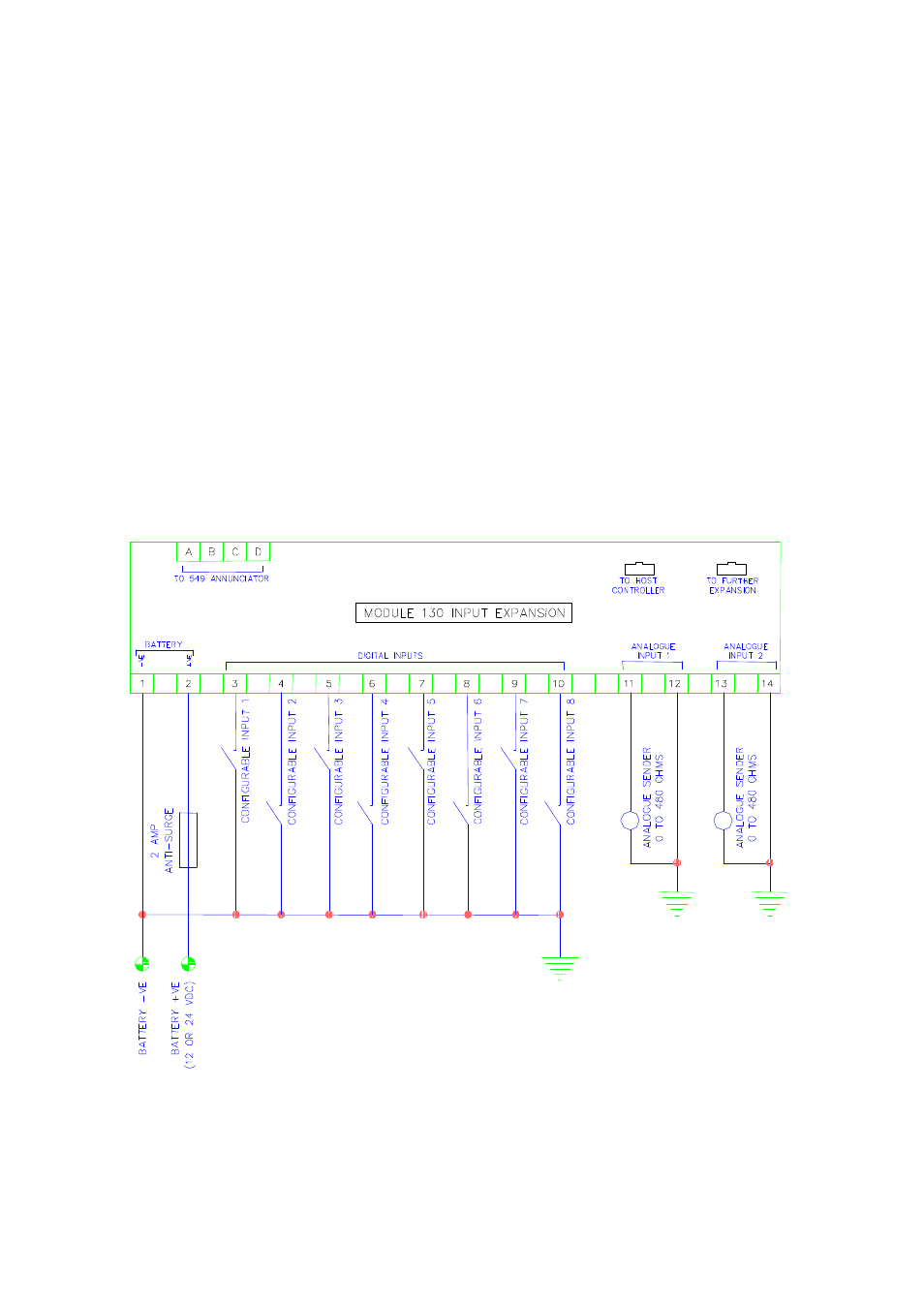

3.6 TYPICAL WIRING DIAGRAM
