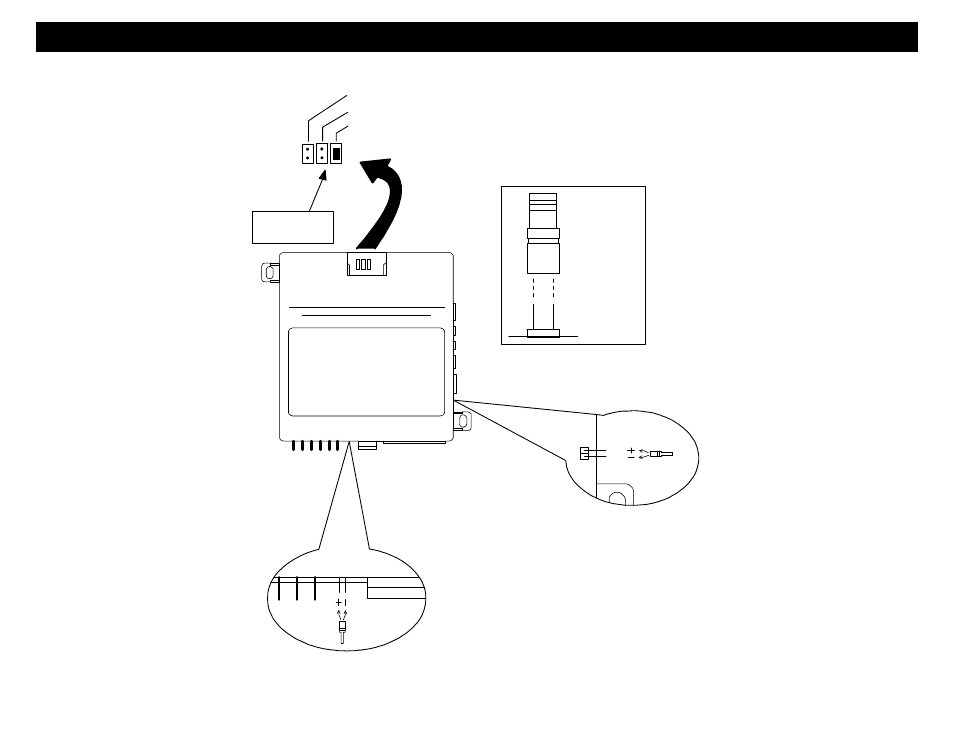

JUMPER PIN DIAGRAMS
JUMPER
PLUG
SIDE VIEW
JUMPER
PINS
JUMPERS:
PINK/WHITE = IGN #2 (DEFAULT)
PINK/WHITE = ACC #2
START 2, IGN2, ACC2
PINK WHITE for
GLOW PLUG
PINK WIRE:
Jumper Select for
Postive or Negative
Type "Wait" Circuits
SECURING JUMPERS
JUMPER
PARKING LIGHT
JUMPER
WHITE WIRE:
Jumper Select for
Postive or Negative
Type Light Circuits
PINK/WHITE = START #2
