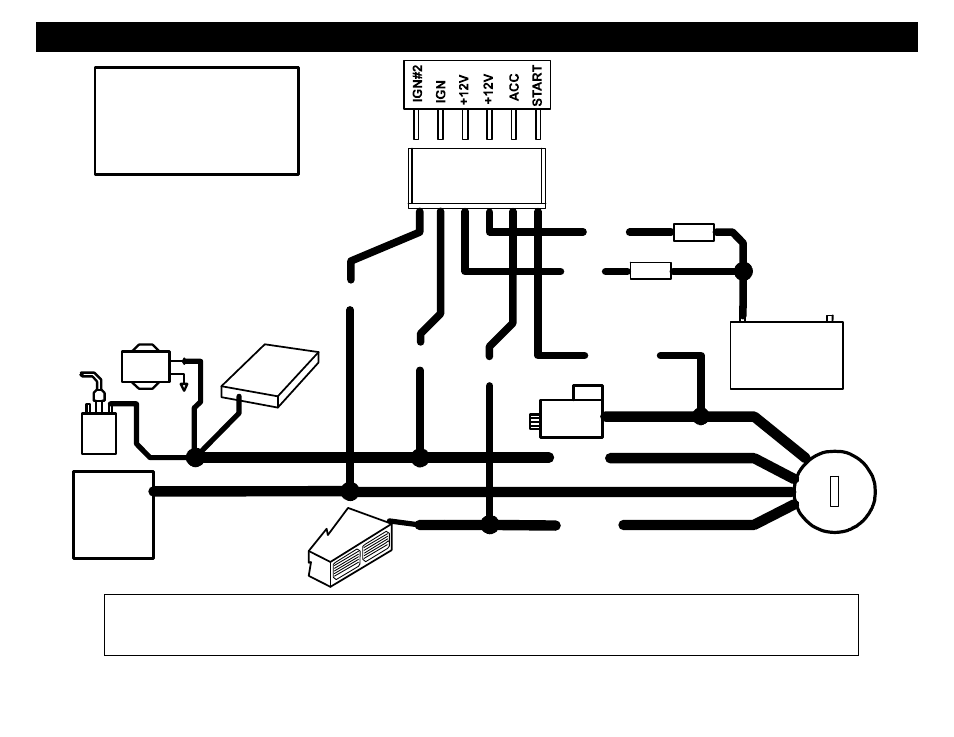

WIRING: 7-PIN HIGH-CURRENT CONNECTOR
FUSE RED
PINK/WHITE
30A
FUSE RED
30A
+ -
BROWN PINK
FUEL ENGINE
BATTERY
PUMP ECU GRAY
+ STARTER -
COIL
IGN
OR
ACC
HEAT / AC
Diagram not to scale,
for illustration purposes
only. Your vehicle may
differ.
IGN 2
ACC 2
IF NECESSARY
NOTE: Heavy duty/High Current Ignition circuits greater than 30 AMPS. Industrial vehicles, dual AC, etc. require high-
current relays. DO NOT use the outputs of the Remote Starter for High-Current systems or you will risk damaging the
unit and creating a hazardous condition! Use Part #CS-403 relays for circuits up to 70 amps.
