S1000/2000/3000
For Commercial HVAC Applications
Product overview
Viconics' latest generation S1000/2000/3000 series sensors have been especially developed for the VT7600
programmable and non-programmable thermostats as well as future Viconics thermostats. These robust
sensors have provide accurate and stable temperature reading using a 10 Kohm thermistor element.
The S3000 series include all wall/room sensors, the S2000 series include all the duct/outdoor air models, and
the S1000 include in duct change over sensing and submersible water sensing . Temperature averaging
applications using only two or three S3000 sensors can easily be done by setting the dip switches to the
appropriate position. It is to be noted that temperature averaging with the usual 4, 9, 16, 25, etc sensors can
also be done, both with the S2000 and S3000 series. See table below for specific model numbers:

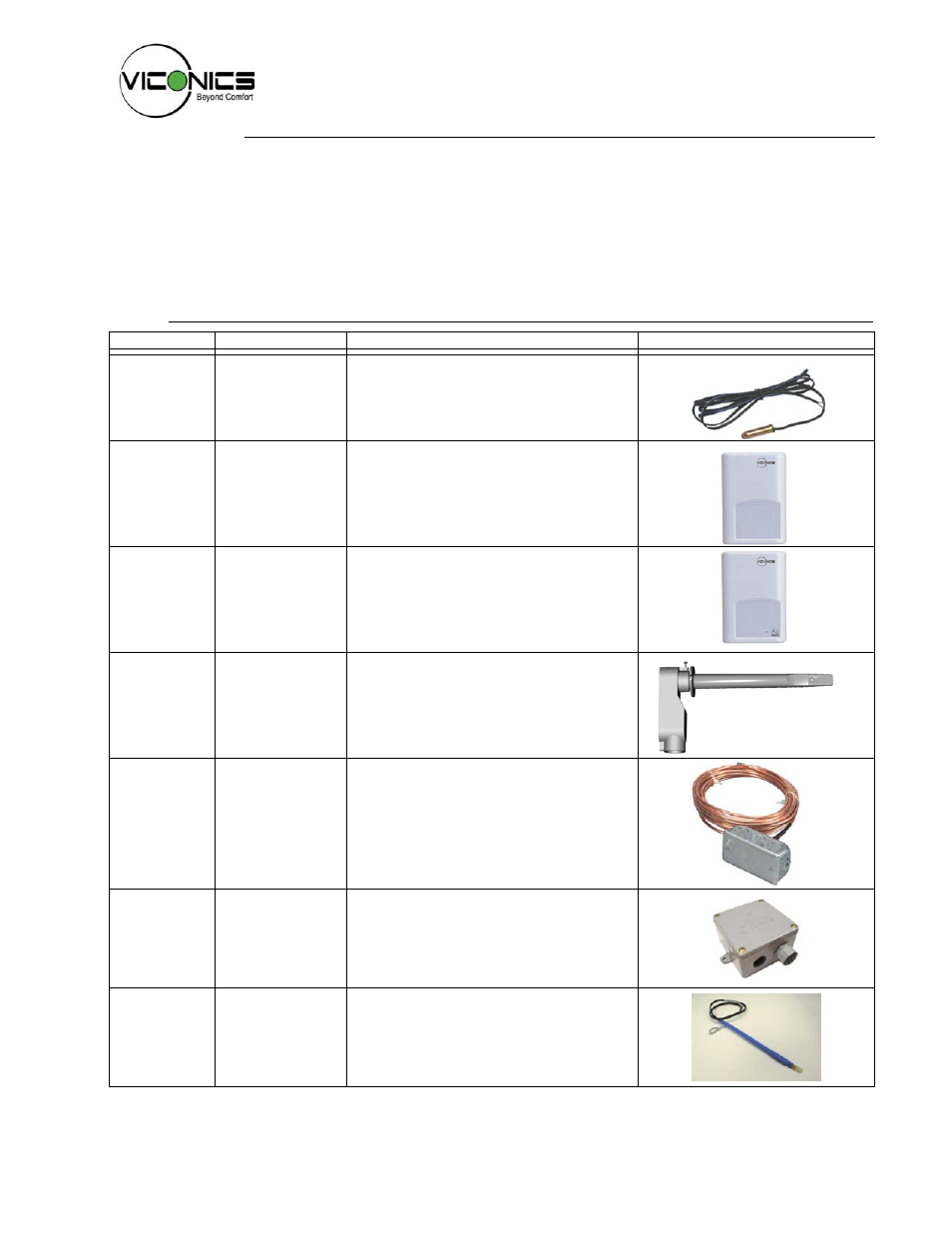

Models
Model: Description: Application: Picture:
S1010E1000 Capsule type
sensor for multi-
purpose use, ¼”
dia. capsule with
65 inch leads
• Remote sensing easy to dissimulate for
indoor and outdoor use
• Water temperature sensing strapped on
pipe or in an immersion well
S3010W1000 Room sensor • Remote room sensing
• 3 thermistors with 2 dip switches are
provided with each sensor for various
averaging combinations
S3020W1000 Room sensor with
temporary
override key and
occupancy LED • Remote room sensing with override key
and occupancy LED
• 3 thermistors with 2 dip switches are
provided with each sensor for various
averaging combinations
S2000D1000
Duct sensor with
junction box
• Remote return air temperature sensing
with the sensor mounted on the return air
duct.
• Outside air temperature sensing with the
sensor installed in the fresh air plenum.
• Supply air temperature sensor
S2060A1000
Duct averaging
sensor, with 6 ft
sensor
• Remote averaging discharge air
temperature sensing with the sensor
mounted on the supply air duct.
• Outside air temperature averaging
sensing with the sensor installed in the
fresh air plenum.
• Mixed air temperature averaging sensor
for economizer models with the sensor in
S2020E1000
Outside air
sensor, NEMA 4
enclosure
• Outside air temperature sensing with the
sensor installed directly exposed to the
elements.
• Sensor uses a water resistant NEMA 4
PVC enclosure for outdoor applications
S1010D1000
Duct Mounted
Change Over
Sensor
• Change Over Duct Sensing
• Mounting: Through hole in duct, with
eyelet
028-0106
