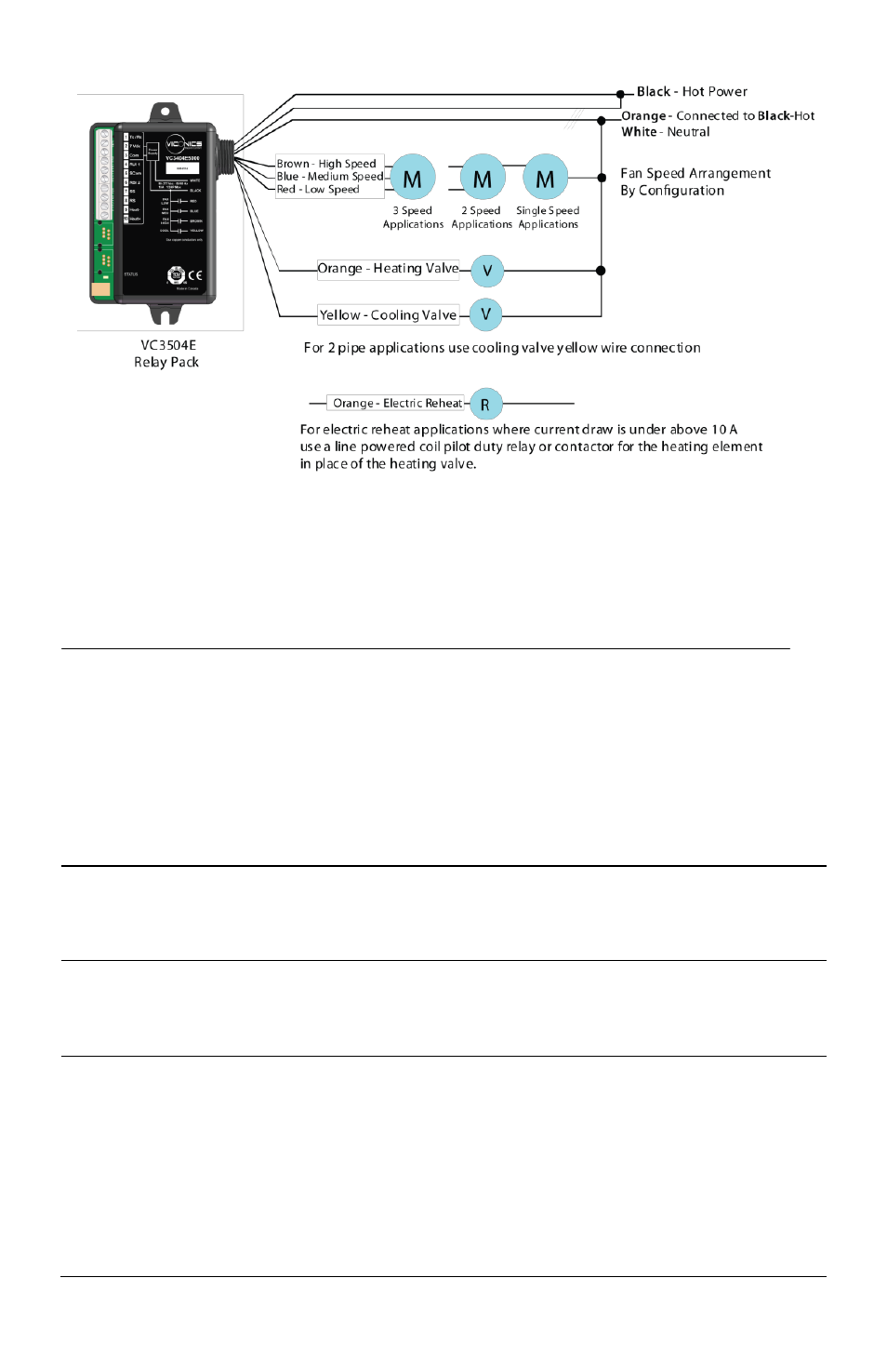

9 VC7300 Series-Installation Guide
T
YPICAL
W
IRING
E
XAMPLE
S
PECIFICATIONS
Power Supply: 90 to 277 VAC universal, 50-60 Hz
Fan line voltage contact electrical ratings: Brown, Blue, Red wires ½ HP maximum
Main heat and cool line voltage contact electrical ratings: Yellow wire 10A maximum
Isolated heat line voltage contact electrical ratings: Orange wires 10A maximum
Output ratings:
-Heat Valve: (Orange wire): 10 Amps @ 277 VAC maximum
-Cool Valve: (Yellow wire): 5 Amps @ 277 VAC maximum
-Fan: (red, blue, brown
wire(s)):
1/2 HP @ 277 VAC maximum
Operating conditions: 0C to 50C (32F ro 122F)
0% to 95% RH non-condensing
Approximate shipping
weight:
0.75lb (0.34kg)
Agency approvals all models:
cTUVus: UL 873 (US) and CSA C22.2 No. 24
(Canada)
CE: LVD 2006/95/EC (Europe Union)
CE: EMC 2004/108/EC (Europe Union)
CE for RF: RTTE 1999/5/EC
FCC: Compliant to: Part 15, Subpart B
FCC for RF: Compliant to: Part 15, Subpart C
