Viconics VT7200 Installation Manual (Previous Release 5000 Series PIR Ready) User Manual
Page 6
6

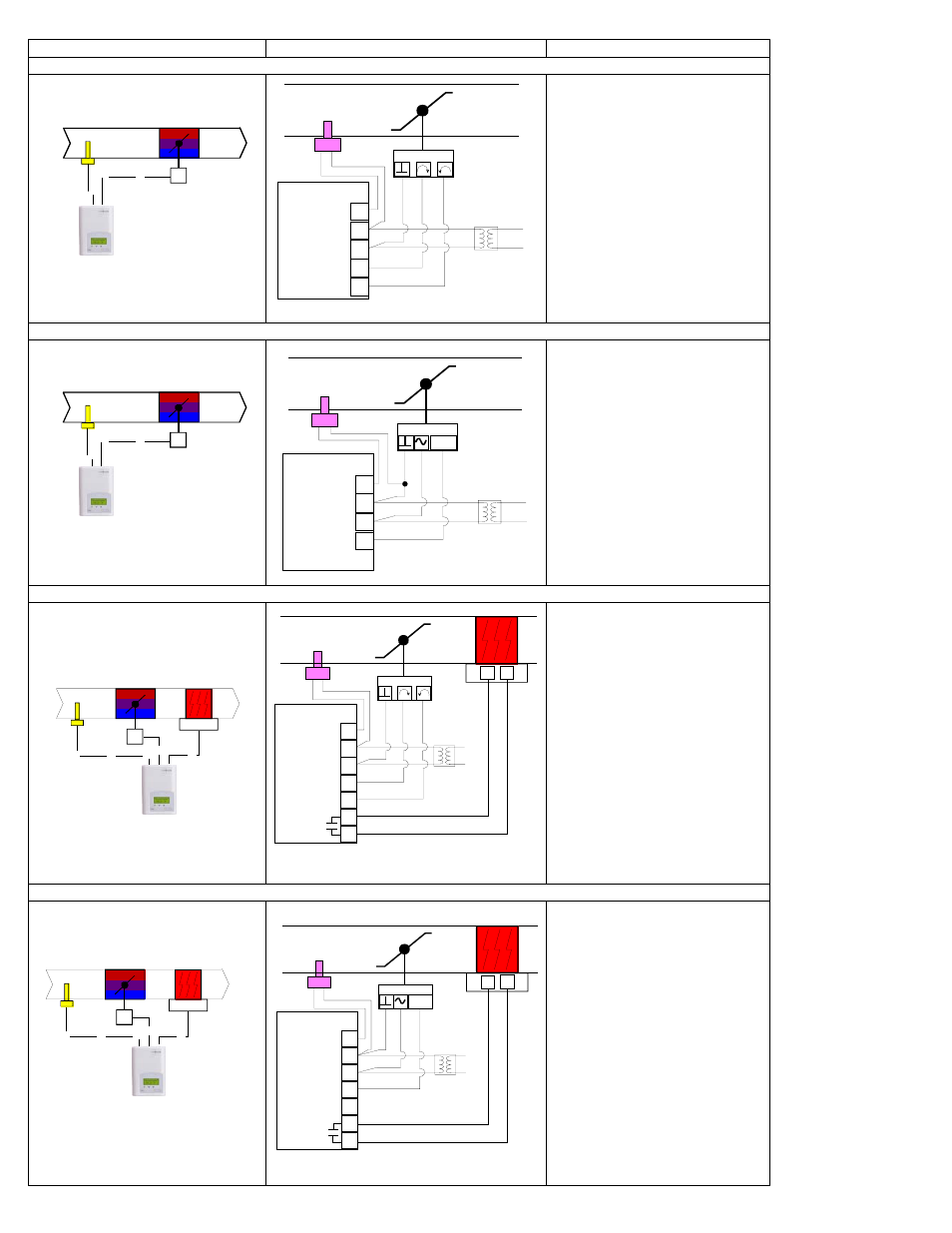

Schematic Wiring Settings
Pressure dependent VAV cooling / heating with changeover: VT7200C5x00(x) Floating actuator
Mandatory
•
Out1Conf = 2.0
•
CntrltTyp = Floating
•
FL time = as per actuator
If heat / cool auto-changeover
with a local discharge air
temperature sensor set:
•
SeqOpera = 0 Cooling only
•
UI3 = COS
Pressure dependent VAV cooling / heating with changeover: VT7200F5x00(x) Analog actuator
Mandatory
•
Out1Conf = 2.0
•
RA/DA = as per actuator
If heat / cool auto-changeover
with a local discharge air
temperature sensor set:
•
SeqOpera = 0 Cooling only
•
UI3 = COS
Pressure dependent VAV cooling / heating with changeover and reheat: VT7200C5x00(x) Floating actuator
Mandatory
•
Out1Conf = 2.0
•
CntrltTyp = Floating
•
FL time = as per actuator
If heat / cool auto-changeover
with a local discharge air
temperature sensor set:
•
SeqOpera = 2 Cooling with
Reheat
•
UI3 = COS
Pressure dependent VAV cooling / heating with changeover and reheat: VT7200F5x00(x) Analog actuator
Mandatory
•
Out1Conf = 2.0
•
RA/DA = as per actuator
If heat / cool auto-changeover
with a local discharge air
temperature sensor set:
•
SeqOpera = 2 Cooling with
Reheat
•
UI3 = COS
Changeover
Sensor
Room Temperature Control
Minimum & Maximum Position
Adjusted on the actuator
Modulating Floating
VAV Actuator
Supply air
temperature sensor
UI3 COS
0 V~ Com
24 V~ Hot
BO1 Open
BO2 Close
0 to 10 Vdc
Analog Actuator
Changeover
Sensor
Room Temperature Control
Minimum & Maximum Position
Adjusted on the actuator
Supply air
temperature sensor
0 to 10
Vdc
UI3 COS
0 V~ Com
24 V~ Hot
AO1
Changeover
Sensor
Room Temperature Control
Minimum & Maximum Position
Adjusted on the actuator
Modulating Floating
VAV Actuator
Heating and/or Cooling
& On/Off Duct Heater
Supply air
temperature sensor
1
C
UI3 COS
0 V~ Com
24 V~ Hot
BO1 Open
BO2 Close
BO5-Aux
BO5-Aux
Changeover
Sensor
Analog VAV Actuator
Heating and/or Cooling
& On/Off Duct Heater
Room Temperature Control
Thermostat
Minimum & Maximum Position
Adjusted on the actuator
Supply air
temperature sensor
1
C
0 to 10
Vdc
UI3 COS
0 V~ Com
24 V~ Hot
AO1
BO5-Aux
BO5-Aux
AO2
