8 | VT7682S Series-Installation Guide

If alarms are detected, they will automatically be displayed at the end of the status
display scroll.

During an alarm message display, the back lit screen will light up at the same time as
the message and shut off during the rest of the status display.

Two alarms maximum can appear at any given time.

The range of zones that can be in alarm is 1 to 253.
U
SER
I
NTERFACE
User configuring instructions menu
The VT7682S series Terminal Equipment Controller
feature an intuitive, menu-driven, back-lit LCD
display that walks users through the configuring
steps, making the configuring process extremely
simple. This menu is typically accessed by the user
to set the parameters such as temperature and time
events, system mode etc...
It is possible to bring up the user menu at any time
by depressing the MENU key. The status display automatically resumes after exiting the
user-configuring menu.
If the user pauses at any given time during configuring, Auto Help text is displayed to help
and guide the user through the usage and configuring of the Terminal Equipment
Controller.
Ex.:
Press yes key to change cooling temperature setpoint
Use the up or down arrow to adjust cooling setpoint

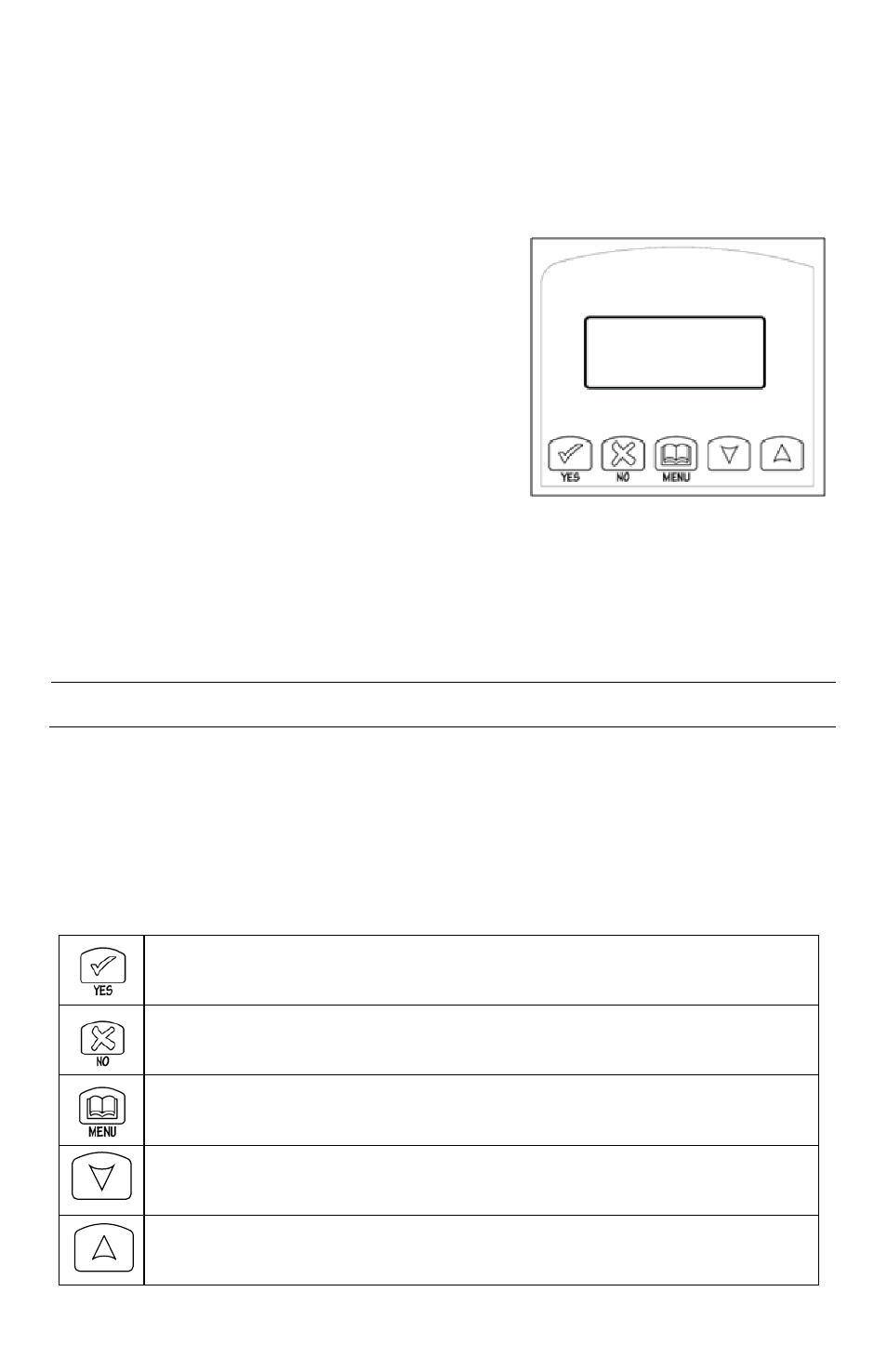

Local keypad interface
Each of the sections in the menu is accessed and configured using 5 keys on the
Terminal Equipment Controller cover.
The priority for the alarms is as follows:
The YES key is used to confirm a selection, to move onto the next menu item
and to manually scroll through the displayed information.
The NO key is used when you do not desire a parameter change, and to
advance to the next menu item. Can also be used to toggle between heating
and cooling setpoints.
The MENU key is used to access the Main User Menu or exit the menu.
The down arrow key is used to decrease temperature setpoint and to adjust
the desired values when configuring the Terminal Equipment Controller.
The up arrow key is used to increase temperature setpoint and to adjust the
desired values when configuring the Terminal Equipment Controller.
