Integration & Global Commands
The following figure shows which objects from the controller can be monitored and commanded from the
BAS front-end.
Manager Level Device Level

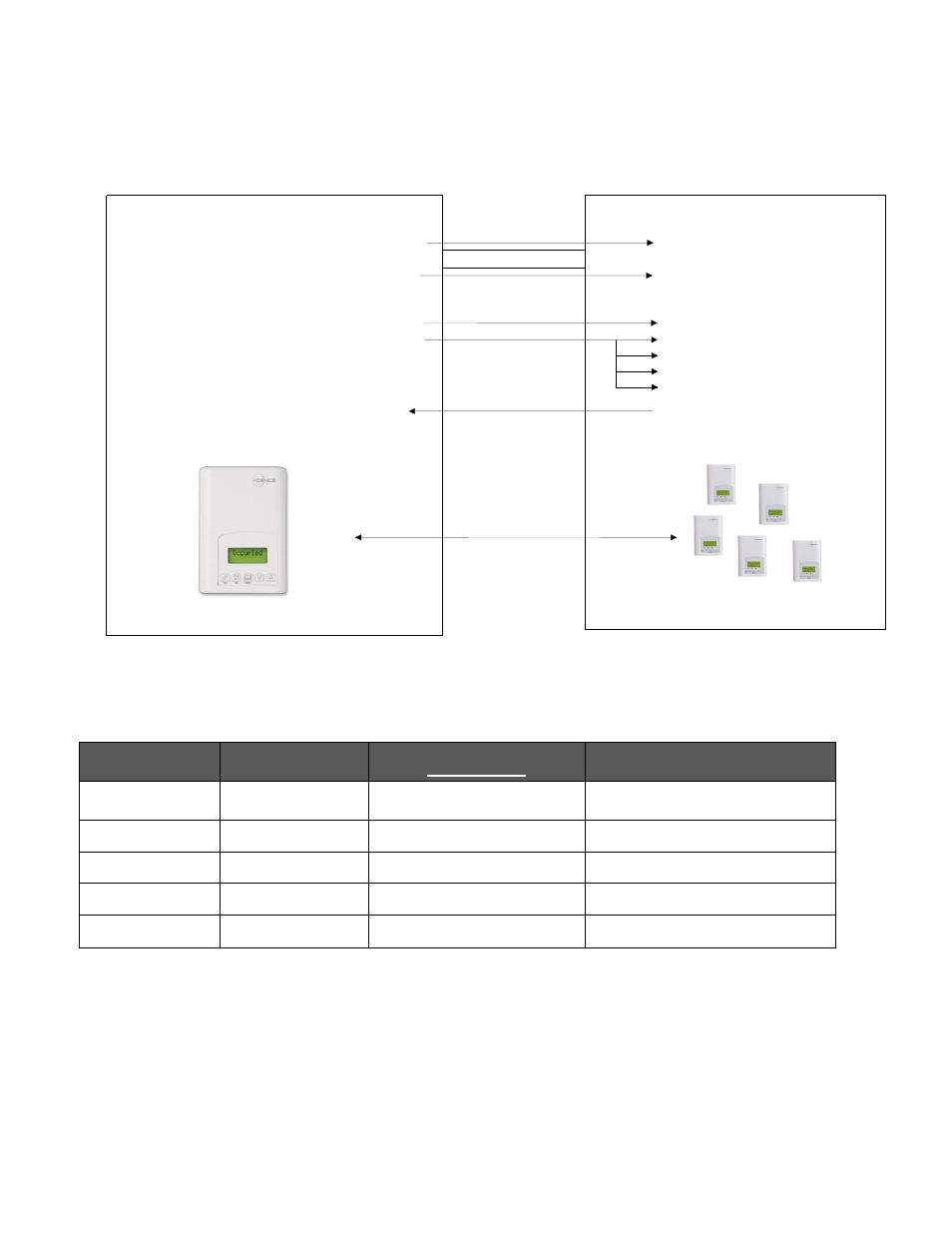

Figure 1: Global commands from a BAS front-end to a VT7600 series controller
1.6. Alarms
Sequence of auto-scroll status display of Wireless Central Manager
CLOCK
STATUS
SCHEDULE
STATUS
OUTDOOR TEMPERATURE
IF CONNECTED
ALARMS
Monday
12:00 AM
Occupied
Outdoor
x.x °C or°F
SetClock
Unoccupied Zone X**
Override Zone Y*
Zone Z**
Dup Zig
Duplicate Zigbee Address
** X, Y, Z is the MAC address of the zone that has the alarm.
*** Restart the network by changing the PAN ID (See troubleshooting guide at the end of this document).
Wireless Network (up to 60)
Wireless Central Manager
Wireless Controllers
(All Wireless Models)
Central Outdoor Temperature Outdoor Temperature
Schedule Occupancy Command
Setpoints Occupied Heating Setpoint
Unoccupied Heating Setpoint
Occupied Cooling Setpoint
Unoccupied Cooling Setpoint
Central system mode System Mode
Global commands all devices
(All Controllers)
Global commands specific devices
(Specific Controllers)
Central Global override Temporary Occupancy Time
Central Alarm See table below
