Integration – Graphic User Interface (GUI) Objects
The following objects should be typically used in a GUI:
nvoSpaceTemp
occupied_heat (nciSetpts);
unoccupied_heat (nciSetpts);
occupied_cool (nciSetpts);
unoccupied_cool (nciSetpts);
nvoOutdoorTemp
nvoEffectOccup
heat_output_primary (nvoUnitStatus)
cool_output (nvoUnitStatus)
fan (nvoSccStatus)
cool_1 (nvoSccStatus)
cool_2 (nvoSccStatus)
heat_1 (nvoSccStatus)
heat_2 (nvoSccStatus)
Local_RH_level (nvoRHStatus)
supply_RH (nvoRHStatus)
effect_reset_RH_setpt (nvoRHStatus)
PI_demand_humid_output (nvoRHStatus)
dehumid_active (nvoRHStatus)
service_alarm (nvoSccStatus)
filter_alarm (nvoSccStatus)
d1_direct (nvoSccStatus)
frostpro_alarm (nvoSccStatus)

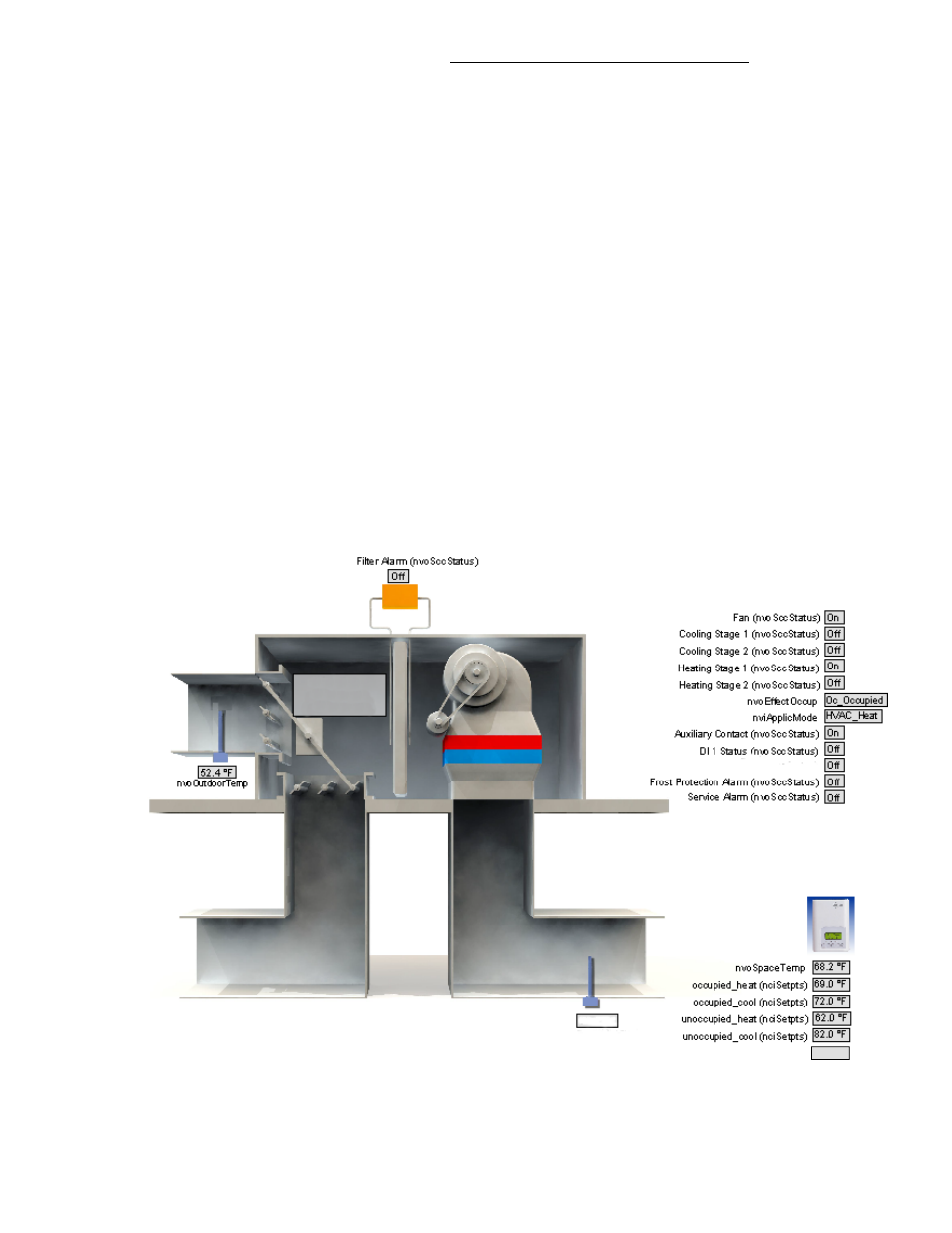

Figure 2: Graphical User Interface (GUI) example of a Roof Top Unit with dehumidification
Dehumidification Status (nvoRHStatus)
Supply %RH (nvoRHStatus)
43 %RH
Room %RH (nvoRHStatus) 38 %RH
