20
Integration – Typical Graphic User Interface (GUI) Objects
The following objects should be typically used in a GUI:
¾ Room Temperature (AV7);
¾ Occupied and Unoccupied Heat Setpoints (AV 42 and AV44);
¾ Occupied and Unoccupied Cool Setpoints (AV 43 and AV45);
¾ Outdoor Temperature (AV9);
¾ Supply Temperature (AI16) (If available);
¾ Occupancy Command (MV12);
¾ Effective Occupancy (MV34);
¾ System Mode RTU (MV14) or System Mode HPU (MV13);
¾ G Fan (BI25);
¾ Y1 Cool (BI26);
¾ Y2 Cool (BI27);
¾ W1 Heat (BI28);
¾ W2 Heat (BI29) or Reversing Valve (BI30);
¾ Economizer Output (AV22) (if available);
¾ Aux (BI24);
¾ DI 1 Status (BI31);
¾ DI 2 Status (BI 32);
¾ Frost Alarm (BI36) (if available);
¾ Filter Alarm (BI38) (if available);
¾ Service Alarm (BI39) (if available);
¾ Fan Lock Alarm (BI40) (if available);
(BI 38)
(AV22)
(BI 25)
(BI 26)
(BI 27)
(BI 28)
(BI 29)
(MV 12)
(MV 14)
(BI 24)
(BI 31)
(BI 32)
(BI 36)
(BI 39)
(AI 16)
(AV 42)
(AV 43)
(AV 44)
(AV 45)

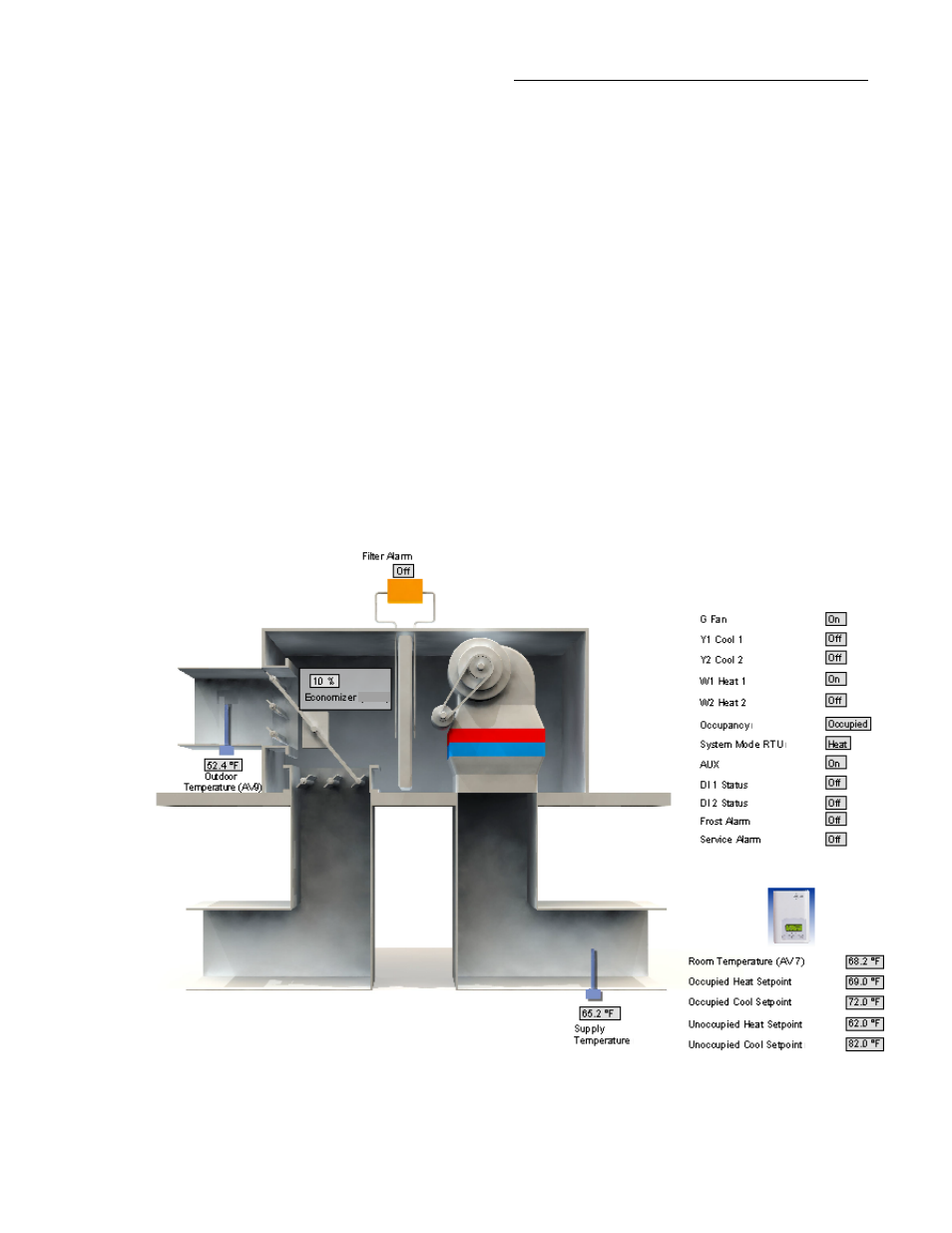

Typical GUI for a VT7605B5000B with Economizer control
