VT8000 Controller Replacement Guide
©
2
01
4 V
ic
onc
is
T
ec
hno
lo
gi
es
. A
ll r
ig
ht
s r
ese
rv
ed
.
BACnet Network
1. Remove security screw on bottom of Room Controller cover.
2. Open unit by pulling on bottom side of Room Controller cover (Figure 1).
3. Remove cover.
4. Open new VT8300/VT8350 Room Controller box and separate back plate from front plate.
5. Mount new front plate on existing back plate installed on the wall.
NOTE: Ensure small plastic projections at top of front plate align with notches at top of back plate.
6. Push on front plate bottom two corners to secure unit in place (Figure 2).
7. Wait for Room Controller to power up.
8. Use the table on earlier pages to re-configure your parameters such as sequence of operation, pipe number, occupied heating/
cooling setpoints.
9. Make sure Channel, Pan ID, and Com address match previous settings before replacement to bring Room Controller back online.

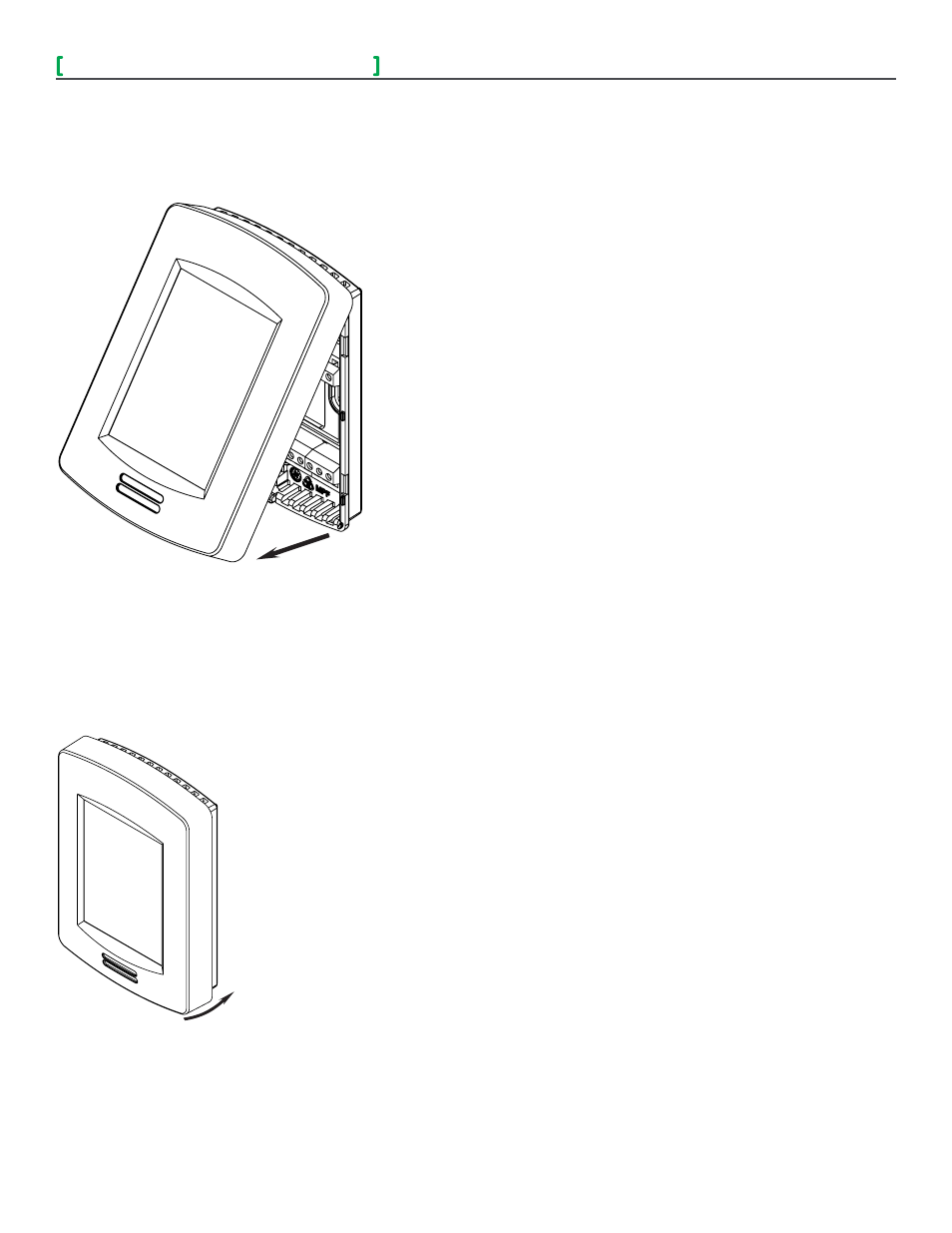

Figure 1 Cover
Figure 2 Secure Unit
