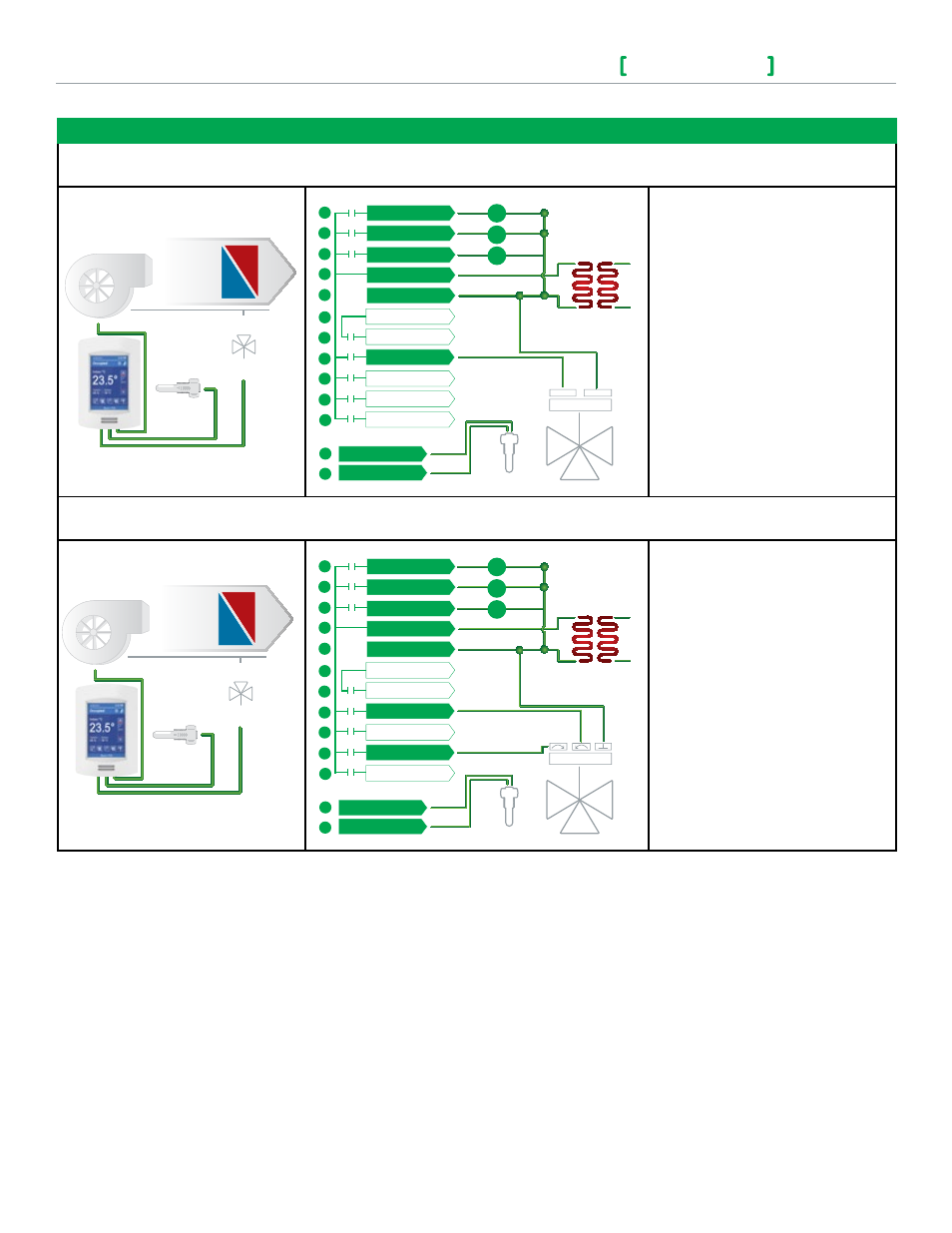

TyPICAL APPLICATIONS
Schematic
Wiring
Settings
2 pipe system cooling and/or heating
Control type = On / Off
Cooling / Heating
Valve
3 Speed Fan
Sensor
Normally Closed
On/Off
Room Temperature
Control Thermostat
BO2 - Fan L
BO3 - Fan M
BO4 - Fan H
RC (24 Vac)
C (Common)
RH
BO8 - Aux Heat
UO9 NC
UO10
UO11
UO12
24 Vac fan relays
24 Vac Transformer
HIGH
MED
LOW
SCom
UI 19 - UI13
Normally Closed
Optional supply water
temperature sensor
2
3
4
5
6
7
8
9
10
11
12
18
19
Mandatory
• Pipe no = 2 pipes
• CntrltTyp = On/Off
• Fan Menu = 0 (L-M-H)
• FL time = N/A
If
cooling only set::
• SeqOpera = 0 Cooling only
If
heating only set:
• SeqOpera = 1 Heating only
If
heat / cool auto-changeover with
a local water temperature sensor set:
• SeqOpera = 0 Cooling only
• UI3 = COS
2 pipe system cooling and/or heating
Control type = Floating
Cooling / Heating
Valve
3 Speed Fan
Sensor
Modulating Floating
Room Temperature
Control Thermostat
BO2 - Fan L
BO3 - Fan M
BO4 - Fan H
RC (24 Vac)
C (Common)
RH
BO8 - Aux Heat
UO9
UO10
UO11
UO12
24 Vac fan relays
24 Vac Transformer
HIGH
MED
LOW
SCom
UI 19 - UI13
Normally Closed
Optional supply water
temperature sensor
2
3
4
5
6
7
8
9
10
11
12
18
19
Mandatory
• Pipe no = 2 pipes
• CntrltTyp = Floating
• Fan Menu = 0 (L-M-H)
• FL time = as per actuator
If
cooling only set:
• SeqOpera = 0 Cooling only
If
heating only set:
• SeqOpera = 1 Heating only
If
heat / cool auto-changeover with
a local water temperature sensor set:
• SeqOpera = 0 Cooling only
• UI3 = COS
