VT8300 Series
Installation Guide
12
Viconics Technologies Inc.
|
9245 Langelier Blvd.
|
St.-Leonard
|
Quebec
|
Canada
|
H1P 3K9
|
Tel: (514) 321-5660
|
Fax: (514) 321-4150
028-0429-02
www.viconics.com
|
February 2015
©
20
15
V
ic
onic
s T
ec
hno
lo
gi
es
Inc
. A
ll r
ig
ht
s r
ese
rv
ed
.
Return to
home screen
Setup
Network
Configuration
Setpoints - Display
Service view
Test outputs
Discover Mode
The Controller
becomes discoverable on the wireless
ZigBee
®
network for 1 minute (this
button is hidden if ZigBee
®
settings are
not configured)

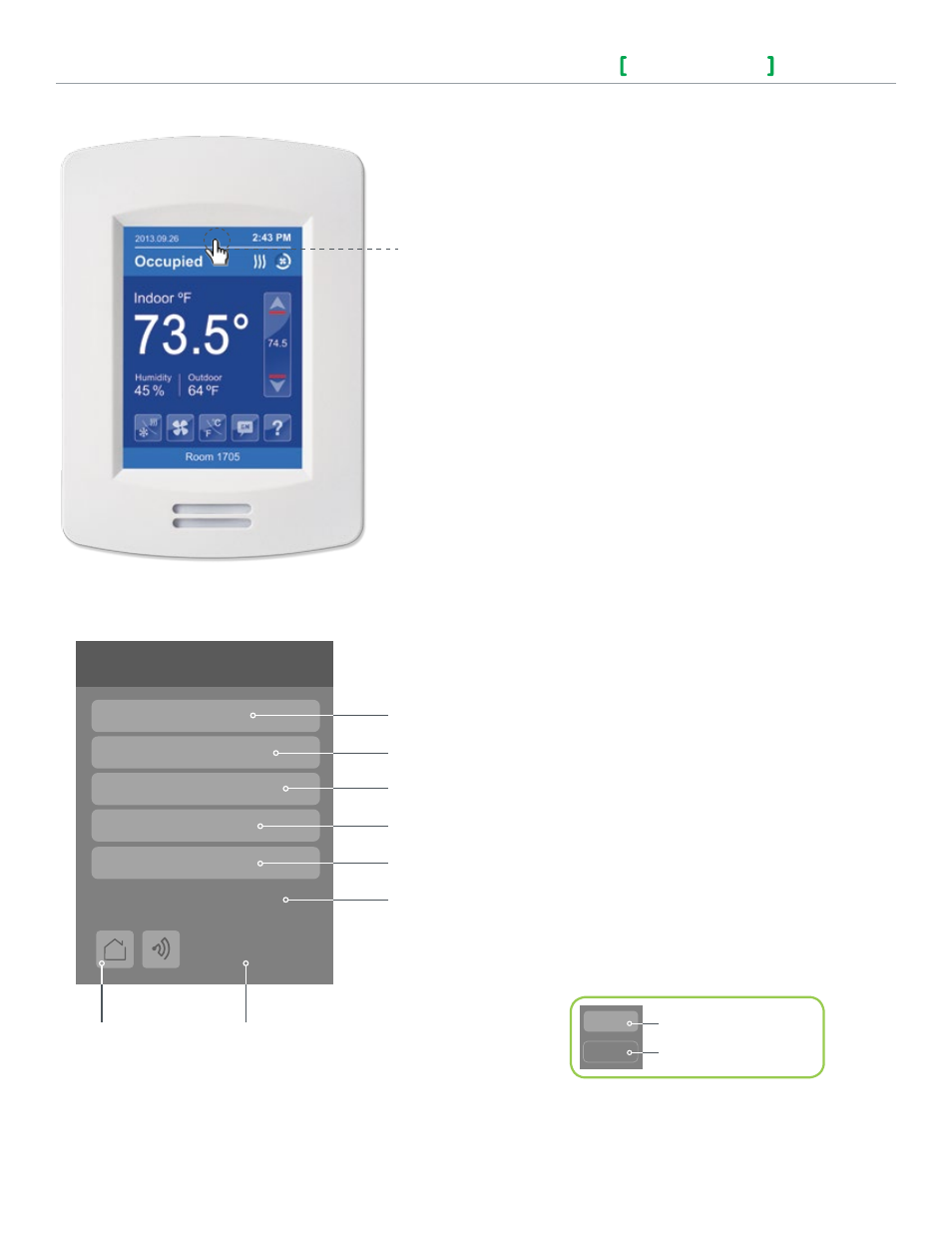

HOW TO ENTER SET-UP SCREEN
Touch and hold this point
for 3 seconds to enter set-up mode
SET-UP SCREEN dISPLAy
General Note:
Adjustable parameter
Non-adjustable parameter
Note: If a configuration/installer
password is activated to prevent
unauthorised access to the
configuration menu parameters, a
password entry prompt shows to
prevent access to device configuration
components.
Enter BACnet
®
& ZigBee
®
network settings
Enter parameter configuration menu
Enter setpoint & display settings
Enter output testing mode
Enter status and service view
For more information on using and
configuring the functions of the HMI,
refer to the following document:
VT8300 Series
Terminal Equipment Controller
User Interface Guide
Enter language selection
