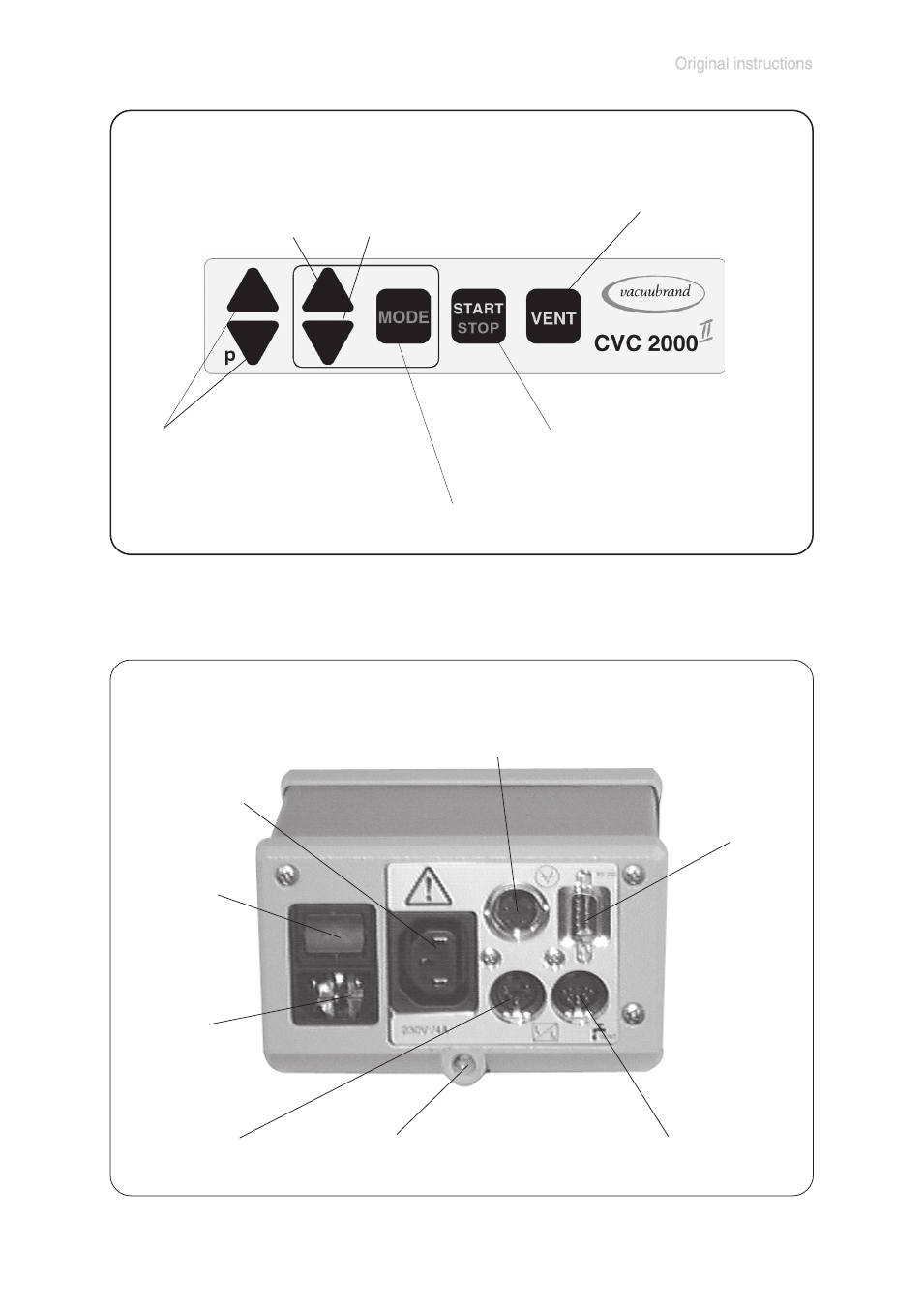

keys
• pressure setting (only pressure control)
• adapting process pressure
• ”key p
▲” or ”key p▼”
• setting of speed
• switching in programs
• ”key
▲” or ”key ▼”
• start or stop of process control
• confirmation of selected values or mode
• operating air admittance valve (only if
valve is connected and preselected)
rear side CVC 2000
II
• special function (in combination with another key)
connection power
supply frequency
converter
mains switch
connection
mains cable
female connector to connect
trip line frequency converter female connector to connect an
air admittance valve
serial interface
RS 232 C
female connector to connect
the gauge head VSK 5
thread M8 for stand rod
(included)
