page 111 of 145

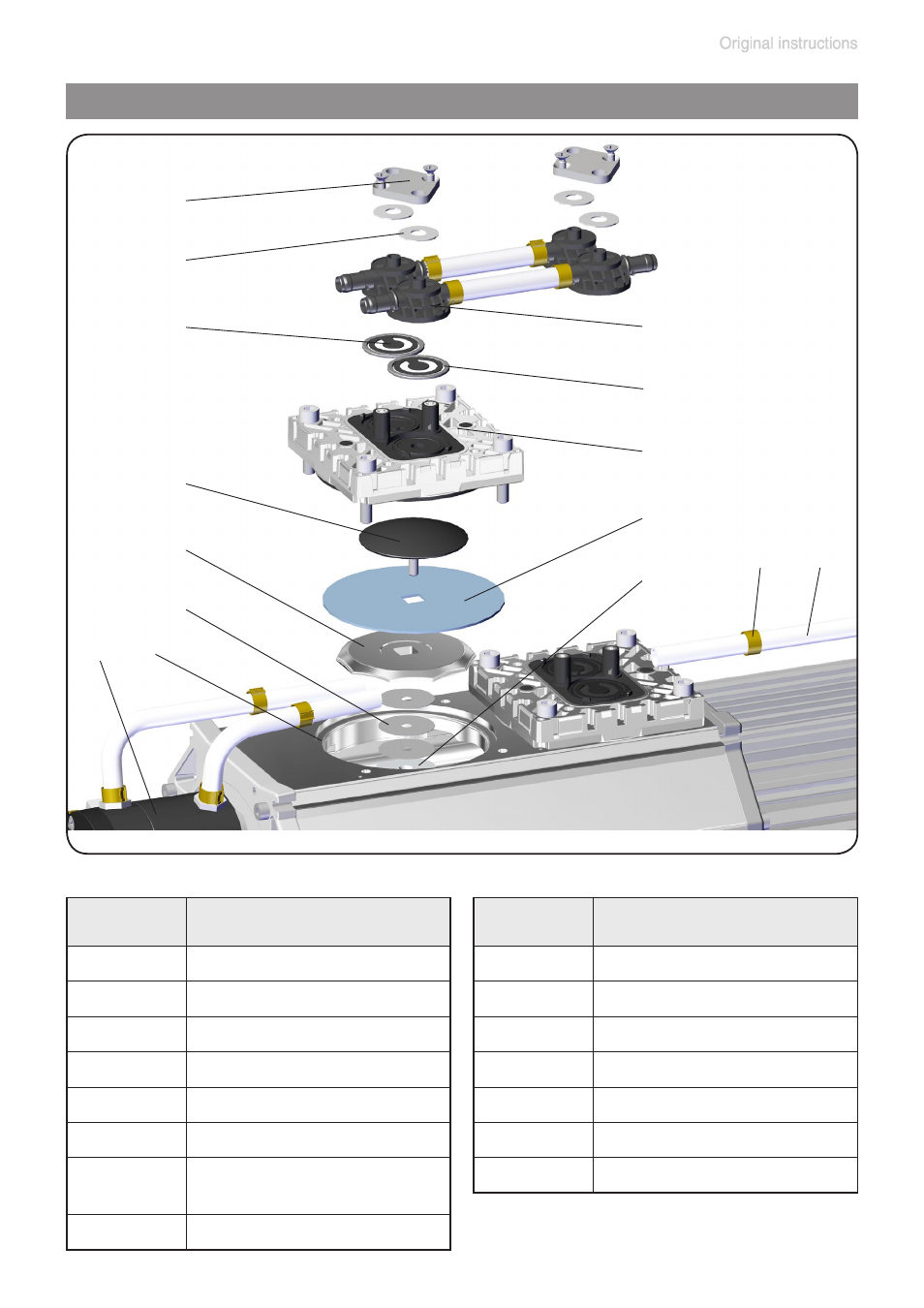

Checking diaphragms and valves

1

2

5

7

9

10

3

4

6

8

11

13

14

15

12

Position

Component

1

Clamping bracket

2

Disc spring

3

Valve head

4

O-rings

5

Valves

6

Head cover

7

Diaphragm clamping disc

with square head screw

8

Diaphragm

Position

Component

9

Diaphragm support disc

10

Washers

11

Connecting rod

12

Housing

13

Distributor

14

Hose clip

15

PTFE tube
