DAX-602/802 INSTRUCTIONAL MANUAL Ultra
★ Stereo Labs, Inc.

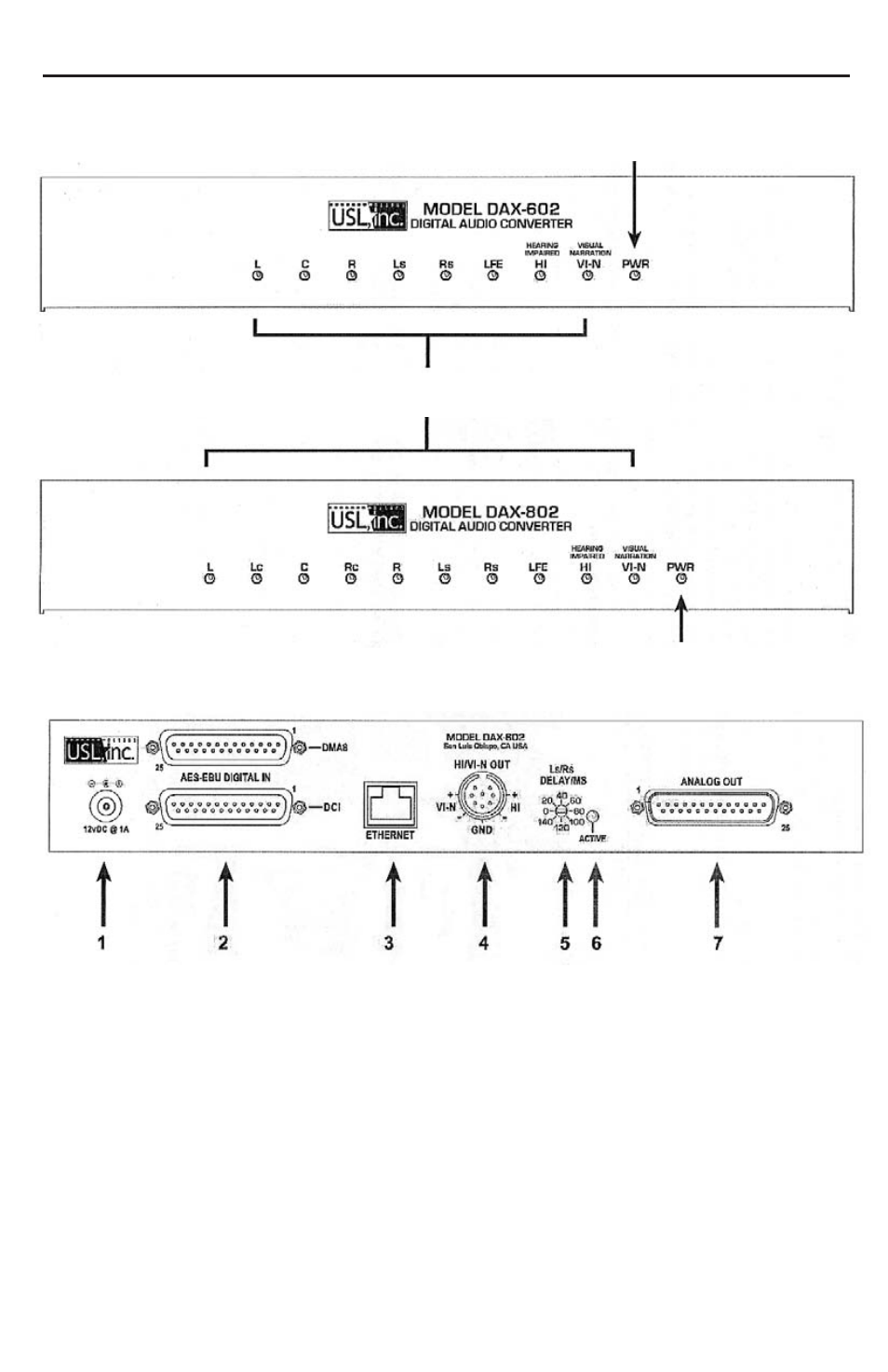

Power Indicator - Indicates when unit is powered on.
Signal Presence Indicators - indicates when signal exceeds - 30dB
Power Indicator - Indicates when unit is powered on.
1. Input Power - 12VDC @ 1 A power supply
2. Digital Input -AES balanced line input. Both DCI and DMA8 connector formats are
supported.
3. Ethernet Port - For communication with the user interface.
4. Hearing Impaired / Vocal Narration Output - Balanced or unbalanced line audio
output.
5. Surround Delay Select Switch -Allows the audio to be delayed.
6. Delay Active LED - Indicates when the delay switch is actual delay setting.
7. Analog Output- Sends balanced or unbalanced line audio outputs to the Cinema
Processor.
